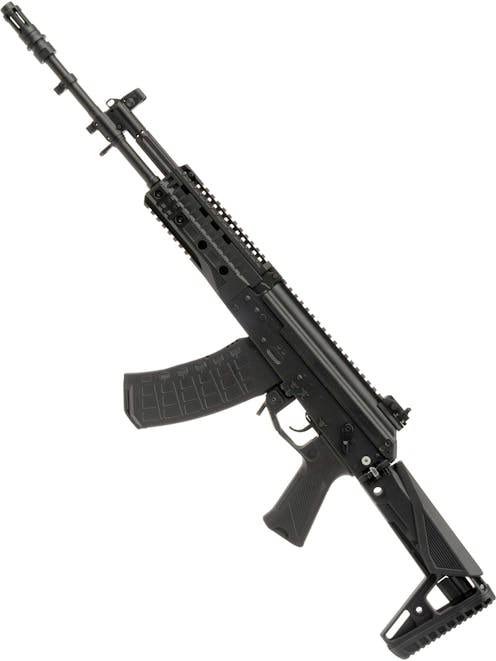

WELL PRO WE09 AK-12 AEG Rifle w/AK-205 Stock - Advanced Version

WELL PRO
Code: AK12-2
£159.99
  • High density polymer construction
  • 6.03mm Tightbore inner barrel
  • Pre-installed optical MOSFET

If AK platforms are right up your alley and you're in the market for an affordable AK-12 rifle with the added benefit of some borrowed design features from the funky AK-205, then the WELL PRO WE09 AK-12 AEG Rifle w/AK-205 Stock should definitely interest you! This updated version of the platform is styled after the latest AK-12 variants offered to civilian shooters, with improved ergonomics thanks to the new AK-205 stock and enhanced pistol grip.

This full high-density polymer AEG is lightweight and perfect for players who don't want tired arms after a day of carrying their rifle around. The polymer, however, does not mean that this AEG isn't durable. It will survive the tribulations of any skirmish with minimum cosmetic damage. The optical MOSFET is a nice addition to this AK-12 and allows the fire selector to be programmed for alternative modes of fire such as burst modes or binary trigger. This paired with the 6.03mm tightbore inner barrel allows for excellent accuracy potential straight out of the box.

Whether you are fixed on an AK-12 or you are contemplating the available AK platform options, the WELL PRO WE09 AK-12 AEG Rifle w/AK-205 Stock would make a fantastic, affordable and up-to-date primary for any modern Russian military or PMC loadout!

Full description

Description

This AK is the perfect complement to any Russian military attire. The general layout of this platform is based on the AK-12, currently one of the standard issue rifles within the Russian military, but WELL PRO have added their twist. This AK variant has design features taken from both the AK-19 and AK-205 and applied to this AK-12 receiver, it is certainly unique, that's for sure. All this makes for one seriously cool-looking AEG with some nifty functions that you wouldn't expect to see on an AK-12 variant.

Starting at the tip of the 16.3-inch steel outer barrel we find our first AK-205 twist that this rifle possesses. This AK-12 features an AK-205 birdcage-type hybrid flash hider. This is not the usual, aggressive muzzle break you would expect to find on an AK-12 but we appreciate the refreshing inclusion of this flash hider, no accidental poking and prodding from the usual spiky muzzle break! However, if you're not a fan of this alternate muzzle attachment you can find the 14mm CCW male threading concealed beneath (don't forget to unscrew the grub screw first before attempting to remove the compensator).

The muzzle attachment is followed by two dummy bayonet lugs at the bottom, they add to the realism and keep the gun nerds pleased. Travelling a further short distance rearward along the outer barrel brings us to the front sight/gas block of this AK-12, it is constructed from alloy and has a dummy gas adjuster at the front. The front sight post at the top is protected on either side with protective wings. This ensures that if you drop this replica rifle it may bear some cosmetic damage, but the front sight should remain usable and intact in all but the worst-case scenario.

The gas block connects to the dummy gas tube, which is also constructed from alloy. Below the gas tube, there is a single sling point which is mounted around the barrel but can swivel either side to reduce the chances of the sling getting tangled and allowing both left and right-handed shooters to sling this AK easily. This is a nice feature as a lot of AK platforms are usually constructed without left-hand shooters in mind, so it's good to see that the AK-12 features some sort of functionality for those lesser-spotted left-hand shooters.

Following the gas tube back leads us to the high-density polymer handguards of the AK-12, which have integral 20mm Picatinny rails at the 6 and 12 o'clock positions and adjustable alloy side rails at the 3 and 9 o'clock positions, these side rails can be moved along the handguard or removed completely. Though this rifle may be Russian in origin, it can be kitted out to the nines like an MK18, with plenty of room for tactical flashlights, PEQ lasers and anything else you can think of mounting. This is a nice deviation from the standard AK rail space we are used to, A.K.A, have fun trying to find any room to mount attachments!

Moving rearwards once more, we come to the receiver. This follows the standard AK design format in a way but has some notable discrepancies. Firstly, the fire selector is ambidextrous and can be used without removing your hand from the pistol grip, this replicates the one found on the real steel AK-205. It has similarities to a standard M4 fire selector except, when the AEG is taken out of safe, the steel dust cover is lowered. This would allow for the bolt carrier to fully retract on a real firearm but serves purely aesthetic purposes on this Airsoft replica. Safe, semi-auto and full auto are available straight out of the box, but these fire modes can be alternated with burst and binary trigger modes using the preinstalled optical MOSFET.

The receiver top cover design is another area of this AK-12 that diverts from the original design, it is based more on the AK-19 top cover. It is constructed from polymer and has a 20mm Picatinny rail on the upper surface to allow for optical sights to be mounted using far more user-friendly Western mounting solutions. Unlike some other AKs with railed top covers, this top cover can be fully detached to access the battery compartment. Pulling the steel pin located on the trunnion block unlocks the top cover from which you can slide it backwards and then remove it.

The battery compartment of the AK-12 is within the top cover and is ideally sized to fit AK long stick batteries, but can also house slimmer 7.4V 1300 mAh stick batteries designed for M4/AR-15 buffer tubes. It has a Deans style battery connector and we recommend a 7.4v 1200mAh LiPo Slim Stick Battery. When reinstalling the top cover you must ensure no wires get trapped, and that you align the pin hole in the front of the top cover with the holes in the trunnion block before pushing the steel pin back through. The top cover needs to be slid onto the receiver from the rear to connect with the two hooks at the rear of the lower receiver to hold it securely in place.

The AK-19 pistol grip is a slight ergonomic improvement over the legacy AK grip, offering textured detailing on all flanks of the grip. The grip is set at an angle that provides a comfortable wrist position when shooting with the stock collapsed fully and in other more modern shooting stances. AKs are not usually associated with comfort or ergonomics, so this is certainly a surprising but positive adjustment for us sensitive Westerners!

Installed on this version of the AK-12, we are treated to the AK-205 pattern of stock, a modern Russian design which follows the format of SCAR, ACR and other modern stocks, with the addition of an adjustable cheek rest to provide the perfect eye level when using a scope or sight with this AEG. Like the AK-74M stock, the AK-19 stock offers side folding functionality, allowing this AK-12 variant to fit into smaller gun bags and be transported with ease. At the base of the stock on both sides, we are treated to QD sling socket inserts constructed from steel, allowing for a slick modern QD sling setup to be mounted using QD sling swivels if you so choose.

The stock also offers length of pull adjustment via the lever at the toe of the stock, giving you 7 positions to choose from to compensate for bulky body armour vests or different body types. The butt plate is constructed from grippy rubber with an aggressively grooved surface, guaranteeing the stock won't slip off your shoulder during wet weather operations.

The stock folds similarly to a legacy AK-74 platform, making use of a push button on the left side of the receiver, just above the pistol grip. Pressing this button will defeat the locking mechanism and allow the stock to be folded to the side. To deploy the stock again, simply pull downwards on the metal tab that protrudes from the folding mechanism at the rear and the stock can be extended back into position. This stock is a lot easier to handle than an AK-74 stock, requiring only the folding mechanism to keep things in place instead of the protruding hook used on the AK-74.

Internally, this AEG has a great part-to-price ratio. It features 18:1 steel gears mounted on 8mm ball-bearing bushings, a version 3 gearbox with quick-change springs, a rotary hop-up unit and a polymer piston with a full steel toothrack. All this is great, but the star of the show is definitely the optical MOSFET, it uses optical sensors to allow for programmable fire controls, along with further improving the trigger response and rate of fire of the platform. The ETU allows you to set a 3-round burst instead of full auto and binary trigger instead of semi-auto, allowing you to improve long-range hit probability without wasting ammo by using full auto. This paired with the 6.03mm tightbore inner barrel, makes this rifle an absolute treat to fire.

For those who like to move fast and shoot even faster, the WELL PRO WE09 AK-12 AEG Rifle w/AK-205 Stock - advanced version will be an asset to your play style. Its combination of a MOSFET and 6.03mm tightbore inner barrel is very rare to find in an affordable out-of-the-box AEG, making the WELL PRO WE09 AK-12 AEG Rifle the perfect choice for those looking for an accurate great all-around lightweight AK style AEG.

Features

  • High density polymer construction
  • 6.03mm Tightbore inner barrel - Improved accuracy and FPS
  • 14mm CCW Male threaded barrel - Ready for a tracer unit or suppressor
  • 20mm Picatinny railed handguard - adjustable 20mm Rails at 6 & 12 o'clock
  • 20mm Picatinny railed receiver - Ready for a red dot sight or scope
  • Ambidextrous magazine release - Intuitive reloads for left or right-handed shooter
  • Ambidextrous fire selector switch - allows mode changes from a firing grip
  • Rotary adjustable HOP-up unit
  • Ergonomic pistol grip - Comfortable angle with textured flanks
  • Adjustable side folding stock - 7 Positions of adjustment, folds to the side for storage and transport
  • Ridged rubber butt plate - Grips the shoulder well, even when wearing body armour vests
  • Top wired: Deans/T-Plug battery connector - Recommended battery: 7.4v 1200mAh LiPo Slim Stick Battery
  • Programmable Optical MOSFET/ETU Functions:
    • 3-Round burst - Replaces full auto
    • Binary trigger - Replaces semi-auto
  • ETU Programming Instructions can be found below in "Special Instructions"
  • Version 3 GearboxProgrammable Optical MOSFET8mm Slide bearings
  • Polymer piston with a full steel toothrack

Package Includes

  • WELL PRO WE09 AK-12 AEG Rifle w/AK-205 Stock - advanced version
  • 180 capacity magazine

Special Instructions

Mosfet Programming Instructions:

To enter programming mode: Hold the trigger in the semi-auto position for about 6-7 seconds with your battery connected and the magazine removed. The replica will then enter programming mode. We advise wearing eye protection and pointing the replica in a safe direction throughout this process.

Folder selection: We have 3 Folders at our disposal. Which folder you are accessing will be denoted with a series of beeps:

Folder 1: 1x Beep
Folder 2: 2x Beep
Folder 3: 3x Beep

The MOSFET will scroll between these three folders when in programming mode. To select a folder, wait for the series of beeps denoting your chosen folder, then pull and hold the trigger.

Folder 1 controls the semi-auto fire selector position. The available modes are semi-automatic and binary trigger.

Folder 2 controls the full-auto fire selector position. The available modes are fully automatic and 3-round burst.

Folder 3 controls the Pre-cocking condition. The available modes are Pre-cocking off and Pre-cocking level 1.

Each folder includes 2 programmable modes. Once you have entered your chosen folder, the MOSFET will scroll between each mode, indicated by a series of beeps.

Folder 1 - Fire selector position 1

  • Mode 1 - One Beep: Semi
  • Mode 2 - Two Beeps: Binary

Folder 2 - Fire selector position 2

  • Mode 1 - One Beep: Full Auto
  • Mode 2 - Two Beeps: 3-Round Burst

Folder 3 - Pre-cocking level

  • Mode 1 - One Beep: Pre-cocking OFF
  • Mode 2 - Two Beeps: Pre-cocking level 1
  • Mode 3, 4 & 5: Higher Pre-cocking levels. These are NOT suitable for this DSG setup and will cause premature failure. Programming the MOSFET for modes 3, 4 or 5 constitutes user error and is not covered by our warranty.

When your chosen mode is indicated by the number of beeps shown above, pull and hold the trigger. The MOSFET will confirm your mode selection by beeping again the number of times indicated above.

Once you have completed the programming process, the MOSFET will exit programming mode automatically.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 325fps ± 10%, using 0.20g BB
Package
Included Items
  • Magazine
  • Cleaning Rod
  • Speed Loader
Skill Level Icon
User Skill Level
Regular Player
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.5kg
Weapon Length Collapsed
Length (Collapsed)
70cm
Weapon Length Extended
Length (Extended)
95cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Construction Icon
Construction
Alloy outer barrel, flash hider, sling point, gas block, dust cover, front iron sights. Polymer grip, stock, receiver, top cover, handguard and trigger guard. Steel dust cover plate, pins and screws.
Weapon Construction External
External Construction
Polymer
Alloy
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AK, AK Variant , Assault Rifle, AK-12,
Magazine Style Icon
Magazine Style
AK Platform, Long Gun Magazine, Assault Rifle,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Programmable
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Ambidextrous
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and held to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Railed Receiver
  • Ambidextrous Magazine Release
  • Ambidextrous Fire Selector
  • Bird Cage Flash Hider
  • Adjustable Cheek Rest
  • Ergonomic Pistol Grip
  • QD Sling Point
  • Muzzle Brake
  • Adjustable Stock
  • Side folding stock
  • 20mm Side rail
  • Aperture iron sights
  • Open Iron Sights
Rail System Icon
Rail System
20mm RIS / RAS , 20mm Railed Receiver, Pre-installed 20mm Picatinny rail sections,
Icon Stock Positions
Stock Setting
Sliding , Multi-Position , Folding ,
Weapon Length Extended
Stock Positions
7 Position
Sight Type Icon
Sight Type
Iron Sights , Aperture Iron Sight,
Sling Plate Icon
Sling Options
Stock , QD , Loop , Barrel,

Barrel

Outer Barrel Length (in)
17.3''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
450mm

Magazine Specific

Magazine Type
AEG
Magazine BB Capacity
Approx. 180 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V3 Gearbox
Wiring Icon
Gearbox Wiring
Top Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
325 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
27/09/2024

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
