- TITAN™ MOSFET
- For TM NGRS V2 Gearboxes
- Expert Firmware included
If you're fed up with your NGRS gearbox locking up when you slap out some double taps, the GATE TITAN™ V2 NGRS Rear Wired; Expert Firmware will cure it! This advanced MOSFET/ETU system replaces the copper trigger contact inside the standard NGRS V2 (aka Version 9) gearbox with optical sensors, eliminating the need for a cut-off lever, extending the lifespan of your AEG and offering unprecedented trigger sensitivity, fire mode and cycle control adjustment options.
The latest version of the TITAN™ V2 NGRS includes the Expert Firmware, meaning you have immediate access to the most advanced programming functions of the TITAN™ without needing to pay more to update the firmware. With the Gate USB-Link or Blulink, you can set your pre-cocking level for a speedy trigger response, adjust your trigger sensitivity, tune active braking and adjust the rate of fire for a truly custom setup that suits your playstyle perfectly. The usual programmable MOSFET functions of other ETUs are also present, including burst mode, binary trigger, semi-auto-only, ramping semi-auto, dual-stage trigger and sniper delay.
This is the Rear Wired version of the TITAN™ V2 NGRS, making it ideal for rear-wired M4, 416 and SCAR NGRS rifles. If you want to speed up your NGRS trigger, use LiPo batteries, run burst mode and protect its internals in the long run, the GATE TITAN™ V2 NGRS Rear Wired; Expert Firmware will give you what you need!
Fast Delivery
Delivery & Postage
Here at Patrol Base, we send all our packages from our Warehouse based in the UK with the exception of European Warehouse Items. All of our parcels are sent with specially picked couriers to ensure your parcels get to you on time and in one piece.
For more information please check out our Delivery Information Page.
Estimates
Below are some rough postage prices for orders. Please note these are subject to change and are only a rough guide. For a more accurate postage estimate please use the Postage Calculator at the basket.
UK Standard
£6.95
From
UK 24hr Dispatch
£8.95
From
Highlands / Islands
£24.99*
From
* Please note that Scottish Highlands, and Islands postage prices can vary wildly. Please refer to the Postage Calculator at the basket for the lowest possible price.
Returns
We want you to be absolutely happy with our products and services, so we provide the simple Patrol Base guarantee: if on receiving your item you are unhappy with your item for any reason then simply send it back to us. We will replace or refund the item.
You can return any item for any reason whatsoever, even if you have just changed your mind, within 14 days of receipt of the order. This is in addition to your rights under the Consumer Protection (Distance Selling) Regulations 2000.
For more information on returning products, and how to do it please visit our Returns Policy Page.
Description

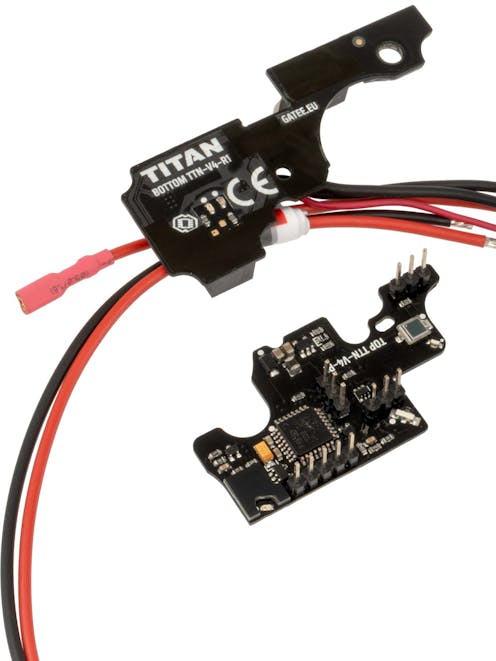

The Gate TITAN™ MOSFET is a complete trigger set replacement, with optical sensors instead of mechanical switches, high-end software and sensor-based sector gear detection, allowing some of the fastest and most efficient AEG builds imaginable. This, the NGRS V2 TITAN™ is designed for Tokyo Marui NGRS gearboxes used in the Tokyo Marui Next Generation Recoil Shock M4 series, NGRS 416, NGRS SCAR-L and NGRS SCAR-H.
This, the latest TITAN™ variant comes with the Expert Firmware pre-installed, meaning you have access to all the TITAN's advanced functions straight out of the box. These include trigger sensitivity adjustment, adjustable pre-cocking, rate of fire adjustment, adjustable active braking and much, much more!
The board is specially coated with Mil-Spec MIL-V-173C Varnish, making it moisture and fungus-resistant, and supports batteries in the range of 3V up to 17V, making it great for Ni-Mh, Ni-Cd, Li-Po, and Li-Fe Batteries and is compatible with most version 2 gearboxes on the market with no modification.
The TITAN™ board itself is built in the EU by Gate Electronics and comes with a 12-month manufacturer warranty for defects. The TITAN™ stands out from the crowd due to its use of an optical sensor-controlled system rather than a mechanical one, with eight onboard optical sensors tracking the movement of the trigger, gears, piston and fire selector.
The board boasts a huge array of features, with the most impressive being the auto-adjusting pre-cocking and braking system, using the on-board sensors to detect the position of the gearbox's gear teeth, allowing the system to get a perfect result with almost no configuration.
The TITAN™, once installed, is capable of very fast repeated semi-shots, with gearbox protection ignoring the trigger pull if the rifle is not ready, allowing for faster, more consistent shots compared to other units.
Once installed the MOSFET can be re-programmed via the USB-Link to a Windows-based PC or using the Blulink via a Bluetooth-compatible device, allowing the firmware to be updated, and troubleshooting to be carried out in case your platform develops a fault. What's important to highlight with the TITAN™, is that its strength lies not just in its list of features, but also in how well they have been implemented.
- Battery Support: 8.4V Ni-Mh, 7.4V LiPo, 9.6V Ni-Mh, 11.1V LiPo, 12.8V LiFe, 14.8V LiPo
- Operating Ranges: 3V - 17V
- User Guide:
- Downloads:
Features
- 12 Months Manufacturer Warranty
- Complete trigger set replacement kit
- Designed for highly efficient AEG builds
- Suitable for stock AEGs and upgraded AEGs
- Great for DMR and standard FPS setups
- Re-programmable with Gate USB Link or Gate Blulink
- Optical sensor controlled - No mechanical contacts
- Eight Optical Sensors
- 1 Gear Sensor
- 3 Selector Sensors
- 5 Trigger Sensors
- Replaces the Cut-off Lever
- Compatible with NGRS V2 Gearboxes used in TM M4 NGRS, 416 NGRS, SCAR-L/SCAR-H NGRS
- Rear Wired variant - Suitable for rear wired NGRS M4, 416 & SCAR AEGs
- Auto-Adjusting Pre-cocking / Braking system
- Works with Dual Sector Gear and Short Stroked Gears
- Detects up to 6 Trigger Positions for the Fine Tuning of the Trigger Breakpoint
- MILSPEC Board coating - Robust coating, prevents corrosion
- Adjustable Trigger Sensitivity - From a hair trigger to a realistic full trigger pill
- Adjustable Pre-cocking Boost - Super fast response in semi-automatic
- Adjustable Fire-Selector Mode - Loads of options!
- Adjustable Burst Mode - Improves hit probability when engaging moving targets
- Adjustable Rate of Fire - Great for maintaining realistic rate of fire
- Two-Stage Trigger Mode, Possible for Semi / Full Auto without using a Fire Selector
- Sniper Delay Modes - Tune your AEG up and use it as a sniper rifle!
- Run-away motor 30 rounds limit mode
- Protection for the TITAN unit against over current, under current, and overheating
- Low Battery Warning - Stops you damaging your battery or getting caught off guard
- Over-discharge battery protection
- Configurable Fire Selector
- Safe - Semi - Auto
- Safe - Semi - Semi
- Safe - Semi - Burst
- Safe - Burst - Auto
- Safe - Semi - Burst / Auto (Short Press - Burst, Long Press - Auto)
- Semi - Burst - Auto (Safe Mode via fast switch Safe - Semi - Safe)
- Kit comes with required parts for fitting (Please see Special Instructions)
- Deans connector type - Pre-wired
- Protection for Li-Po, Li-Ion, Li-Fe batteries
- Optical sensor test mode for easier installation
- Updateable firmware via USB-Link on a Windows / MAC PC
- Statistics and additional settings are accessible using a USB-Link or Blulink with the GATE Control Station app
- Can be diagnosed for errors using the USB-Link or Blulink
- UVP1 – your battery is discharged
- UVP2 – the voltage is lower than 3.8V
- OCP1 – over current protection
- OCP2 – the motor power supply circuit is shorted
- OTP – the drop-in module temperature is too high
- MOTOR DISC – you pulled the trigger but the motor did not move
- Smart fuse system - Prevents power surges and wiring damage
Package Includes
- GATE TITAN™ MOSFET V3; Expert Firmware
- Quick start Guides
- 'Titan Drop-In Module'
- Installation Kit
- Replacement Female Deans Connector Kit
- Screw and Shim Set x2
- Selector Plate Sticker Kit
Special Instructions
Should you need any help installing the TITAN™ MOSFET please feel free to contact us.
Please note that the warranty covers the unit from defects, not improper installation. Please read all user guides before installing, for more information please see the supplied Warranty Card.
Please remember when installing the device to ensure your AEG is clear before use.
Ensure that when wiring up the device the Positive and Negative battery terminals are the correct way around as this will cause immediate damage to the unit.
Please note, that battery protection is not compatible with Ni-Mh and Ni-Cd Battery
