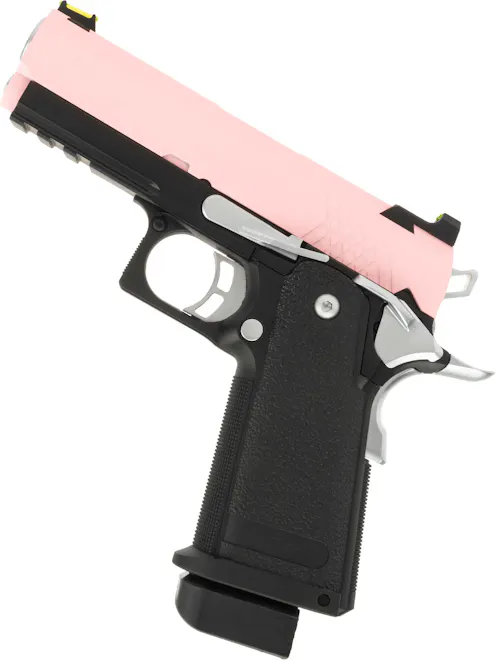

RAVEN Hi-Capa 3.8 Pro GBB Pistol

RAVEN
Code:
£64.99
  • Full metal construction
  • 6.03mm Tightbore inner barrel
  • Compact 3.8" Hi-Capa pistol

If you're into compact sidearms but want a stylish, custom look, the RAVEN Hi-Capa 3.8 Pro GBB Pistol should suit your needs. This full-metal Hi-Capa platform is as compact as Hi-Capas get, with a 3.8-inch outer barrel and shortened slide, resulting in improved gas efficiency, slide speed and a faster draw from a holster.

This 3.8 Pro is available in either tan, grey or pre-two-tone pink, giving your sidearm a side of style or pizazz to make it pop next to boring black pistols. When it comes to sights, the 3.8 Pro is remarkably well-equipped, boasting light-enhancing iron sights with green inserts, ideal for fast target acquisition and minimal view interruption. As with other RAVEN Hi-Capas, the 3.8 Pro is also rocking a 6.03mm tightbore inner barrel, giving you an accuracy edge that you wouldn't typically expect for a platform of this price!

Full description

Frequently purchased with this pistol...

Description

If you want the classic Hi-Capa style but are searching for something more compact, the RAVEN Hi-Capa 3.8 Pro GBB Pistol is exactly what you need! This pistol combines the 'Capa styling and customisation options with a compact, Glock 19-like size. As with all RAVEN Hi-Capas, we are treated to a full metal build with a 6.03mm tightbore inner barrel pre-installed, giving you an impressive out-of-the-box platform for a remarkable price.

Starting at the tip of the outer barrel we can find 12mm CW female barrel threads, allowing you to mount a tracer unit or suppressor with the addition of a VORSK or RAVEN thread adapter. If you decide to run a tracer or suppressor, we recommend going for the shortest and lightest you can find such as the FLARE M to avoid hindering the gas efficiency of the Hi-Capa 3.8 Pro.

Moving rearwards, we come to the shortened Hi-Capa slide, which features light-enhancing front and rear open iron sights with green inserts for a perfect sight picture which is easy to acquire quickly, standing out well in all but the darkest conditions. The slide itself is beautifully finished and gives the pistol a glamorous look that will turn heads on the skirmish field.

Moving down to the frame and pistol grip we can find the controls of the Hi-Capa 3.8 Pro, identical to other Hi-capa models from RAVEN and very well placed for easy operation. The ambidextrous manual safety sits right beneath the shooter's thumb for fast access, and the extended slide release can also be reached from a firing grip. The manual safety locks the trigger and hammer, preventing the pistol from firing, but this obviously only works when the hammer is cocked.

The Hi-Capa pistol series features an extra level of safety in the form of the beavertail grip safety; a proven design which dates back to the original American pistol, the 1911. This safety prevents the pistol from firing if the grip safety is not pressed, meaning you will never have an accidental discharge from snagging the trigger on gear. Like the manual safety and slide lock, the beavertail safety is also finished in either gold or silver, depending on the variant you choose, adding some exciting contrast to the design.

At the front of the alloy frame, we can find a 20mm Picatinny pistol rail, ideal for mounting small tactical flashlights and lasers, bearing in mind, the tiny nature of this pistol. The magazine release can be found on the left side of the grip and is a slightly raised design which is easy to hit, but not so easy that you can accidentally drop your magazine in the heat of a firefight!

Both the hammer and trigger of the Hi-Capa 3.8 Pro have a skeletonised design, reducing the weight of the pistol to only what is necessary for optimal performance. The pistol grip of the Hi-Capa design is a modular part, separate from the alloy frame, and is made from textured polymer for excellent gripping qualities. This part can be swapped out for aftermarket Hi-Capa grips if you prefer something a bit more interesting but its gripping texture and slightly flared magazine well make the standard grip more than adequate for the job.

Performance-wise, this pistol is incredible considering its low price point. The cyclic rate is excellent due to its shortened, weight-reduced slide. The 3.8 Pro even outpaces the other RAVEN and VORSK Hi-Capa offerings because of the combination of the shorter slide and the massive gas reservoir within the Hi-Capa's full-sized magazine providing ample propellant for all 23 rounds and then some! Like the other Hi-Capas from RAVEN, the 3.8 Pro features a 6.03mm tight bore inner barrel, granting it exceptional accuracy for a pistol of this size.

If you're already equipped with a RAVEN or VORSK Hi-Capa and a full loadout of magazines but want a more compact alternative, the RAVEN Hi-Capa 3.8 Pro GBB Pistol is exactly that. This mini 'Capa saves weight, improves gas efficiency and is faster to draw than the original with the same holster and mag compatibility, ideal for those who want to reduce weight on their belt for more in-game agility!

Features

  • Full metal construction
  • Hi-Capa 3.8 barrel/slide/frame length - A compact version of standard Hi-Capa pistols
  • 6.03mm Tightbore inner barrel - Improved accuracy potential
  • 12mm CW Female threaded outer barrel - 14mm CCW Male thread adapter
  • 3.8-inch outer barrel with .45 ACP engraving - Stylish custom looks straight out of the box!
  • Green light-enhancing front iron sight - Easy to pick up in low light, great for instinct aiming
  • Ported slide - Weight reduced, gives you a glimpse of the spiral fluted outer barrel
  • 20mm Picatinny frame rail - Compact rail, perfect for an aiming laser or tactical flashlight
  • Gear adjustable HOP-up unit - Accessible when the slide is removed
  • Skeletonised trigger and hammer - Adds to the custom styling and reduces overall weight
  • Extended slide release lever - Easily within reach when the pistol is held in a firing grip
  • Beavertail grip safety - Prevents the pistol from being fired when gripped incorrectly
  • Flared magazine well - Allows for easier "eyes-up" reloads
  • Textured pistol grip - Grippy and comfortable with or without gloves
  • Compatible with Hi-Capa retention holsters
  • Compatible with VORSK and RAVEN Hi-Capa magazines

Package Includes

  • RAVEN Hi-Capa 3.8 Pro GBB Pistol
  • 23rnd Green Gas Magazine
  • Raven PVC Patch
  • Spare Nozzle

Specification

General

Weapon Construction External
Weapon Type
Pistol
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Spare Nozzle
  • PVC Patch
Skill Level Icon
User Skill Level
Starter, Regular Player,
Patrol Base - Warning Icon
Warnings
Lubrication is required

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 0.46kg
Weapon Length Collapsed
Length (Collapsed)
19cm

Construction

Colour Wheel Greyscale
Primary Colour
Grey, Tan , Pre Two-Tone Pink,
Colour Wheel Greyscale
Secondary Colour
Black
Two Tone Icon
Pre Two-Toned
Yes
Construction Icon
Construction
Alloy slide, outer barrel, red dot sight mount, frame, magazine well flare & controls. High density polymer pistol grip. Steel screws and recoil rod
Weapon Construction External
External Construction
Polymer
Alloy
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Green Gas
Blowback Icon
Blowback
Gas Blowback
Weapon Platform
Pistol, Hi-Capa,
Magazine Style Icon
Magazine Style
Pistol Magazine, Hi-Capa,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Weapon Safety Features Icon
Safety Features
Beavertail, Trigger Lock,
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
On the outer barrel, accessible when the slide is removed and the pistol is in field stripped condition.

Furniture

Weapon Furniture Icon
Furniture
  • Ambidextrous Safety
  • Textured Pistol Grip
  • Light Enhancing Iron Sights
  • 20mm Pistol Rail
  • Threaded Outer Barrel
  • Beavertail Safety
  • Skeletonised Trigger
  • Skeletonised Hammer
  • Enlarged slide release catch
Rail System Icon
Rail System
20mm RIS / RAS , 20mm Pistol Mount ,
Sight Type Icon
Sight Type
Iron Sights , Light Enhancing Open Iron Sights,
Sling Plate Icon
Sling Options
Lanyard Loop

Barrel

Outer Barrel Length (in)
3.8''
Icon Thread Type
Outer Barrel Thread Type
Female
Icon Thread Direction
Outer Barrel Thread Direction
CW (Clockwise)
Outer Barrel Thread Size
12mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
96mm

Magazine Specific

Magazine Type
Gas, Low Capacity ,
Magazine BB Capacity
Approx. 23 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top, Front,
Magazine Gas Fill Location
Bottom
Magazine Gas Type
Green Gas

Gas Gun Specific

Gas Can Icon
Gas Compatability
Summer Gas, Green Gas, Red Gas,
Gas Can Icon
Gas Recommendation
Green Gas

Pistol Specific

Construction Icon
Slide Material
Alloy
Icon Pistol Slide
Pistol Slide Type
Standard

Product Testing Data

Notepad Icon
Test Description
FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG Blaster BBs & VORSK V6 Green Gas
Notepad Icon
Test Date
11/06/2024

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
