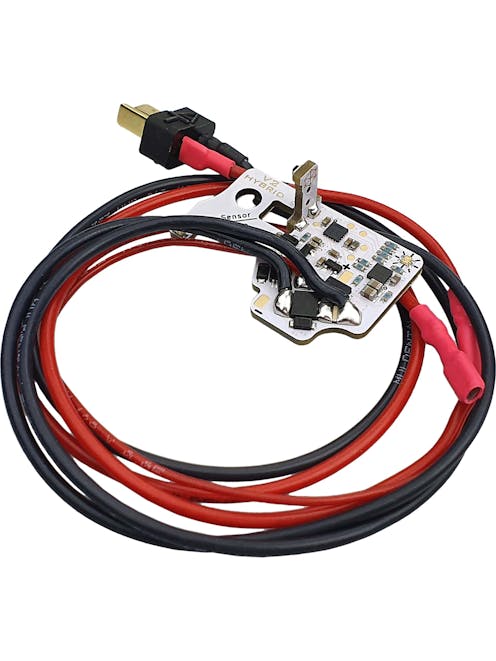

Perun MOSFET V2 Hybrid, Rear Wired

Code: HB-V2-BW
£79.99
  • Optical MOSFET
  • Programmable fire controls
  • For Version 2 gearboxes

If you plan to upgrade your M4/AR-15, SMG-5 or G3 AEG with a high-end MOSFET filled to the brim with programmable features, the Perun MOSFET V2 Hybrid, Rear Wired is what you want! This optical MOSFET/ETU system replaces your conventional trigger contacts with optical sensors, improving trigger response and reliability while adding an absolute litany of programmable fire mode and MOSFET functions.

Fire mode options include burst modes of varying duration, reconfigurable fire selector positions, semi-automatic only, DMR/sniper delay, binary trigger and two-stage trigger. The V2 Hybrid also offers adjustable trigger sensitivity, adjustable active braking, pre-cocking with spring release and DSG mode, a specific mode for Dual Sector Gear setups. Make no mistake, the V2 Hybrid is every bit as advanced as its rivals with the added benefit that all of the programming can be carried out using the fire controls of your AEG, with no need for PC or app connectivity!

Full description

Help
Size guide

Description

If you want your AEG to have more computing power than the space shuttle, the Perun MOSFET V2 Hybrid, Rear Wired is a great place to start! This advanced optical MOSFET/ETU system replaces the trigger contacts in any version 2 AEG gearbox and provides improved trigger response and rate of fire via its electrical efficiency gains and adds in a wealth of programmable fire mode and MOSFET function options.

With the V2 Hybrid MOSFET, all of the programming is carried out on the trigger and fire selector of whichever version 2 gearbox equipped AEG it's installed in. This means you don't need an app or anything extra to use the V2 Hybrid to its fullest extent and quick-fire mode changes in the field are easily done.

When it comes to fire modes, you have the option of setting burst modes of various durations, binary trigger, semi-auto only, two-stage trigger and DMR/sniper delay, along with configuring the selector switch however you like. Other programmable functions include adjustable trigger sensitivity with 5 different sensitivity levels, adjustable active braking, pre-cocking mode with a spring release function and DSG mode, intended for use with Dual Sector Gear setups.

The V2 Hybrid also keeps your battery protected and emits a warning beep when the voltage drops below a safe level, giving you a handy cue to head to the safe zone and switch batteries before it costs you a critical kill. The smart fuse function protects against power surges and the diagnostic mode will warn you if something isn't quite right and give you some hints as to where to start troubleshooting.

Like all MOSFET/ETU systems, we only recommend the Perun V2 Hybrid for those who are willing to get their hands dirty and knowledgeable enough to install this delicate optical ETU properly. That said, the Rear Wired version of the V2 Hybrid is pre-wired with motor spade connectors and a Deans/T-plug battery connector, saving you some time and hassle with the soldering iron.

Features

  • Optical MOSFET - Uses optical sensors to track trigger/selector movement
  • Programmable functions - All done on the trigger and fire selector, no app needed!
  • For Version 2 gearboxes - Fits M4/AR-15, SMG-5 & G3 AEGs
  • Pre-wired: Rear wired with motor spade connectors and a Deans/T-Plug battery connector pre-installed
  • Programmable fire modes:
    • Semi only
    • Binary trigger
    • Burst mode
    • Two-stage trigger
    • DMR/sniper delay
  • Other MOSFET functions:
    • Adjustable trigger sensitivity
    • Adjustable active braking
    • Pre-cocking with spring release
    • DSG mode
    • Smart fuse
    • Diagnostics
    • Low voltage alarm

Package Includes

  • Perun MOSFET V2 Hybrid, Rear Wired

Specification

General

Parts & Accessories Type
Electric Internal Parts
Internal Part Type
MOSFET
Patrol Base - Warning Icon
 Warnings
Patrol Base - Warning Icon
 Parts Fitting
Patrol Base - Warning Icon
 Unique Part
Custom Parts

Part Specific

Part for Power Source Type
Electric
Package Includes
MOSFET

Electric Part Specific

Gearbox Icon
 Gearbox Version
V2 Gearbox
Gearbox Version Compatibility Variant
Version 2

Size guide

Parts Fitting

Upgrades and Downgrades should only be undertaken by experienced players, or Airsoft Technicians. Please note, changing any internal parts of a weapon voids its warranty unless done in-house by our staff.

Please ensure that when fitting parts the part purchased is the correct part, as once a part has been fitted we cannot accept return.

We do know that players love to tinker, so we're here to give you help should you require it, and if needed you can get in touch with our workshop for more help!

Unique Parts

Please note that some parts may be unique to a specific brand of weapon. For example: Parts for an ASG M4A1 may not fit an ICS M4A1.

Parts from the same brand typically have a high chance of fitting, though be warned, some replicas use unique parts, so please ensure the part will fit before you attempt to fit it.

If you require help with fitting any parts feel free to get in touch with us via our Contact Us Page.
