NUPROL Delta Pioneer SOPMOD M4/AR-15 AEG

NUPROL
Code:
£109.99
  • 6.03mm Tightbore inner barrel
  • Available in RIF or Pre Two-Tone
  • High torque motor pre-installed

If you're just getting into Airsoft and prefer a military-style primary, set your sights on the NUPROL Delta Pioneer SOPMOD M4/AR-15 AEG! This CQBR (Close Quarters Battle Receiver) style replica is constructed predominantly from high density polymer with an alloy outer barrel, front sight and handguard mounting hardware along with steel trim parts. This keeps the build lightweight and ideal for younger skirmishers or those with a speedy, aggressive playstyle!

Though it may be mostly polymer, this isn't the usual shiny "super-soaker" tier stuff; this is nylon fibre-reinforced polymer, the kind that may well outlast alloy when it comes to endurance. Inside, we are equipped with an alloy version 2 gearbox with 18:1 ratio steel gears running on 8mm ball bearing bushings and driven by a 21K RPM high torque motor; a competitive feature set for a platform at this price!

The inner barrel is also a 6.03mm tightbore paired with a 50° HOP-up bucking and rotary HOP-up unit, ensuring you can reach out and engage at longer ranges with an accuracy advantage using high quality BBs. If your tastes dictate a military style primary and you need something cheap but effective to get started, the NUPROL Delta Pioneer SOPMOD M4/AR-15 AEG is a fantastic choice!

Full description

Description

If you're looking for a military-style M4 replica at an affordable pricepoint, the NUPROL Delta Pioneer SOPMOD M4/AR-15 AEG is a great shout! Based on the real steel CQBR (Close Quarters Battle Receiver) configuration of the M4A1 rifle, this AEG is the perfect base gun for many iconic military style setups, from the L119A1 of the SAS/SBS to the MK18 MOD 0 of the US Navy SEALs.

Like the other replicas of NUPROL's Delta Pioneer range, the M4/AR-15 SOPMOD is constructed with an alloy outer barrel, alloy and steel trim parts and a high density polymer body, buffer tube and handguard. This keeps the build light and agile without compromising on strength thanks to the nylon fibre reinforced polymer formula. All parts are M4/AR-15 AEG standard when it comes to compatibility, meaning external and internal upgrades are practically unlimited. Whether you want a longer barrel, a change of handguard, a metal receiver or a slimline stock, these are all an option with this highly versatile build!

Inside, you'll find the proven version 2 gearbox made with an alloy shell, 18:1 ratio steel gears running on 8mm ball bearing bushings and a quick change spring system. The inner barrel is a 6.03mm tightbore example, offering enhanced accuracy and a slight FPS boost thanks to air-efficiency improvements over the standard 6.08mm bore. Also inside is a 21,000 RPM high torque motor, providing a respectable rate of fire and a snappy trigger response in semi-auto!

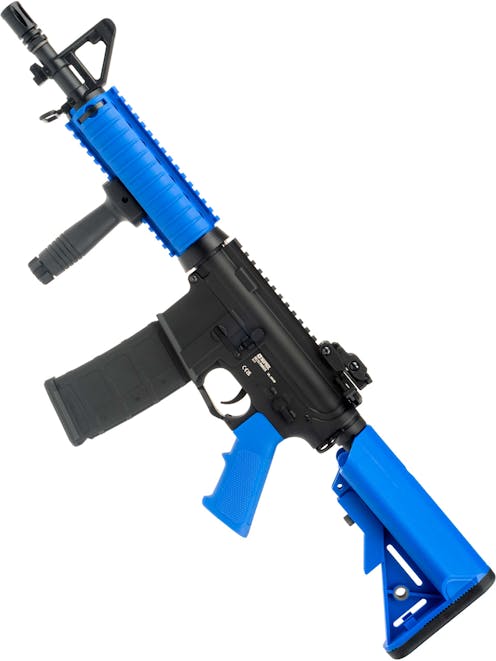

The SOPMOD is available in 3 colour options, including Pre Two-Tone blue for those who don't yet have a UKARA or site membership. If you need a military style AEG which is lightweight but strong with reliable internals and a massive aftermarket of parts and accessories, the NUPROL Delta Pioneer SOPMOD M4/AR-15 AEG is a great choice!

Starting at the front, we can see a birdcage flash hider mounted to the 14mm CCW male threading at the tip of the 10.5-inch alloy outer barrel. This means the M4/AR-15 SOPMOD is ready to be kitted out with a tracer unit or suppressor, or an alternative muzzle device for a more customised look. If you are going for an MK.18 MOD.0 look, add this suppressor if you are going silent!

Next up, we come to the M4A1 style triangular front sight post, which houses the front sight and mock bayonet lug. The bayonet lug is non-functional in the CQBR configuration due to the shortened 10.5-inch outer barrel, though if you want to add one you can mount a 4.5-inch barrel extension to allow for it. The front sight itself is adjustable for elevation using an M4/AR-15 front sight adjustment tool, and for less precise work up close it can be used as an index point for rapid aiming when there is no time to align the sights.

Mounted to the bottom of the front sight assembly we have our first sling point, which is a standard alloy footman loop compatible with a wide variety of sling types. This can be paired with any of the 3 rear sling mounting options to fit a two-point rifle sling to take the burden off your arms or allow for easy transitions to a sidearm. The perk of a relatively old-school design is that all the sling points are built in, meaning no extra adapters are needed!

Following the front sight, we come to the handguard assembly which is constructed from a combination of alloy, steel and high density polymer. The KAC RAS style handguards themselves are polymer and are equipped with 20mm Picatinny rails at 3, 6, 9 and 12 o'clock, ready for your mission essential kit to be mounted. The handguards are held in place using a steel handguard cap at the front, and an alloy delta ring at the rear. The handguards are made in two parts, allowing you to remove the lower handguard and mount an M203 launcher to the barrel for some extra firepower.

The modularity of the M4 platform is easily its best feature, and it is no surprise that it gained the nickname "Barbie for men" following its "SOPMOD Block 1" upgrade. This modularity also extends to exchanging external parts, and with an M4/AR-15 armourers' wrench, you can change the entire front set of the M4/AR-15 SOPMOD and make it look like practically any M4/AR-15 variant out there. Even if you don't have an armourers' wrench, the delta ring front end is compatible with any 7-inch drop-in rail system or handguard set for delta rings, so if you want to change up the looks of your M4/AR-15 SOPMOD you'll be happy to learn that it can be done without a single tool!

Moving rearward we reach the receiver, which is a familiar M4/AR-15 layout and is constructed from high density polymer with a matt black finish. The fire selector is located on the left side of the AEG and sits directly above the pistol grip to provide fast and easy access for right-handed shooters. The fire selector has a 90-degree throw between modes, making it quick to operate but not too easy to accidentally knock it and end up in the wrong fire mode. Each fire mode is indicated with recessed markings reading SAFE-SEMI-AUTO.

At the centre of the left side of the receiver, we can find a dummy bolt release catch which doesn't have a function in an Airsoft AEG but is included to keep the externals looking realistic. The bolt release is a separate part which is a nice touch to avoid the tell-tale signs that this is an Airsoft gun and not the real deal. Over on the right side of the receiver, we can see what is known as the forward assist button, located on the upper receiver behind the mock shell deflector. This button also has no function but serves to force the real M4/AR-15 bolt carrier into battery if it fails to close due to dirt ingress. The button can be pressed and is a separate part, showing that NUPROL, like most Airsofters, values the realistic look!

The magazine release is on the right side of the magazine well and is ideally positioned to be pressed with the trigger finger from a firing grip for right-handed users. Left-handed users can use their support hand thumb to press the release, and this can be done quite fast with a little practice. The surface of the mag release is textured to provide the necessary gripping qualities, and is protected from accidental presses by the "magwell fence", a raised protrusion in the receiver which stops the mag release from catching on your gear as you move.

The adjustable HOP-up unit is located inside the mock ejection port over on the right side of the upper receiver. This device allows you to adjust the amount of backspin applied to your BBs and tune the M4/AR-15 SOPMOD for your ammo weight of choice, looking for the flattest possible trajectory. The Rotary HOP-up adjuster can be accessed by holding the charging handle back, after which the dust cover will spring open and the mock bolt plate will retract. The rotary HOP-up design is known as the latest and greatest for M4 AEGs, and it is always nice to see up-to-date internal parts, even in reasonably priced platforms like this.

The pistol grip of the SOPMOD is an M16A2/M4A1 style pistol grip, also known as the "A2" finger ridged grip, the realistic choice for an M4A1 CQBR replica. The A2 has diamond checkering on either side and linear texture on the back strap to provide excellent gripping qualities whether you wear gloves or not. The finger ridge is designed to help you keep hold of the rifle and prevent the grip from slipping out of your hands when held in a single hand. As with most M4/AR-15 AEGs, this grip is compatible with aftermarket M4/AR-15 AEG grips, ideal for customisation addicts!

The trigger itself is a curved "milspec" design, just like a real M4 rifle and the trigger guard is enlarged to provide easy access to the trigger when wearing full-finger gloves. This trigger guard is removable and interchangeable with M4/AR-15 AEG trigger guards, meaning if you prefer the plain Jane flat trigger guard you can always swap it out!

Following the receiver, we reach the AR buffer tube, which is a common part found on the vast majority of M4/AR15 AEGs. This buffer tube is constructed from the same tough high density polymer as the receiver and provides 6 positions of adjustment, enough to suit any body type or loadout. The buffer tube system allows you to swap your stock out for any aftermarket M4/AR-15 stock simply and quickly. If you fancy a change or get tired of the M4/AR-15 SOPMOD's looks in the future, the option to switch out the stock means you have access to the widest variety of aftermarket stock options out there!

Between the receiver and buffer tube, we are treated to an ambidextrous sling plate constructed from steel for maximum strength. This plate allows a single-point sling to be mounted on either the left or the right side of the platform but can be paired with a front sling point (not included) mounted to the 20mm top rail to fit a two-point sling if that is your preference.

At the rear of the receiver, we come to the venerable M4/AR-15 buffer tube, constructed from strong high density polymer and offering 6 length-of-pull adjustment positions for the crane stock. To adjust the stock, simply press the adjustment lever on the bottom and slide it into your position of choice. This allows body armour users to adjust for a comfortable stance and suits shooters of all body types. If you ever feel like changing up the looks of your SOPMOD, you'll be happy to learn the buffer tube accepts almost all M4/AR-15 AEG sliding stocks!

The battery compartment is inside the crane stock, accessible by squeezing the two tabs at the toe of the stock together, after which you can lift the butt plate off, remove the battery plug and make use of the stock's built-in battery compartment to house a nunchuck/crane-style battery. For the NUPROL Delta Pioneer SOPMOD, we recommend a 7.4V 1450mAh LiPo crane/nunchuck battery for an easy fit and great performance.

The Crane stock also includes a pair of QD sling sockets, one on each side, allowing for QD sling swivels to be added for a quick removable sling setup. Conventional sling slots (aka "footman loops") are also present for those who want a two-point sling but prefer the old-fashioned way. The butt plate is also made from grippy rubber, ensuring your M4/AR-15 SOPMOD doesn't slip off your shoulder at a critical moment.

Inside, the Delta Pioneer SOPMOD is remarkably well equipped for a beginner platform, based around the common version 2 gearbox with full aftermarket compatibility. The gears are made from steel with an 18:1 ratio and they run on 8mm ball bearing bushings for a smoother gearbox sound and reduced stress on the alloy gearbox shell. The pre-installed motor is a 21,000 RPM high torque example, providing a respectable rate of fire and trigger response.

The rotary HOP-up unit is equipped with a 6.03mm tightbore inner barrel, offering improved accuracy potential and a slight FPS boost from the same strength spring. If you like to tune your platforms to perfection, you'll be happy to learn that the SOPMOD has a quick change spring system, making the gearbox comparatively easy to work on, though we still only recommend this for the pros!

If you're in the market for a primary to match a military-themed loadout but don't want to get in too deep financially, the NUPROL Delta Pioneer SOPMOD M4/AR-15 AEG is an ideal choice. With respectable internals which do the job both in CQB and outdoors with plenty of upgrade options and compatible accessories available, the M4/AR-15 SOPMOD is ready for any challenge on the Airsoft battlefield!

Features

  • Available in Pre Two-Tone Blue - Immediate dispatch, No need to wait for our Two-tone service!
  • 6.03mm Tightbore inner barrel - Great accuracy potential
  • 14mm CCW Male threaded outer barrel - Tracer/suppressor ready
  • Fixed front iron sight with bayonet lug - Compatible with M9 Bayonet replicas
  • Front and rear sling points - Front on the gas block, rear on the stock
  • KAC RAS Style handguards - 20mm Picatinny rails at 3, 6, 9 & 12 o'clock
  • Flip-up rear iron sight - Press the button at the rear to deploy
  • 20mm Picatinny railed receiver - Ready for a red dot sight or rifle scope
  • Rotary adjustable HOP-up unit - Easy to adjust in fine increments, holds its setting well long-term
  • "A2" Finger ridged pistol grip - The standard M4A1/M16A2 grip, grippy and comfortable for most hand sizes
  • Enlarged trigger guard - Built into the receiver, very strong and plenty of room for gloved use
  • 3-Position fire selector switch - SAFE, SEMI AUTO & FULL AUTO, 90-degree throw between each mode
  • Extended charging handle - Fast access to the HOP-up unit for quick mid-game adjustment
  • 6-Position M4/AR-15 buffer tube - Adjust the stock quickly and easily to suit your body type or loadout
  • Crane Battery Stock pre-installed - Comfortable cheek rest, QD sling sockets and sling slots built-in
  • Version 2 Gearbox:
    • Alloy shell
    • 8mm bushings
    • Quick change spring system
    • Steel 18:1 ratio gearset
    • High torque 21K RPM motor
  • Compatible with M4/AR-15 AEG magazines - Spares are cheap and plentiful!

Package Includes

  • NUPROL Delta Pioneer SOPMOD M4/AR-15 AEG
  • 120rnd Medium-capacity magazine

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 315fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Vertical foregrip
Skill Level Icon
User Skill Level
Beginner Player
Patrol Base - Warning Icon
Warnings
Li-Po
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.313kg
Weapon Length Collapsed
Length (Collapsed)
70cm
Weapon Length Extended
Length (Extended)
78.5cm

Construction

Colour Wheel Greyscale
Primary Colour
Black, Pre Two-Tone Blue , Dark Earth,
Construction Icon
Construction
Alloy outer barrel, front sight, gas tube, delta ring & charging handle. Steel sling plate, dust cover & body pins. Polymer handguard, rail covers, rear sight, pistol grip, stock & buffer tube.
Weapon Construction External
External Construction
Polymer
Alloy
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel
Brass

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
Assault Rifle, M4 / AR-15 / M16, M4/AR-15 AEG, AR,
Magazine Style Icon
Magazine Style
Long Gun Magazine, Assault Rifle, M4 / AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Inside the mock ejection port, accessible with the charging handle held back.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Railed Receiver
  • Finger Ridged Pistol Grip
  • AR Buffer Tube
  • Sliding Stock
  • Flip up rear Iron sight
  • Bird Cage Flash Hider
  • Threaded Outer Barrel
  • QD Sling Point
  • Ambidextrous Sling Plate
  • Enlarged Trigger Guard
  • Extended Charging Handle
  • AR Triangle front sight with sling loop
  • Rubber butt plate
Rail System Icon
Rail System
20mm RIS / RAS , 20mm Railed Receiver,
Icon Stock Positions
Stock Setting
Sliding , Multi-Position , M4 Crane Stock,
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights , Aperture Iron Sight,
Sling Plate Icon
Sling Options
Buffer Plate , Stock , QD , Loop , Gas Block,

Barrel

Outer Barrel Length (in)
10.5''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
250mm

Magazine Specific

Magazine Type
AEG, Medium Capacity ,
Magazine BB Capacity
Approx. 120 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Motor
Airsoft Motor Icon
Motor Type
High Torque
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
315 FPS +/- 10%
Notepad Icon
Tested Using
0.2g Delta Armory Diamond BBs
Notepad Icon
Test Date
11/03/2025

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
