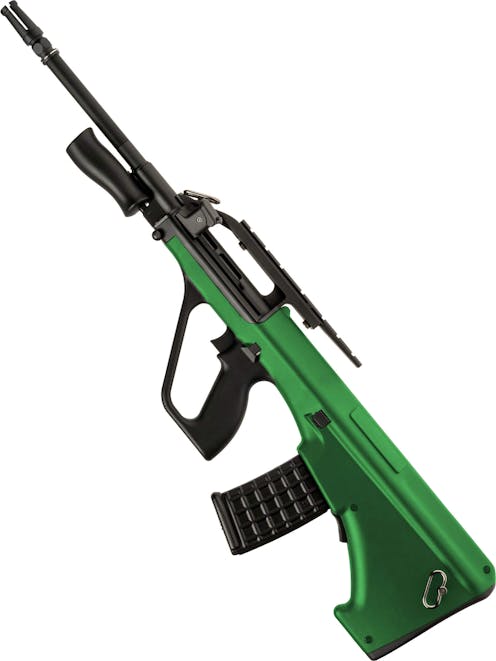

Jing Gong 0448A AU-1G

Jing Gong
Code:
£159.99
  • Integrated Foregrip
  • 14mm CCW Thread
  • 20mm Receiver Rail

A Polymer and Alloy replica of an Austrian favourite! The Bullpup design allows for a very long inner barrel in a more compact package, offering you long-range performance in a medium-sized and ambidextrous bundle.

Full description

Description

This Airsoft Electric Gun is a replica of the Military Model of a well-known Austrian Bullpup, and represents the more traditional/original layout of the firearm. It has the classic integrated foregrip, 20mm receiver rail as well as a sizable outer barrel assembly with 14mm CCW thread.

The main body of the gun is made from Polymer just like the real thing, with the forward section of the rifle being made from Alloy which not only balances the weight of the gun, but gives it a strong core. The receiver rail running along the top is Alloy and offers 20mm rail for the addition of sights and scopes. Included in the box is a rudimentary ironsight set which will work, but could probably do with being replaced with something more efficient. The outer barrel assembly is also made from Alloy to give the gun a strong core, and features a 14mm CCW thread underneath the flash hider for you to modify the gun further with suppressors, tracer units and other muzzle devices. To access the thread simply remove the grub screw from the flash hider and unscrew it. The front of rear of the AEG has fixed sling loops which allows you to use most sling setups, and make it easier to carry throughout the day, especially if you plan on using a sidearm. The integrated foregrip is easy to use by pulling down on it to adjust it between its two positions. Be gentle with the foregrip as this can be broken if you're rough with it.

The AEG features a Rotary HOP Unit inside to apply backspin to your BBs, helping you achieve greater range when tuned correctly and a heavyweight BB used (0.25g or higher). Pull back on the charging handle (lifting it upwards to lock it at the rear to make it easier) and look inside the dust cover at the rear to access the adjustment wheel. There is a rubber blanking plate on one of the ejection ports which can be switched to either side of the gun depending on whether you're left or right handed. The fire controls are also friendly to left handed players, as they can be accessed from either side of the gun. The safety and magazine release are all central on the rifle, and the fire selector is controlled by the trigger with a half pull for a Single Shot, and a full pull for Full Auto. The battery is stored in the rear of the gun and has room for the included 8.4v NiMH Block or a Slim/Short 7.4 LiPo battery. To access the battery compartment just pull out the rubber butt pad at the rear (a screwdriver may be required for the first few times as it is very tight).

Included in the box is a 300rnd AUG magazine and instruction manual. If you're looking for a comfortable and adaptable Bullpup style rifle which is compatible with left and right handed players, and is a little bit different from the norm, then the Jing Gong 0448A AU-1G is a great choice.

Features

  • Bullpup Assault Rifle
  • 20mm Receiver Rail
  • 14mm CCW Thread
  • Military Model Replica
  • 300rnd Magazine
  • 510mm Inner Barrel
  • Two Stage Trigger
  • Ambidextrous Mag Release
  • Ambidextrous Safety
  • Rotary HOP Unit
  • Integrated Foregrip
  • Front & Rear Sling Loops
  • Well Balanced Weight
  • Rubber Butt Pad
  • Long Barrel / Compact Length

Package Includes

  • Jing Gong 0448A AU-1G
  • 300rnd Magazine
  • 8.4v 1100mAH NiMH
  • EU Pin Charger
  • User Manual

Special Instructions

The trigger is a two stage design which means that a half pull of the trigger in Single Shot, and a full pull is Automatic. Some CQB sites that operate a strict Single Shot only policy may not let you use such a gun, however that is down the discretion of the site. Please check before purchase.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 320fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
  • Magazine
  • Battery
  • EU Pin Charger
  • Ironsight Set
Skill Level Icon
User Skill Level
Starter
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 3.26kg
Weapon Length Extended
Length (Extended)
80cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Polymer receiver and magazine, Alloy outer barrel assembly, rail system and trim.
Weapon Construction External
External Construction
Polymer
Alloy
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AUG
Magazine Style Icon
Magazine Style
AUG
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Two Stage Trigger
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Ambidextrous
Weapon Configuration Icon
Weapon Configuration
Bullpup
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind dust cover when charging handle pulled to rear

Furniture

Weapon Furniture Icon
Furniture
  • Railed Receiver
  • Ambidextrous Magazine Release
  • Integrated Foregrip
  • Ambidextrous Safety
  • Threaded Outer Barrel
Rail System Icon
Rail System
20mm RIS / RAS
Icon Stock Positions
Stock Setting
Fixed
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Loop

Barrel

Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Length
510mm

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Included Battery
Battery Configuration
Block
Battery Type
Ni-Mh
Battery Voltage
8.4V
Battery Amperage
1100mAh
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
320FPS
Notepad Icon
Tested Using
ASG Blaster 0.20g BBS
Notepad Icon
Test Date
25/09/19

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 320fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
