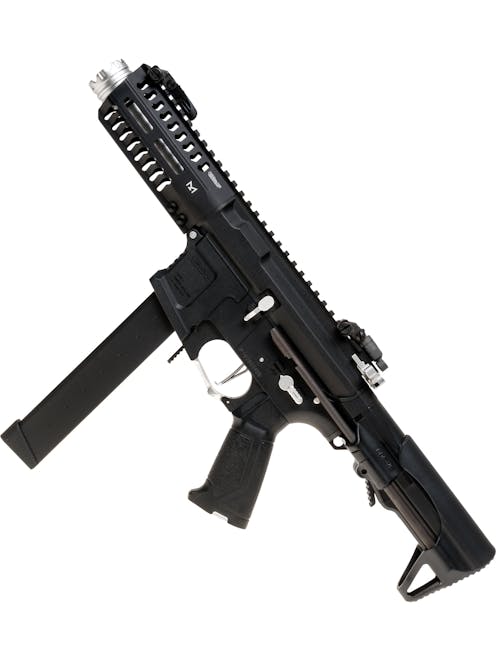

G&G Armament Combat Machine ARP9

G&G Armament
Code:
£199.99
Was £279.99
Save £80.00

    The first Airsoft replica of an AR-9, the real-steel AR15 rifle receiver chambered in 9mm pistol ammunition. AR-9 pistols and carbines have become extremely popular in the United States, due to their modularity, familar AR15 style controls, and compact nature. The G&G ARP9 is constructed from high-density polymer with an aluminium M-LOK handguard and includes a compact PDW stock, making this AEG a great choice as a CQB primary for those who want a more modern, high-speed submachine gun with an aggressive design aesthetic.

    Full description

    Description

    This is the original ARP9. Epic as it is, if you want to check out the ARP9 generation 2, click here

    The G&G ARP9 has taken the Airsoft CQB world by storm; following in the footsteps of the awesome G&G Firehawk, but in a new 9mm format with G&G's programmable ETU and an ultra-compact GOS V5 PDW stock. The ARP9 shares the Firehawks booming muzzle report with its newly designed aggressive sound amplifier, but being capable of taking an 11.1V LiPo battery takes the ARP9 to a new level in rate of fire, and semi-auto trigger response.

    At the front end of the ARP9, we can find G&G's latest sound amplifier which attaches to the 14mm CCW male threads at the tip of the alloy outer barrel. The sound amp looks awesome and is positively scary when fired, but if the look doesn't suit you or you are more of a sneaky type of player, the amplifier can be easily replaced with any 14mm CCW threaded accessory, including Tracer units and suppressors. The sound amplifier sits slightly recessed beneath the short M-LOK handguard, giving the ARP9 its "I mean business" look.

    The Handguard is constructed from aluminium and is anodized in matt black, keeping the details sharp and providing a consistent finish across the piece. At the 12 o'clock position on the M-LOK handguard we have a 20mm Picatinny rail, which joins seamlessly with the rail on the receiver to provide an extended mounting point for optical sights, which is easily long enough to house a red dot sight and a magnifier should you choose to take that route with your build.

    At the 3, 6, and 9 o'clock positions we have two M-LOK slots, providing negative space attachment points for M-LOK accessories or M-LOK rail sections. The use of M-LOK ensures that the ARP9 is as light as possible and that you are only carrying the accessories and rails you will use, though the handguard also adds to the ARP9's cutting edge, modern look.

    As we reach the receiver, we find familiar M4/AR15 style controls, making it easy for veteran M4 users to adapt their habits to run their ARP9 proficiently. The mock bolt release can be found in the center of the left side of the receiver, and is a separate piece for added realism, but provides no function. The fire selector can be found above the pistol grip and is an enlarged design with deep grooves to ensure you can operate it easily, even in poor conditions or when under pressure. Similarly to an M4/AR15 platform, the fire selector provides 3 positions; safe, semi-automatic, and fully automatic. These selector switch positions are denoted with stylish but discrete 3D bullet pictograms and have a 90-degree throw between each mode.

    The magazine release of the ARP9 is located on the bottom of the receiver, forward of the trigger guard, and is enlarged, and accessible from either side - a handy feature for left-handed users! The receiver itself follows the design aesthetic of the G&G CG series, with modern angular styling and flared magazine well for improved reload speed. The magazine well also features gripping surfaces moulded into its front face, providing an area to hold the ARP9 when shooting in unconventional positions.

    The pistol grip installed on the G&G ARP9 is a G&G ergonomic slim type grip, which provides a comfortable enhanced grip option whilst remaining useful for those with smaller hands. This grip works well in conjunction with the flat-faced speed trigger and enlarged trigger guard. This combination of parts ensures you can get to your trigger quickly, and your finger will not slide off, even if you are slapping away at it to keep the enemies heads down! The trigger is also skeletonized, which is one of those small details which tie together to make the ARP9 such a looker whilst also serving to further reduce any unnecessary weight.

    At the top rear of the receiver, we can find the ambidextrous charging handle, which can be actuated from either side of the AEG, and serves to open the dust cover and retract the mock bolt carrier for access to the rotary adjuster of the HOP up unit. The HOP up unit provides adjustable backspin to your BB in order to extend the range. With the charging handle held to the rear, the HOP up can be adjusted and set for the weight of BB you are using, and with its rotary design, the unit holds its setting perfectly under the vibration of firing.

    Just above the charging handle, we can find the rear flip-up aperture sight, which mates with the front flip-up sight. Both sights come pre-installed to the 20mm Picatinny rail on the M-LOK handguard and receiver respectively, but can be removed and replaced with any 20mm Picatinny compatible optical or iron sights. The flip-up nature of this sight set allows them to be stored in a more compressed manner, preventing damage to your sights, and can also be kept on the AEG flipped down when using an optical sight, providing an emergency aiming solution should your primary optic go down.

    Arriving at the rear of the AEG, we come across the G&G GOS-V5 PDW stock. This stock features alloy stock bars, allowing it to be extended to any one of two positions, depending on your body type and whether or not you use a bulky rig or plate carrier vest. The stock adjustment button can be found on the bottom of the stock, and when pressed allows the stock to extend or retract. Integrated into the GOS-V5 design, we have an ambidextrous sling loop, located on the bottom, which is ideally suited for use with a single-point sling

    Within the GOS-V5 stock lies the ARP9's battery compartment, which can hold up to an 11.1V 1100mAh battery. For ease of installation, we recommend either an 11.1V 600mAh PDW battery or purchasing the Airtech Studios Battery Extension Unit in order to install larger batteries. For more information on ARP9 batteries, and how to install them see our Guide on the subject. To access the battery compartment, simply remove the butt plate and stock bars by holding the adjustment lever down and pulling the butt plate off to the rear. Following this, push in the tab on the bottom of the battery tube which allows the end cap to be removed, revealing the Mini-Tamiya connector beneath.

    The ARP9 takes its own proprietary G-series style AEG magazine, which whilst looking skinny can hold a whopping 300 rounds in the wheel wound High-cap form! The ARP9 can also take midcap and low capacity magazines, as well as its specifically designed Drum Magazine. If you are looking for a Submachine gun style replica for up close and personal encounters, or to act as a pocket-sized LMG, you can't do much better than a G&G ARP9!

    Features

    • 9mm AR Pistol Style Receiver
    • Programmable MOSFET system and ETU
    • Designed to handle 11.1v LiPo (up to 15c)
    • Full auto can be programmed to Burst Mode
    • Rotary adjustable HOP up Unit
    • Removable Flash Hider
    • 14mm CCW Threaded outer barrel
    • Rear ambidextrous sling loop
    • 5'' M-LOK Handguard
    • Front and Rear folding Iron Sights
    • GOS-V5 Sliding Low Profile Stock
    • Ergonomic Pistol Grip
    • Enlarged Trigger Guard
    • Flat "speed" trigger
    • Extended Ambidextrous Magazine Release
    • ARP.9 2.0 Available here - The next generation has landed!

    Package Includes

    • G&G Armament Combat Machine ARP9 AEG
    • 300rnd High-capacity Magazine
    • User Manual

    Special Instructions

    To re-program Full Auto to 3 round Burst follow these steps:

    1. Remove Magazine
    2. Ensure the replica is cleared of any BBs
    3. Set the fire selector switch to semi-automatic
    4. Hold the trigger for 10 seconds
    5. You now have 3 round burst instead of Full Auto!

    If you are having trouble installing a battery into the ARP9, please check out our guide on ARP9 battery installation

    Specification

    General

    Weapon Construction External
    Weapon Type
    Submachine Gun
    Over 18 Only Icon
    Over 18
    Yes
    Icon UKARA - United Kingdom Airsoft Retailer Association
    Defence / UKARA Required
    Yes, No,
    FPS Icon
    FPS (Feet Per Second), using 0.20g BB
    Approx. 305fps ± 10%, using 0.20g BB
    Site Legal Icon
    Site Legal, using 0.20g BB
    Yes
    Screwdriver Icon
    Pre-Built
    Yes
    Package
    Included Items
    • Magazine
    • Ironsight Set
    Skill Level Icon
    User Skill Level
    Starter, Regular Player,
    Patrol Base - Warning Icon
    Warnings
    Li-Po - Never Leave Charging Unattended
    Li-Po - Only Use Approved Chargers
    Li-Po - Charge in a Fire Safe Area

    Weight and Dimension

    Weight KG Icon
    Weight (KG)
    Approx. 1.939kg
    Weapon Length Collapsed
    Length (Collapsed)
    45cm
    Weapon Length Extended
    Length (Extended)
    59cm

    Construction

    Colour Wheel Greyscale
    Primary Colour
    Black, Battleship Grey,
    Colour Wheel Greyscale
    Secondary Colour
    Black, Orchid, Fire, Amber, Ice, Sky, Jade,
    Two Tone Icon
    Pre Two-Toned
    No
    Construction Icon
    Construction
    Alloy outer barrel. Aluminium handguard. Steel stock bars, pins, screws and trim parts. Polymer receiver, pistol grip, butt plate and buffer tube.
    Weapon Construction External
    External Construction
    Polymer
    Alloy
    Aluminium
    Steel
    Gearbox Icon
    Internal Construction
    Polymer
    Alloy
    Aluminium
    Steel

    Weapon Specific

    Power Source Icon
    Powered By
    Electric
    Blowback Icon
    Blowback
    None
    Weapon Platform
    ARP9, AR-9,
    Magazine Style Icon
    Magazine Style
    AR-9, G&G ARP9,
    Fire Select Icon
    Fire Selector
    PatrolBase | Fire Select Safe
    Safe
    Patrol Base | Fire Select - Semi Automatic
    Semi Automatic
    Patrol Base | Full Automatic
    Full Automatic
    Programmable
    Weapon Safety Features Icon
    Safety Features
    Trigger Lock
    Shooter Configuration Icon
    Shooter Configuration
    Right Handed
    Weapon Configuration Icon
    Weapon Configuration
    Standard
    Weapon Scale Icon
    Weapon Scale
    1:1
    Suggested BB Weight
    0.25g

    Hop-Up

    Hop-Up Unit Icon
    Hop-Up Unit
    Yes
    Hop-Up Unit Adjuster Icon
    Hop-Up Adjuster
    Rotary
    Hop-Up Unit Location Icon
    Hop-Up Location
    Behind mock Bolt cover, when charging handle is held to the rear.

    Furniture

    Weapon Furniture Icon
    Furniture
    • Railed Handguard
    • Flip-Up Ironsights
    • Railed Receiver
    • Ambidextrous Charging Handle
    • Ambidextrous Magazine Release
    • Sliding Stock
    • Muzzle Sound Amplifier
    • Ambidextrous Sling Plate
    • Flat trigger
    • PDW stock
    • M-LOK Handguard
    Rail System Icon
    Rail System
    20mm RIS / RAS , MLOK Rail System,
    Icon Stock Positions
    Stock Setting
    Sliding , Multi-Position ,
    Weapon Length Extended
    Stock Positions
    2 Position
    Sight Type Icon
    Sight Type
    Iron Sights
    Sling Plate Icon
    Sling Options
    Buffer Plate , Loop ,

    Barrel

    Outer Barrel Length (in)
    5''
    Icon Thread Type
    Outer Barrel Thread Type
    Male
    Icon Thread Direction
    Outer Barrel Thread Direction
    CCW (Counter Clockwise)
    Outer Barrel Thread Size
    14mm
    Inner Barrel Diameter
    6.08mm
    Inner Barrel Length
    128mm

    Magazine Specific

    Magazine Type
    High Capacity, AEG,
    Magazine BB Capacity
    Approx. 300 Rounds
    Magazine BB Fill Method
    Fill Window
    Magazine BB Fill Location
    Top

    Electric Gun Specific Information

    Gearbox
    Gearbox Icon
    Gearbox Version
    V2 Gearbox
    Wiring Icon
    Gearbox Wiring
    Rear Wired
    Digital Trigger Icon
    Gearbox Electronic Trigger
    Yes
    Motor
    Airsoft Motor Icon
    Motor Type
    25000rpm Hi-torque Long axis
    Battery Specific
    Battery Connector
    Patrol Base | Icon | Mini Tamiya
    Mini Tamiya
    Compatible Battery
    Compatible Battery Type
    Li-Po
    Compatible Battery Configuration
    Small Stick [max 1100mAh]
    Compatible Battery Voltage
    11.1v

    Product Testing Data

    Notepad Icon
    Test Description
    305 FPS +/- 10%
    Notepad Icon
    Tested Using
    0.2g ASG BLASTER
    Notepad Icon
    Test Date
    13/7/17

    Size guide

    Joule Charts

    Special Instructions

    These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

    FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

    Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

    Tap the tabs below to open the relevant chart for your replica.

    Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
    328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

    Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
    370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
    380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
    390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
    400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
    410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

    Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

    Velocity BB Weight (Grams)
    FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
    250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
    260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
    270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
    280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
    290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
    300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
    310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
    320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
    330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
    340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
    350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
    360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
    370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
    380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
    390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
    400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
    410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
    420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
    430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
    440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
    450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
    460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
    470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
    480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
    490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
    500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
    510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
