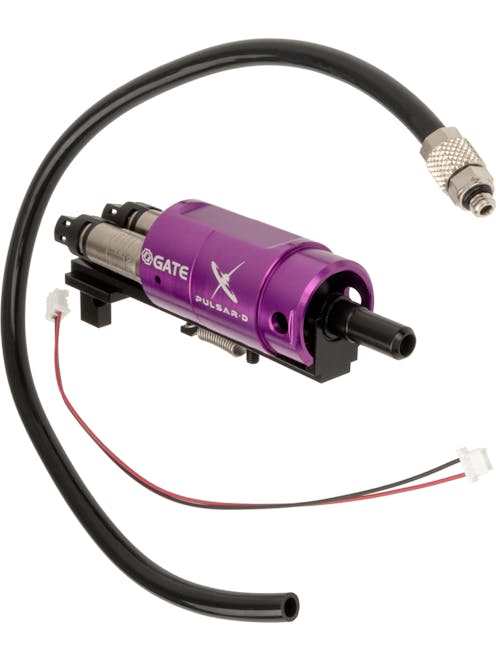

GATE PULSAR D Dual Solenoid HPA Engine

Gate
Code: HPA-PD
€382.99
  • HPA Engine for V2 gearbox
  • TITAN™ II V2 HPA Version required
  • For M4/AR-15, SMG-5 & G3 AEGs

If you're done with AEGs and want to revamp your build for HPA, the GATE PULSAR D Dual Solenoid HPA Engine is a fantastic option. Designed for Version 2 AEG gearboxes, the PULSAR D is designed to work with a GATE TITAN™ II V2 ETU (HPA Version), giving you unlimited advanced programming options along with the bob on consistency, top-tier accuracy, killer rate of fire and wealth of tuning opportunities HPA builds are known to provide.

The set includes the complete engine but will require a V2 gearbox shell, V2 trigger and TITAN™ II ETU HPA Version to complete the build. When compared to the original and more affordable PULSAR S, the PULSAR D offers a higher FPS range, universal compatibility with AEG nozzles, less precision required in the assembly of the build and impressively high air efficiency, using only 0.7 PSI per shot on average at 90 PSI with a 0.8L air tank.

The PULSAR D also has the edge in accuracy and versatility over the simpler single solenoid PULSAR S, being suitable for any build objective, from CQB monster to DMR dominator. As with all internal upgrades, we only recommend this engine to those who are confident working on AEG and HPA internals, but if you're ready for the PULSAR D, you're sure to be impressed!

Full description

Help
Size guide

Description

The Gate PULSAR D Dual Solenoid HPA Engine is a fantastic way to enter the world of High Pressure Air (HPA). HPA-fueled platforms have several advantages over AEG internal systems, including mechanical simplicity, FPS adjustment and ease of installation when compared to building a fully upgraded AEG gearbox. The PULSAR is designed for Version 2 gearboxes, making it suitable for M4/AR-15, SMG-5 and G3 AEGs.

The PULSAR D is unique in many ways, including its simple design, automatic synchronization of the loading nozzle, "closed bolt mode" and tight tolerances intended to eliminate "mid-cap syndrome" and allow for reliable feeding at high rates of fire. GATE has also put in a lot of effort to improve the accuracy of your completed build by ensuring the PULSAR D doesn't negatively affect your HOP-up performance and cause inconsistency downrange as other HPA engines might.

The PULSAR D is compatible with standard AEG nozzles and includes 5 nozzle lengths for MP5/SMG-5 & M4/AR-15 AEGs, giving you plenty of tuning options for optimal performance. The tappet plate spring is also AEG spec, so while the PULSAR D may not have a standard tappet since it requires no gears, you can still play with your feed speed and get things set up how you like them. The engine is also designed to eliminate nozzle wobble, resulting in more stable FPS figures and thus, greater accuracy.

Being Bluetooth ETU/FCU controlled, the PULSAR D requires a Gate TITAN™ II HPA Version to function but when this pairing is installed, you have access to all of the phenomenal TITAN™ II programmable functions, Bluetooth 5.2 connectivity and compatibility with the ever-growing GATE ecosystem.

Features

  • Dual Solenoid HPA Engine - Designed for Version 2 AEG gearboxes
  • ETU NOT Included - Requires a Gate TITAN™ II V2 HPA Version (sold separately)
  • Automatic Nozzle Synchonisation - Reduces time spent tuning
  • No FPS drop on full auto - A common HPA issue, this won't happen with the PULSAR D
  • Tight tolerances - Intended to eliminate the "mid-cap syndrome"
  • Compatible with standard AEG Nozzles - Aftermarket nozzles are a go
  • 5 Nozzle lengths included for SMG-5 & M4/AR-15 AEGs
    • 20.50mm
    • 20.80mm
    • 21.15mm
    • 21.25mm
    • 21.40mm
  • Solenoid Voltage Range - 5-8.4 V
  • Operating Pressure - 60-140 PSI – high pressure only
  • Gas Consumption -For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 0.7 PSI per shot
  • Finished Product Weight - 90g
  • Operating Temperature Range - Min. -15° C, max. +50° C
  • Maximum Relative Humidity - ≤ 80%
  • Regulated ROF - 1 to 40 RPS (feeding is magazine dependent)
  • Velocity - 250 – 650 FPS
  • Operation Mode - Closed-Bolt / Open-Bolt
  • Pressure Range - 60 to 140 PSI

Package Includes

  • GATE PULSAR D Dual Solenoid HPA Engine

Unboxing & Installation Highlights Video:

Specification

General

Parts & Accessories Type
Electric Internal Parts, Internal Parts,
Internal Part Type
HPA Engine
Patrol Base - Warning Icon
 Warnings
Patrol Base - Warning Icon
 Parts Fitting
Patrol Base - Warning Icon
 Unique Part
Custom Parts

Part Specific

Part for Power Source Type
Electric
Package Includes
Complete HPA Engine (ETU NOT Included)

Electric Part Specific

Gearbox Icon
 Gearbox Version
V2 Gearbox
Gearbox Version Compatibility Variant
Version 2

Size guide

Parts Fitting

Upgrades and Downgrades should only be undertaken by experienced players, or Airsoft Technicians. Please note, changing any internal parts of a weapon voids its warranty unless done in-house by our staff.

Please ensure that when fitting parts the part purchased is the correct part, as once a part has been fitted we cannot accept return.

We do know that players love to tinker, so we're here to give you help should you require it, and if needed you can get in touch with our workshop for more help!

Unique Parts

Please note that some parts may be unique to a specific brand of weapon. For example: Parts for an ASG M4A1 may not fit an ICS M4A1.

Parts from the same brand typically have a high chance of fitting, though be warned, some replicas use unique parts, so please ensure the part will fit before you attempt to fit it.

If you require help with fitting any parts feel free to get in touch with us via our Contact Us Page.
