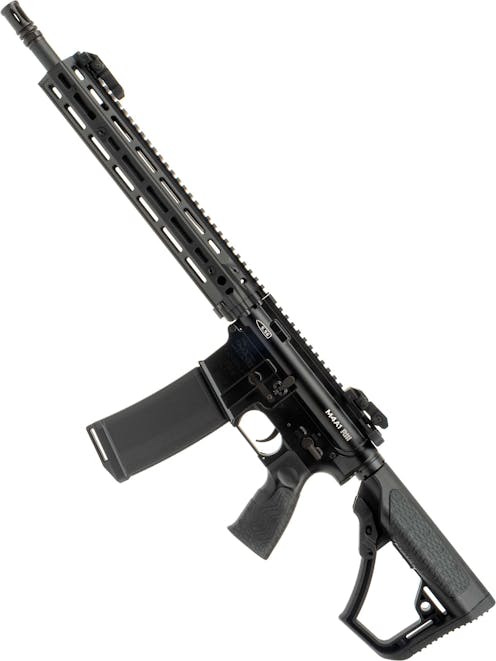

EMG Daniel Defense M4A1 RIII™ 14.5" AEG

EMG International
Code:
£339.99
  • Full metal construction
  • Licenced by Daniel Defense via EMG
  • MOSFET, Tightbore & E-Edition gearbox

If you're into the latest high-end American rifles, the EMG Daniel Defense M4A1 RIII™ 14.5" should be right up your street. This full metal M4/AR-15 AEG is based on the carbine length option in the Daniel Defense RIII™ line and is a near-perfect match for the real thing. On the outside, we are treated to a perfectly replicated M4A1 RIS III M-LOK  handguard, DD Tornado pistol grip, Grip-N-Rip charging handle and the latest DD Buttstock, along with flawlessly engraved Daniel Defense trademarks.

The M4A1 RIII™ is built around a reinforced version 2 gearbox fitted with the CYMA Platinum MOSFET, 13:1 CNC steel high-speed gears running on 8mm ball bearing bushings, CNC aluminium piston and cylinder head driven by a high-speed Neodymium magnet motor, resulting in a very impressive rate of fire and a near-instantaneous trigger response. The inner barrel is a 6.03mm tightbore paired with an alloy rotary HOP-up unit, giving you the right core parts to get the job done at long range.

As a platform for outdoors skirmishing or Airsofters who find themselves in a mixed environment, the DD M4A1 RIII™ is a fantastic choice. With a longer barrel than the average coupled with a lightweight and agile M-LOK front end, the M4A1 RIII™ can tackle the enemy team at range and still be whipped around at break-neck speed when clearing rooms!

Full description

Description

If you have your sights zeroed on a carbine-length AR platform and you want the perfect hybrid of military and civilian, the EMG Daniel Defense M4A1 RIII™ 14.5" AEG is the right tool for the job. Boasting full metal construction, licenced externals from Daniel Defense via EMG and CYMA's E-Edition high speed gearbox, this beast is a perfect match for the latest 14.5-inch barreled platform from the Daniel Defense RIII™ line, known as the M4A1 RIII™.

The M4A1 RIII™ is kitted out with perfect replicas of all the latest Daniel Defense furniture, including the M4A1 RIS III handguard, the "Grip-N-Rip" charging handle, "Tornado" pistol grip and DD Buttstock. If you're a fan of full Daniel builds, you'll love this one!

While its externals are fantastic, the internals raise the bar further still! Inside you will find a reinforced version 2 gearbox kitted out with a vast number of pre-upgraded parts including a high-speed motor, CNC steel 13:1 ratio high-speed gearset and the CYMA Platinum MOSFET to keep it all in check and allow the use of 11.1V LiPo batteries. The M4A1 RIII™ is also packing a 6.03mm tightbore with an alloy rotary HOP-up unit, giving it the range and accuracy to tangle with long-range foes in the great outdoors.

Starting at the tip of the 14.5-inch outer barrel we can find a birdcage type flash hider pre-installed on the barrel’s 14mm CCW male threading. The birdcage design also goes hand in hand in terms of looks with the handguard, jutting out two inches ahead for a compact front end, and is the appropriate flash hider design for the real Daniel Defense M4A1 RIII™ rifle.

The handguard replicates the latest and greatest Daniel Defense handguard style, an evolution of the M4A1 RIS II quad rail handguard found on military-issue M4A1 Block II rifles used by US Army Rangers, US Navy SEALs and others. Known as the RIS III 13.5-inch, this handguard keeps the military-applicable aspects of the original M4A1 RIS II handguard, specifically the ability to remove the lower section and mount an M203 grenade launcher. In comparison, this new DD handguard boasts a slimmer profile and reduced weight thanks to its use of M-LOK negative space attachment slots instead of 20mm Picatinny rails.

M-LOK slots are present at the 3, 6, and 9 o'clock positions with additional slots at the offset angles in the ideal position to mount a tactical flashlight and keep it tight into the weapon for reduced snagging. M-LOK slots allow M-LOK accessories to be directly mounted but you can also make use of 20mm Picatinny rail adapters for M-LOK if you have a preferred 20mm foregrip, flashlight, bipod or laser aiming module.

Like the original M4A1 RIS II, the RIS III handguard features a 20mm Picatinny rail on its upper surface which runs back to meet the receiver rail seamlessly, allowing for optical sights of practically any length to be mounted despite the short overall length of the M4A1 RIS III. Also present on the handguard are a pair of QD sling sockets, allowing for QD sling swivels to be mounted and paired with either the rear sling plate, QD sockets or footman loops on the stock to allow for a two-point sling.

Pre-installed on the top rail, we are treated to a set of flip-up aperture iron sights which can be deployed by pressing the button on the left side of each sight. The sights are fully adjustable for both windage and elevation and protected on each side with protective wings to keep the sights set properly despite any mid-battle bumps and scrapes.

Next up, we reach the receiver which is a stunning showcase of licenced Daniel Defense trademarks, flawlessly engraved and a perfect match for the real M4A1 RIII™. The left side of the upper receiver also includes a 5.56mm calibre marking in high-vis white laser engraving, together with the stylised M4A1 RIII™ logo at the rear. The dust cover, found on the right side, also features DD markings and is constructed from high density polymer to match modern weight-reduced dust covers found on the latest H&K HK416 rifles as well as Daniel Defense's DDMK18.

The charging handle is located at the top rear of the receiver, and as we might expect, is a licenced Daniel Defense design. Known as the "Grip-N-Rip", the charging handle is ambidextrous, with enlarged latches on either side allowing for flawless functionality whether you wear gloves or not.

Pulling the charging handle back will pop open the dust cover and reveal the mock bolt carrier with its DD trademarks. The mock bolt carrier will also lock to the rear, allowing access to the rotary HOP-up unit. This unit is constructed from alloy for increased strength, allowing you to tune the M4A1 RIII™ for your chosen ammo weight. Once your adjustment is complete, slap the "ping pong paddle" bolt catch on the left side to send the mock bolt home with a satisfying "clank".

The fire selector switch is located on the left side of the receiver, just above the pistol grip and is a standard M4A1 mil-spec design with a textured surface for optimal traction in wet weather. The selector provides 3 modes of fire; safe, semi-automatic and fully automatic, with a 90-degree throw between each mode. The selector switch is one of the best aspects of the M4 design, easily accessible and fast to use with enough distance between modes that it isn't easy to knock out of position inadvertently.

The magazine release button is over on the right side of the magazine well, a standard M4/AR-15 push button release but compatible with aftermarket ambidextrous alternatives. The button is surrounded by a raised protrusion in the receiver, known as the "magazine release fence" and designed to prevent the mag release from accidentally being pressed as the M4A1 RIII™ rubs against your gear. Another great aspect of the AR-15 design, the magazine release is easily accessible from a firing grip, making for scorchingly fast reloads as long as you practice!

At the base of the buffer tube is an ambidextrous sling plate sandwiched between the receiver and the castle nut. This plate is constructed from steel to provide the prerequisite strength for use with a single-point sling. This sling point is ideal for a single-point bungee sling but can also be used with a two-point sling with the addition of a rail-mounted front sling point.

Following the sling plate, we come to the stock of the M4A1 RIII™ which is the usual M4/AR-15 format of a 6-position buffer tube with an adjustable sliding stock. The buffer tube is compatible with any M4/AR-15 AEG stock you choose to mount, but the pre-installed stock really is fantastic, there is no need to swap it out!

The stock replicates the real steel Daniel Defense Buttstock, a precisely manufactured stock designed to eliminate lateral wobble and add ergonomic enhancements for a more comfortable shooting experience. The sides of the stock are sloped, similar to a crane stock but feature rubberised pads on the surface for a positively luxurious cheekweld. A QD sling socket is present on either side, ready for QD sling swivels, and the stock also includes conventional "footman loops", aka sling slots for standard rifle slings. The butt plate is also deeply serrated for extra grip and shaped to allow for a high hold and a more intuitive head position when shooting.

Inside the stock, we can find the battery compartment which is accessible with the butt plate removed. To do so, simply press the rectangular EMG marked section in the centre of the butt plate and it will pop straight off. Inside, you will see a Deans battery connector to which you mount your chosen battery. You can make use of either the buffer tube itself for your battery if you use stick batteries, or the hollowed "cheeks" of the stock if you prefer a crane/nunchuck battery. We recommend an 11.1V LiPo for this AEG due to its low voltage cutoff function, either a 1200mAh stick battery or a 1450mAh nunchuck battery.

On the inside, the M4A1 RIII™ is equipped with the CYMA Platinum E-Edition gearbox, a version 2 gearbox equipped with a CNC machined steel 13:1 high-speed gearset, MOSFET and high-speed motor. The gearbox shell is also reinforced in all the key places for a long lifespan, and inside you will find 8mm ball bearing bushings, a CNC machined aluminium silent piston head and cylinder head set, a polycarbonate piston with a full rack of steel teeth and a ball bearing quick change spring guide. The inner barrel is also a tightbore 6.03mm example, adding accuracy potential so this mid-length M4 can tackle long-range threats with ease.

If you need a fresh new AR with cutting-edge modern furniture, superb pre-upgraded internals and official licencing, the EMG Daniel Defense M4A1 RIII™ 14.5" AEG hits all three nails on the head. As beautiful to look at as it is to skirmish with, the M4A1 RIII™ is the M4A1 Block II reinvented for the 2020s!

Features

  • Full metal construction
  • 6.03mm Tightbore inner barrel - Great accuracy potential
  • MOSFET Pre-installed - Improves trigger response & rate of fire
  • 14mm CCW Male threaded outer barrel - Tracer/suppressor ready
  • Daniel Defense RIS III 13.5" M-LOK handguard - M-LOK slots at 3, 6, & 9 o'clock, 20mm up top
  • Additional M-LOK slots at the offset handguard positions - More accessory space, ideal for flashlights
  • 20mm Picatinny railed receiver - Ready for a red dot sight or scope, plenty of rail despite the short length
  • Flip-up aperture iron sights pre-installed - Fully adjustable for windage and elevation
  • Gorgeous Daniel Defense trademarks engraved on the receiver - Includes .300BLK calibre markings
  • Ergonomic Daniel Defense "Tornado®" pistol grip - Comfortable design with rubberised backstrap for extra grip
  • Ambidextrous DD "Grip-N-Rip®" charging handle - Easy HOP-up access for left or right-handed shooters
  • Alloy rotary HOP-up unit - Accessible with the charging handle pulled, alloy for extra strength
  • Daniel Defense marked polymer dust cover - Ultra-modern dust cover design with DD markings
  • 3 Position M4/AR-15 fire selector - SAFE - SEMI - AUTO with a 90-degree throw between each mode
  • 6-Position M4/AR-15 buffer tube - Adjust the stock to suit your body type and loadout
  • Daniel Defense DD Buttstock - Modern stock with rubberised cheek pieces and QD sling sockets
  • Rear wired: Deans/T-Plug battery connector - Recommended battery: 11.1V 1200mAh LiPo stick
  • CYMA Platinum E-Edition version 2 gearbox:
    • CNC Steel 13:1 high speed gearset
    • Polycarbonate piston with full steel tooth rack
    • 8mm Ball bearing bushings
    • CNC Aluminium silent ball bearing piston head
    • CNC Aluminium silent double O-ring cylinder head
    • Quick change ball bearing spring guide
    • High speed Neodymium magnet motor
    • CYMA Platinum MOSFET
  • Compatible with M4/AR-15 AEG magazines - EMG 230rnd Daniel Defense Mags are ideal!
  • OEM: CYMA Platinum

Package Includes

  • EMG Daniel Defense M4A1 RIII™ 14.5" AEG
  • 230rnd Daniel Defense Mid-cap magazine
  • Speedloader
  • Allen key
  • QR Code user manual

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 330fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Speed Loader
Skill Level Icon
User Skill Level
Regular Player
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.682kg
Weapon Length Collapsed
Length (Collapsed)
79cm
Weapon Length Extended
Length (Extended)
87.5cm

Construction

Colour Wheel Greyscale
Primary Colour
Black, Flat Dark Earth,
Construction Icon
Construction
CNC Aluminium handguard. Alloy receiver, outer barrel, buffer tube, controls and trim parts. Steel sling plate, castle nut, body pins & screws. High density polymer stock & grip. Rubber cheek pads
Weapon Construction External
External Construction
Polymer
Alloy
Rubber
Aluminium
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR, M4 / AR-15 / M16, Assault Rifle,
Magazine Style Icon
Magazine Style
Long Gun Magazine, Assault Rifle, M4 / AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and the mock bolt is locked to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Flip-Up Ironsights
  • AR Buffer Tube
  • Railed Receiver
  • Ambidextrous Charging Handle
  • Sliding Stock
  • Bird Cage Flash Hider
  • Ergonomic Pistol Grip
  • Threaded Outer Barrel
  • QD Sling Point
  • Ambidextrous Sling Plate
  • M-LOK Handguard
Rail System Icon
Rail System
20mm Railed Receiver, M-LOK Rail system,
Icon Stock Positions
Stock Setting
Sliding , Multi-Position ,
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights , Aperture Iron Sight,
Sling Plate Icon
Sling Options
Buffer Plate , Stock , Handguard , QD , Loop ,

Barrel

Outer Barrel Length (in)
14.5''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
363mm

Magazine Specific

Magazine Type
AEG
Magazine BB Capacity
Approx. 230 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
High Speed
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
11.1v

Product Testing Data

Notepad Icon
Test Description
330 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
19/02/2024

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
