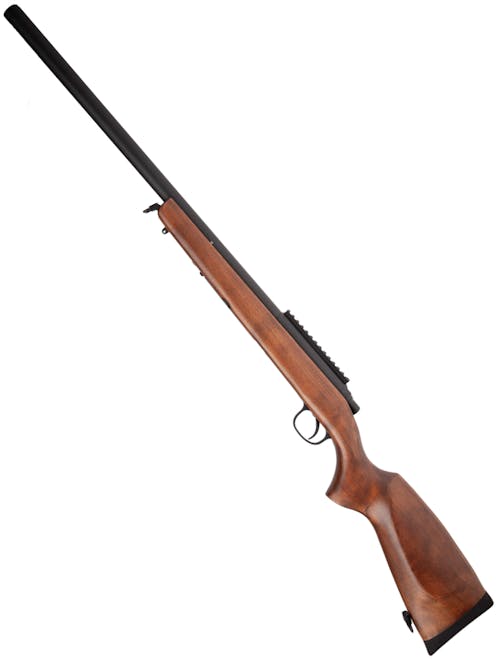

Double Bell VSR-10 (Real Wood)

Double Bell
Code: …
£169.99
  • Real Wood
  • 20mm Railed
  • 440 FPS w/ 0.2g

A spring-powered Airsoft Sniper Rifle which is based on the highly successful and widely compatible VSR-10 model. Coming out of the box at 440 FPS w/ 0.2g BBs with a smooth cycling bolt and Real Wood furniture, this is the ideal Sniper Rifle for someone who wants maximum realism and minimal setup / fuss.

Full description

Help
Size guide

Description

The Double Bell VSR-10 (Real Wood) is manufactured with a Real Wood Stock, and features an Alloy Outer Barrel Assembly and Receiver / Bolt Assembly. This brings the Rifle to a very solid 2.7kg and also makes it as robust as an Airsoft Sniper Rifle can get. It is a VSR-10 design which means it is widely compatible with a huge range of aftermarket accessories, modifications and parts, making it a great choice for those looking for a platform for a project Sniper Rifle. It is also an ideal Rifle for those who want to pull it out of the box and use it, with it coming out of the box firing 545FPS w/ 0.2g BBs.

As a Spring Powered Rifle, it is very easy to use. Simply load the Magazine with BBs using the included Speedloader and install it into the Rifle by pushing it into place. To load a BB into the chamber, just lift the Bolt Handle and pull it to the rear of the Rifle until it clicks and locks at the rear. Push the Bolt forward and back down into its closed position and the Rifle is ready to fire; ensure your safety is off and squeeze the Trigger! The Trigger Lock Safety can be found just behind the Bolt Handle and only needs pulling backwards to block the Trigger. The Adjustable HOP Unit can be adjusted by moving the Slider found between the Barrel and Stock, near the Magazine well. This applies backspin to your BBs and help them stay in the air for longer, which is especially effective when combined with heavyweight BBs (0.30g+).

The top of the Rifle features a 20mm Rail which can be used to install Sights and Scopes to really maximise your performance on the field. Ideally suited to a Magnified Optic, this rail can be used to mount anything from a Red Dot Sight to a 9-24x50mm Hunting Scope. The end of the Outer Barrel Assembly features a 14mm CCW Thread, which only needs the Thread Protector unscrewing from the Rifle to access. It will then accept any standard Airsoft Suppressor, which can be used either for looks, to dampen the muzzle report of the Rifle or to hide an Inner Barrel Extension. On the underside of the Stock you will find a Sling Loop at the front and rear, for the connection of traditional slings, as well as a Harris Bipod Lug for (you guessed it...) a Harris Style Bipod such as ASG Universal Bipod w/ 20mm Rail Adapter. The rear of the Rifle has a thick Rubber Butt Pad which is comfortable and provides good grip when shouldered, to help you make every shot count.

Included in the box is the Rifle itself, a 25rnd Magazine and a Speedloader. If you're looking for a highly realistic Spring Sniper Rifle which can accept a huge range of aftermarket goodies, and also comes out of the box at the absolute peak of the power limit, then the Double Bell VSR-10 (Real Wood) is absolutely ideal.

Features

  • Airsoft Sniper Rifle
  • Spring Powered
  • Smooth Bolt Action
  • Real Wood Furniture
  • Alloy Outer Barrel Assembly
  • Alloy Receiver & Rail
  • 20mm Railed Receiver
  • 14mm CCW Thread
  • Thick Rubber Butt Pad
  • Front & Rear Sling Loops
  • Harris Style Bipod Lug
  • Stock Shaped for Cheek
  • 25rnd Magazine
  • Trigger Lock Safety
  • 440 FPS w/ 0.2g BBs
  • Out of The Box Sniper Rifle
  • Hugely Compatible w/ Upgrades
  • VSR-10 Compatibility

Package Includes

  • Double Bell VSR-10 (Real Wood)
  • 25rnd Magazine
  • Speedloader
  • User Manual

Specification

General

Weapon Construction External
 Weapon Type
Sniper Rifle
Over 18 Only Icon
 Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
 Defence / UKARA Required
Yes, No,
FPS Icon
 FPS (Feet Per Second), using 0.20g BB
Approx. 440fps ± 10%, using 0.20g BB
Screwdriver Icon
 Pre-Built
Yes
Package
 Included Items
  • Magazine
  • Speed Loader
Skill Level Icon
 User Skill Level
Regular Player

Weight and Dimension

Weight KG Icon
 Weight (KG)
Approx. 2.7kg
Weapon Length Collapsed
 Length (Collapsed)
109cm
Weapon Length Extended
 Length (Extended)
109cm

Construction

Colour Wheel Greyscale
 Primary Colour
Real wood
 Real Wood
Two Tone Icon
 Pre Two-Toned
No
Construction Icon
 Construction
Alloy outer barrel assembly, receiver and bolt handle. Real Wood stock. Rubber butt pad.
Weapon Construction External
 External Construction
Alloy
Real Wood
Gearbox Icon
 Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
 Powered By
Spring
Blowback Icon
 Blowback
None
Weapon Platform
VSR / Bar10
Magazine Style Icon
 Magazine Style
VSR / Bar10
Fire Select Icon
 Fire Selector
Bolt Action
Weapon Safety Features Icon
 Safety Features
Trigger Lock
Shooter Configuration Icon
 Shooter Configuration
Right Handed
Weapon Configuration Icon
 Weapon Configuration
Bolt Action
Weapon Scale Icon
 Weapon Scale
1:1
Suggested BB Weight
0.3g

Hop-Up

Hop-Up Unit Icon
 Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
 Hop-Up Adjuster
Slider
Hop-Up Unit Location Icon
 Hop-Up Location
Externally accessible by handguard

Furniture

Weapon Furniture Icon
 Furniture
  • Railed Receiver
  • Harris Bipod Lug
  • Threaded Outer Barrel
Rail System Icon
 Rail System
20mm RIS / RAS
Sight Type Icon
 Sight Type
None
Sling Plate Icon
 Sling Options
Loop

Barrel

Icon Thread Type
 Outer Barrel Thread Type
Male
Icon Thread Direction
 Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm

Magazine Specific

Magazine Type
Spring Loaded, Sniper Rifle,
Magazine BB Capacity
Approx. 25 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Product Testing Data

Notepad Icon
 Test Description
440 FPS +/- 10%
Notepad Icon
 Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
 Test Date
14/05/24

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 490fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
