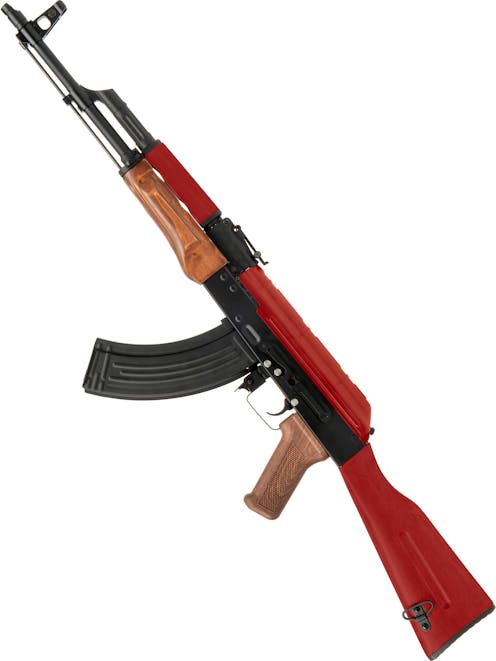

Double Bell BY-023 AKM AEG; Real Wood Furniture

Double Bell
Code:
£179.99
  • Full metal construction - Majority steel
  • Real wood handguards and stock
  • Russian AK style side rail mount

If you have an AK-shaped hole in your arsenal the Double Bell BY-023 AKM AEG should fill that void! This AK rifle replica has all the classic AK features any enthusiast of Kalashnikov's Automatic Rifle will appreciate, including real wood furniture, a large proportion of steel in its construction, authentic Russian markings and a mix of mock and real rivets in all the right places.

On the inside, the Double Bell AKM is equipped with a selection of internal upgrades to give it the edge over rivals in its price range, including a 6.05mm tightbore inner barrel, 8mm steel ball bearing bushings and a quick change spring system for easy power tuning with no need to open the gearbox. Whether you need a real wood and full metal AKM replica to complete your collection or to give the enemy team what for in a skirmish, the Double Bell BY-023 AKM AEG will see you well equipped in that unique Russian style!

Full description

Description

If you need an AK in your life for the unbeatable feel of steel and real wood, Double Bell has you covered with the BY-023 AKM AEG! This Airsoft AEG is modelled after the real steel AKM rifle, the modernised version of Kalashnikov's Automatic Rifle, aka the AK47. The real AKM improved on the original AK with more ergonomic furniture, lighter and more affordable stamped steel construction, the introduction of a side mount for scopes, red dot sight and night vision devices and a new muzzle device which helps keep the recoil of the rifle controllable in the fully automatic mode.

These rifles entered service in the 1970s but are still seen in conflict zones across the world to this day in the hands of rebel groups, PMCs and even special forces units during what is known as "deniable operations". The Double Bell AKM would be a fantastic choice for those who like to change things up from time to time and play as "OPFOR", a rebel group or a Pakol-wearing SF operator. What would Airsoft be without some lovely "bad guy" guns?

Starting at the tip of the barrel we can find a classic AKM style alloy "slant" muzzle brake, which is intended in the real AK to counteract the jarring recoil forces of the massive AK bolt carrier by redirecting the muzzle blast. The brake may look like it is not on straight, but we assure you this is all part of the utilitarian AK design. The slant brake mounts to 14mm CCW male threads at the tip of the 16.3-inch outer barrel and can be swapped out for a suppressor or tracer unit if you are going for more of a Spetsnaz look for your AK. The PBS-1 suppressor is the perfect muzzle device for an 80's Spetsnaz AKM, just saying!

The front sight of the BY-023 AKM mounts directly to its outer barrel and provides an adjustable front post with protective wings to ensure an accidental bump or scrape does not render your sights useless. As part of the classic AK aesthetic, we can find a dummy cleaning rod running parallel to the outer barrel, through the front sight block and gas block. This isn't intended for cleaning an Airsoft barrel and is just for the look, but is none-the-less essential to complete the iconic AKM silhouette.

Moving further down the outer barrel we come to the dummy gas block. This connects to the gas tube, which meets the wooden upper handguard via a steel handguard cap. The handguards of the BY-023 AKM are both real wood and there is a bulge in the lower handguard to fill out the hand and provide a comfortable firing grip, and to keep the visual language in line with that of the real AKM. The lower handguard surrounds the outer barrel and is retained by its own handguard cap which includes a sling point on the left side, ideally for hook-type slings.

The trunnion block also provides the mounting point for the classic AK tangent rear iron sight which provides multiple graduations for adjustment and a fine rear sight notch to align with the front sight post. The sight can be adjusted by pressing the button on the right side of the sight drum and moving the drum back and forth on its base. The lever on the right side is the handguard disassembly lever, and if you are a stickler for realism you will appreciate the fact that is fully functional!

Next up we find the receiver, which is constructed from stamped steel, just like the real AKM. The receiver has standard AK style controls on the right side, with a fire selector lever which doubles as a dust cover when in safe mode, and a charging handle attached to an authentic black dummy bolt carrier. In typical AK style, the first position on the fire selector is fully auto and the lowermost position is semi-automatic. Each fire mode is denoted by a crispy engraved authentic Russian Cyrillic marking, adding some realism to this already very realistic AKM. Over on the left side, we can find an AK quick detach mounting rail, allowing for authentic Russian scopes to be mounted, or 20mm Picatinny rail adapters if you prefer a more modern Western optic.

To access the adjustable HOP-up unit of the BY-023, simply hold the charging handle to the rear to reveal the slider adjustable HOP-up unit. The slider unit is known as one of the best designs out there, and that is the reason this unit has not changed in design since the original Tokyo Marui AK-47 AEG. The HOP-up allows you to tune the amount of backspin applied to your BBs to extend your range and set the AEG up for different weights of ammo. To increase the HOP effect, simply move the slider rearwards. Returning the slider to the front will reduce the HOP-up to its lowest setting.

The receiver top cover of the BY-023 AKM is also constructed from stamped steel and is the appropriate design for an AKM, with ribs stamped into the upper surface to provide additional strength whilst keeping the material thin and lightweight. The battery compartment is beneath the top cover. To access the battery compartment, simply press the button at the rear of the top cover and it should come straight off, revealing the mini-Tamiya connector. We recommend a 7.4V 1200mAh stick battery for the BY-023 AKM AEG but you can also use a 9.6V NiMH stick battery if you prefer a NiMH battery. With the battery connected and installed, you can place the top cover back onto the receiver, align the button with the hole in the rear of the top cover, and pull the charging handle to lock the cover down if necessary.

The pistol grip of the BY-023 is a standard AKM-type pistol grip finished in faux wood, with diamond checkering on either side to ensure the rifle stays firmly in your grasp in any weather condition. The trigger guard and magazine release can be found just ahead of the pistol grip, and are constructed from steel to provide solid magazine locking and ample rigidity. The magazine release is placed in the centre of the receiver and is accessible from either side of the AEG, allowing left or right-handed shooters easy access to this essential control. The magazine retention system of the AK platform is a "rock and lock" motion, requiring you to first index the front "hook" on the magazine inside the receiver, then rock the magazine to engage the catch.

The stock of the BY-023 is constructed from real wood with has an authentic colouration for AK furniture and the recognisable central groove present on AKM stocks but absent on earlier AK variants. The wood is coated with a matt varnish and has a deep and varied, giving the appropriate AK look without reflecting too much sunlight and giving your position away. The bottom of the stock also features a steel sling loop which pairs well with the front sling point on the lower handguard cap, providing appropriate mounting apparatus for a two-point sling, but ideally suited to an AK47/74 style sling.

Inside this affordable AK platform, we are surprisingly well equipped! The alloy version 3 gearbox is rocking 18:1 ratio steel gears running on 8mm slide bearings and a quick change spring system for easy power tuning. The inner barrel is a 6.05mm tightbore example, giving you a slight bump in FPS and improvements in accuracy potential when compared to the standard 6.08mm bore. Internally, the Double Bell AIMS is entirely based on the TM AK design, meaning aftermarket upgrades are a go, and its external build is based on the VFC/LCT build style, meaning maximum realism when it comes to AK AEGs!

Features

  • Full metal construction - Mostly steel
  • Real wood handguards and stock - Authentic AKM build
  • Matt varnished finish - Looks good, not too shiney
  • 6.05mm Tightbore inner barrel - Improved accuracy potential
  • 14mm CCW Male threaded outer barrel - Tracer/suppressor ready
  • Realistic handguard disassembly - Realism fans will love this!
  • Slider adjustable HOP-up unit - Great design, very effective
  • Version 3 gearbox - Steel gears running on 8mm ball bearing bushings
  • Quick change system - Change the main spring without disassembling the gearbox
  • Authentic mock rivets, Cyrillic markings across the design - Very realistic externals
  • Sling points front and rear - Front sling point on the handguard, rear on the stock
  • Top wired to a Mini-Tamiya battery connector - Easy battery access, no tools required
  • Faux wood AKM style textured pistol grip - Looks good, even next to real wood!
  • Ambidextrous magazine release - Easy reloads from either side of the rifle
  • Russian AK style side rail mount - Mount Russian AK optics or add a 20mm Picatinny optic with an adapter
  • Mock cleaning rod stored under the barrel - Realistic looks, don't use it to clean your Airsoft barrel though!
  • Compatible with AK47/74 AEG magazines - Ideally 7.62x39mm style but most will work fine

Package Includes

  • Double Bell BY-023 AKM AEG; Real Wood Furniture
  • 500rnd High capacity magazine
  • User manual

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 324fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Starter, Regular Player,
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.798kg
Weapon Length Collapsed
Length (Collapsed)
90cm
Weapon Length Extended
Length (Extended)
90cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Colour Wheel Greyscale
Secondary Colour
Real Wood
Real Wood
Construction Icon
Construction
Alloy muzzle brake, outer barrel, front sight, gas block, rear sight/trunnion, bolt. Steel receiver, top cover, gas tube, trigger guard, fire selector. Real wood stock & handguard. Polymer grip
Weapon Construction External
External Construction
Polymer
Alloy
Real Wood
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AK, AK47, AK Variant , Assault Rifle, AKM,
Magazine Style Icon
Magazine Style
AK Platform, Long Gun Magazine, Assault Rifle,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Slider
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and held to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Ambidextrous Magazine Release
  • Real Wood Furniture
  • Muzzle Brake
  • Textured Pistol Grip
  • sling points front and rear
  • Adjustable open iron sights
  • Russian AK style side rail mount
Rail System Icon
Rail System
AK Dovetail Rail
Icon Stock Positions
Stock Setting
Fixed
Weapon Length Extended
Stock Positions
1 Position
Sight Type Icon
Sight Type
Iron Sights , Tangent Open Iron Sight, Open Iron Sight,
Sling Plate Icon
Sling Options
Stock , Handguard ,

Barrel

Outer Barrel Length (in)
16.3''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.05mm
Inner Barrel Length
455mm

Magazine Specific

Magazine BB Capacity
Approx. 500 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V3 Gearbox
Wiring Icon
Gearbox Wiring
Top Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
No
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
324 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
04/07/2023

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
