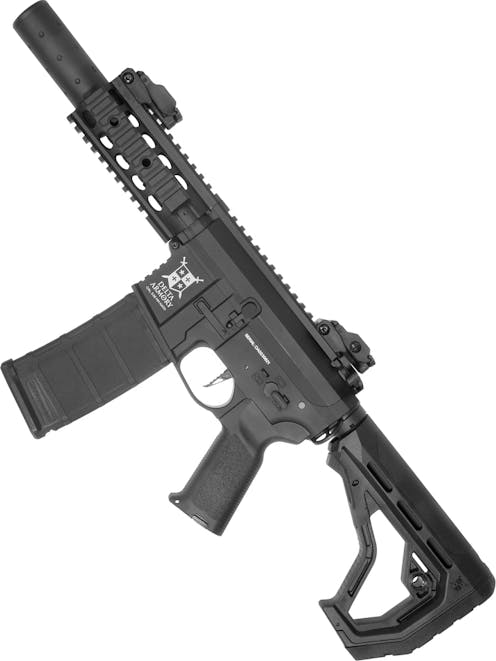

Delta Armory DA-A03-EGL ALPHA™ SilentOps CQB M4/AR-15 AEG

Delta Armory
Code:
£199.99
  • Full metal construction
  • 6.03mm Tightbore inner barrel
  • EAGLE™ MOSFET/ETU

If you seek a compact CQB platform with a solid full metal build, the Delta Armory DA-A03-EGL ALPHA™ SilentOps CQB M4/AR-15 AEG should be on your shopping list! This ALPHA™ line AEG is equipped with Delta's latest programmable ETU/MOSFET system, known as the EAGLE™.

The EAGLE™ transforms this already impressive little beast with a range of programmable fire modes, including 3 or 5-round burst mode, binary trigger, sniper delay, AUG mode, semi-auto only, adjustable precocking and adjustable trigger sensitivity. Being electronic, the trigger will never suffer a dreaded semi-auto lockup, making the DA-A03-EGL a fantastic CQB tool for fire supremacy. When it comes to outdoors, this little menace ain't no slouch! The pre-installed 6.03mm tightbore inner barrel and rotary HOP-up unit ensure it can still do the job when engaging targets at long range.

A generously equipped platform with full compatibility with aftermarket V2 gearbox upgrade parts, the DA-A03-EGL is one of the best-value SBR-style AR platforms out there currently. Mobile, agile and hostile despite its realistic full-metal build, the Delta Armory DA-A03-EGL ALPHA™ SilentOps CQB M4/AR-15 AEG is ready for any challenge that awaits it!

Full description

Description

If you need an advanced full-metal CQB platform, the DA-A03-EGL ALPHA™ SilentOps CQB M4/AR-15 AEG from Delta Armory is a fine choice. The "Silent Ops CQB" setup boasts an ultra-compact front end with an aluminium micro suppressor and pre-installed quad rail handguard, giving you space for accessories while prioritising agility and close-quarters domination.

Being an AEG of the Delta Armory ALPHA™ line, the DA-A03-EGL SilentOps CQB is considerably pre-upgraded straight out of the box, boasting a reinforced gearbox shell, SHS piston with a full steel tooth rack, a quick change ball bearing spring guide and a 6.03mm tightbore inner barrel paired with a rotary HOP-up unit for impressive long-range effectiveness. This variant also features the EAGLE programmable MOSFET/ETU system, providing programmable fire controls along with adjustable pre-cocking and trigger sensitivity. ALPHA™ line AEGs also boast full metal construction, making the DA-A03-EGL perfect for those who want an elite look and realistic heft in a honed CQB tool.

Starting at the front end we can find a pre-installed mini suppressor which covers the 210mm 6.03mm tightbore inner barrel, mounting to the 4-inch alloy outer barrel. This gives the DA-A03-EGL Silent Ops the look of an integrally suppressed AR with an extremely compact front end which makes it easy to take corners in CQB. The suppressor mounts to 14mm CCW male threading, due to the short inner barrel, a barrel extension will be required to mount a tracer unit.

Surrounding the suppressor we have a 4-inch aluminium 20mm Picatinny quad-railed handguard with 20mm rails at the 3, 6, 9 and 12 o'clock positions, ready for any 20mm accessories you choose to add to complete your mission. The upper rail runs back and meets the receiver rail seamlessly to allow for longer optical sights to be mounted, including red dot sight and magnifier combinations.

The receiver itself follows the familiar M4/AR-15 format but with a unique Delta Armory aesthetic and is constructed from flawlessly machined alloy for maximum realism. The fire selector is positioned just above the pistol grip and offers 3 modes of fire; SAFE, SEMI and AUTO, with a 90-degree throw between each mode. This makes the selector easy to adjust with your thumb, but not so easy that it can be changed accidentally. Being equipped with the EAGLE™ MOSFET also means you can program the controls for burst mode, binary trigger and even sniper delay, semi-auto only and AUG mode. Some of these may not be the best choice for this platform, but who are we to stop you?!

On the right side, we have the magazine release button on the magazine, which is accessible to a right-handed user with the tip of the trigger finger or by a lefty with the off-hand thumb. The mock bolt catch is located in the centre of the left side of the receiver, and while this is a dummy control which doesn't provide a function it is nonetheless a separate part to maintain the realistic appearance and avoid the tell-tale signs of being a replica. The dummy forward assist is present on the right side of the upper receiver, right where it should be, reprofiled to match modern "billet" style receivers with their dynamic angles. This control does nothing on an AEG but is included regardless on this DA-A03-EGL to keep the rifle faithful to real M4/AR-15 rifles.

The charging handle is located at the top rear of the receiver and serves to retract the mock bolt carrier and open the dust cover on the right side of the upper receiver, giving access to the rotary HOP-up unit inside. The HOP-up allows you to tune the flight path of your BBs and set the DA-A03-EGL up for different ammo weights, looking for the flattest trajectory possible. The use of the rotary adjuster style is a nice touch and futureproofs the DA-A03-EGL with the most modern HOP-up design for the M4/AR-15 platform, boasting an improved ability to hold its setting under the vibrations of firing and being adjustable in finer increments than the older "gear" adjuster design.

The pistol grip of the DA-A03-EGL boasts a refined grip angle for greater comfort when shooting with the stock fully collapsed and in more modern shooting stances. Each flank of the pistol grip includes fine crackle texturing, with additional linear texture on the front and back straps for perfect wet weather handling. The trigger is a "flat" trigger with a short finger ledge and textured front, making it ideal for pumping out rapid semi-automatic shots. The trigger guard is built into the receiver, improving strength and allowing gloved fingers easier access to the trigger than the standard AR flat trigger guard.

To the rear of the sling plate, we come to the M4/AR-15 buffer tube, which is constructed from the same strong high-density polymer used for the receiver. The buffer tube offers 6 positions of stock adjustment for the pre-installed Delta Armory battery stock, allowing you to set the stock at the perfect length to suit your body type and loadout.

The stock itself is a slimline design unique to the latest releases from Delta Armory. Featuring a QD sling socket on either side, a low-profile adjustment lever on the bottom together with conventional "footman loops", aka sling slots, the highlight of this stock is its rubber butt plate featuring lattice checkering and an angled section at the toe for providing grip in the most modern shooting stances, with or without body armour. If you have a preferred stock design, the stock can be swapped for alternative M4/AR-15 AEG stocks if you want to change up the looks!

The buffer tube also serves as the battery compartment for the DA-A03-EGL. To access the battery compartment, you will need to pull the stock adjustment lever (located on the bottom of the stock) out and hold it in place, after which you can slide the stock off the buffer tube, revealing a Deans/T-Plug battery connector inside. We recommend a 7.4v 1300mAh LiPo Stick Battery for the DA-A03-EGL though you may need to keep the stock extended to fit this battery inside.

The internals of the ALPHA™ series boasts more than their fair share of pre-upgraded parts, including a reinforced gearbox shell with quick change spring functionality and a 6.03mm tightbore inner barrel paired with a rotary HOP-up unit, offering higher FPS with the same spring and finer HOP-up adjustment increments so you can get your HOP-up set perfectly for your chosen ammo weight.

Inside the version 2 gearbox, we are treated to 18:1 ratio steel gears running on 7mm ball bearing bushings, an SHS piston with a full rack of steel teeth and an SHS tappet plate for reliable feeding, even at high speed. The new EAGLE™ MOSFET system takes centre stage, offering more programmable options than ever before, including 3 or 5-round burst mode, binary trigger, sniper delay, AUG mode, semi-auto only and precocking. The ability to program this wide variety of modes using the trigger and selector of the gun itself gives the DA-A03-EGL the edge over practically any other platform in this price range.

If a full metal CQB platform with a programmable MOSFET is on your to-buy list, the Delta Armory DA-A03-EGL ALPHA™ SilentOps CQB M4/AR-15 AEG is a fantastic choice. The EAGLE™ MOSFET puts it a league above any other CQB platform in the same price range. With generously pre-upgraded internals and superb, high-quality materials used throughout the platform, the DA-A03-EGL is perfect for realism-focussed CQB specialists!

Features

  • 6.03mm Tightbore inner barrel - Great accuracy potential
  • Delta Armory ALPHA™ AEG - Full metal construction
  • Integrated suppressor - Stealthy styling, perfect for sneaky types
  • 14mm CCW Male threaded barrel - Swap the suppressor for your choice of alternative muzzle device
  • 20mm Picatinny quad railed handguard - Ready for 20mm Picatinny accessories mounted at 3, 6, 9 or 12 o'clock
  • Flip-up iron sights pre-installed - Mounted to the top rail, press textured buttons to flip up
  • Extended charging handle latch - Easy access to the HOP-up unit for adjustment
  • 20mm Picatinny railed receiver - Ready for a red dot sight or rifle scope
  • Rotary adjustable HOP-up unit - Easy to adjust in fine increments, holds its setting well long-term
  • 6-Position M4/AR-15 buffer tube - Adjust the stock to suit your body type perfectly
  • Crane battery stock - Plenty of space for nunchuck batteries, QD sling sockets on each side
  • Ergonomic pistol grip with reduced grip angle - Great for modern shooting stances, very comfy
  • Reinforced version 2 gearbox -
    • SHS Piston with steel full tooth rack
    • SHS Tappet plate
    • Quick change spring guide
    • Steel 18:1 gearset
    • 7mm Ball bearing bushings
  • EAGLE™ Programming instructions available here
  • EAGLE™ MOSFET Functions:
    • 3 or 5 Round burst mode
    • Binary trigger
    • Semi-automatic only
    • Sniper delay
    • AUG Mode
    • Active braking
    • Pre-cocking
  • Rear wired - Deans connector - Recommended battery: 7.4V 1300mAh LiPo in Stick config.
  • Compatible with M4/AR-15 AEG magazines - Plenty of spares available

Package Includes

  • Delta Armory DA-A03-EGL ALPHA™ SilentOps CQB M4/AR-15 AEG
  • 120rnd Mid-cap magazine

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
No, Yes,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 310fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Starter, Regular Player,
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.315kg
Weapon Length Collapsed
Length (Collapsed)
62cm
Weapon Length Extended
Length (Extended)
70cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Construction Icon
Construction
CNC Aluminium handguard. Aluminium suppressor. Alloy outer barrel, receiver & buffer tube. High density polymer grip & stock. Steel sling plate
Weapon Construction External
External Construction
Polymer
Alloy
Aluminium
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR, M4 / AR-15 / M16, Assault Rifle, M4/AR-15 AEG,
Magazine Style Icon
Magazine Style
Long Gun Magazine, Assault Rifle, M4 / AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Programmable
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and held to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Suppressor
  • Flip-Up Ironsights
  • AR Buffer Tube
  • Railed Receiver
  • Sliding Stock
  • Ergonomic Pistol Grip
  • Threaded Outer Barrel
  • QD Sling Point
  • Ambidextrous Sling Plate
  • Enlarged Trigger Guard
  • Extended Charging Handle
  • Sling point on stock
  • Flat trigger
Rail System Icon
Rail System
20mm RIS / RAS , 20mm Railed Receiver,
Icon Stock Positions
Stock Setting
Sliding , Multi-Position ,
Weapon Length Extended
Stock Positions
6 Position
Sight Type Icon
Sight Type
Iron Sights , Aperture Iron Sight,
Sling Plate Icon
Sling Options
Buffer Plate , Stock , QD , Loop ,

Barrel

Outer Barrel Length (in)
4''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
210mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 120 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
310 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG Blaster BBs
Notepad Icon
Test Date
05/10/2024

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
