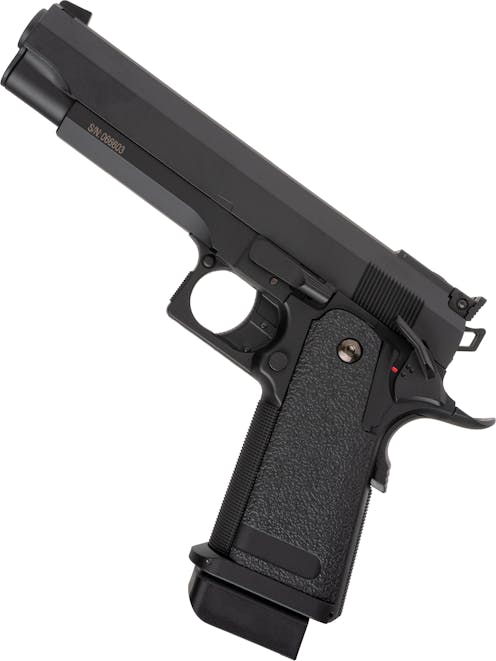

CYMA CM.128 Hi-Capa AEP

CYMA
Code:
£74.99
  • Great Starter Gun
  • Electric Pistol
  • Hi-Capa Style Design

An electric powered non-blowback Airsoft pistol, also known as an AEP (Automatic Electric Pistol), designed to function and work like the popular Hi-Capa style pistol.

Full description

Description

The pistol features a full polymer construction, with an alloy gearbox and barrel, and comes complete with the battery and charger: just add BBs and you're ready to go!

The pistol features a 36rnd Magazine capacity, with the magazine being slightly longer than a standard AEP mag, and the extra length is hidden by the mock base plate to make it look the same as the Gas Variant of the pistol. Internally the pistol features an adjustable Hop Up which imparts spin on the BB for range and accuracy, and is adjustable to support a range of BB weights. Due to the standard Gas version of this pistol being bulky and large the electric clone does not suffer the fate of other AEPs, and looks like a normal pistol rather than looking too wide.

This pistol is perfect for those Airsofters looking to get into the game, and are looking for a pistol that will work all year round even in colder temperatures. The pistol is also great for those looking to dip their toes into Airsoft, or for those who want a backyard plinker for a bit of target practice.

Features

  • Electric Powered Airsoft Pistol, also known as an AEP
  • Fires in Semi and Fully Automatic
  • 36rnd Magazine Capacity, slightly larger than standard AEP
  • Mock Extended Magazine Design
  • Trigger Disconnect Safety System
  • Textured Pistol Grip
  • Integrated Adjustable Rear Ironsight and fixed Front Ironsight
  • Adjustable hop-up unit for range and accuracy
  • Slide locked in place by mock slide lock
  • Mock enlarged magazine base plate
  • Mock Beavertail Safety
  • Great Beginner Pistol

Package Includes

  • CYMA CM.128 Hi-Capa AEP
  • Magazine
  • Instruction Manual

Magazine Support

Please note that although this pistol does support other AEP magazines, the magazine which comes with the pistol is longer. This means that to put in the slightly shorter standard AEP magazine from other pistols you will need to push your finger inside to seat the magazine in place, though they will fit.

Safe removal of the slide

As you look at the pistol showing the slide lock / release lever, this is most important in order to not damage the pistols frame.  With the pistol in your right hand with the barrel pointing to the left, move this lever downward, it only moves a little bit, but in doing this, it allows the top slide to be moved forward around 5mm, this is crucial in order to remove the top slide correctly without breaking the fragile rear tags that are part of the gun lower frame.

Once you have moved the slide forward on its frame, lift it up and forward to remove it from the pistol, and you can then fit your battery.

To re-fit the slide, please make sure you position the top slide onto the frame in the same forward position, before moving the slide backward into its correct position, once the slide is backward as far as it will go, ONLY THEN, move the slide lock / slide release lever back into position.

DO NOT force the slide straight down onto the gun, doing this will break the two tabs that hold the slide onto the gun, and will invalidate any warranty on the pistol.

All AEP pistols are checked by us before sending to the end user to ensure they are in good condition with the tabs intact as such we would unfortunately be unable to accept the return of the item if it has been damaged in this manner.

Specification

General

Weapon Construction External
Weapon Type
Pistol
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 164fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Speed Loader
Skill Level Icon
User Skill Level
Starter
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 0.634kg
Weapon Length Collapsed
Length (Collapsed)
23cm
Weapon Length Extended
Length (Extended)
23cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Polymer Slide, Frame, with Alloy Gearbox and Barrel
Weapon Construction External
External Construction
Polymer
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
Hi-Capa
Magazine Style Icon
Magazine Style
AEP
Fire Select Icon
Fire Selector
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Disconnect
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Suggested BB Weight
0.2g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Gear
Hop-Up Unit Location Icon
Hop-Up Location
Adjustable when top mock slide cover removed

Furniture

Rail System Icon
Rail System
None
Sight Type Icon
Sight Type
Open Iron Sight
Sling Plate Icon
Sling Options
None

Magazine Specific

Magazine Type
Low Capacity , Spring Loaded, AEP,
Magazine BB Capacity
Approx. 36 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Digital Trigger Icon
Gearbox Electronic Trigger
No
Motor
Airsoft Motor Icon
Motor Type
AEP
Battery Specific
Battery Connector
AEP Battery Connection
Compatible Battery
Compatible Battery Type
Ni-Mh
Compatible Battery Configuration
AEP
Compatible Battery Voltage
7.2v

Pistol Specific

Construction Icon
Slide Material
Alloy

Product Testing Data

Notepad Icon
Test Description
Using 0.20g BB
Notepad Icon
Tested Using
Blaster 0.2g BBs
Notepad Icon
Test Date
12/09/18

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
