CYMA CM.041SD6 High-Speed SMG-5 AEG

CYMA
Code: …
£229.99
  • CNC Steel Gears (13:1)
  • 25 Rounds Per Second
  • Reinforced Ver. 2 Gearbox

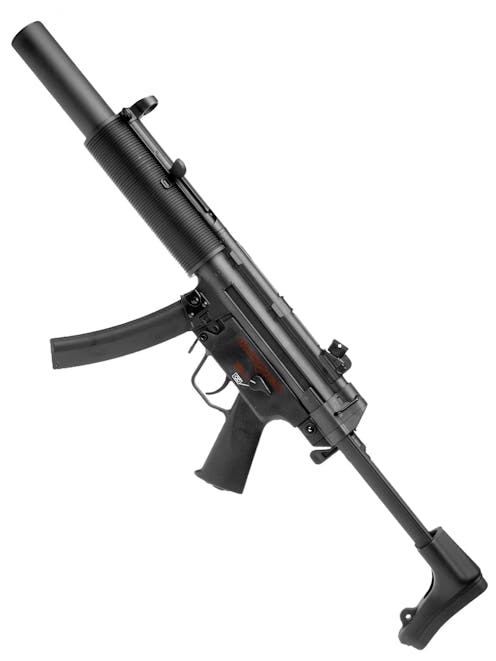

The CYMA CM.041SD6 High-Speed is an SMG-5 Platform Airsoft Electric Gun, which has been upgraded internally to provide an awesome Rate of Fire. A reinforced Version 2 Gearbox awaits inside, with goodies such as Steel Gears, Steel Rack Piston and other anodised CNC internals, to create an SMG-5 that performs like no other.

Full description

Help
Size guide

Description

This Airsoft Electric Gun is an SMG-5 Platform replica, complete with Integrated Suppressor for a (slightly) quieter operation and maximum tactical aesthetic. As an SMG-5 replica, it features Ambidextrous Fire Controls, making this a sure choice for both left and right handed players. Being a High Speed Airsoft Gun, it has a high Rate of Fire (25RPS) making it an effective tool for outdoor play, but the Sliding Stock and compact nature of the Gun will make it just as effective in tight spaces too.

Externally, this replica features an Integrated Suppressor which can be removed from the Gun, but has a proprietary fitment and won't accept other Suppressors. The Handguard is a typical SMG-5 ribbed designed that provides good grip and comfort. The Sliding Stock at the rear can be extended or closed depending on your needs; very useful for indoor/outdoor transitions. The Fire Selector and Magazine Release are Ambidextrous, meaning they can be accessed from either side of the Gun, making it a strong choice for left handed players who struggle to adapt to a standard Rifle. The top of the Gun features Rotary Drum Ironsights that can be set to different apertures, for varying degrees of accuracy. The top of the Receiver has slots to accept a proprietary 20mm Rail Adapter (sold separately), should you wish to install Sights and Scopes.

The CM.041SD6 High Speed features an Adjustable HOP Unit, which can be used to control the amount of backspin applied to your BBs, and theoretically improve range and consistency with the right BB weight and settings. To access this, just lock the Charging Handle to the rear (by pulling it back and lifting it up), and the Slider-type HOP Adjust can be found inside the Breech/behind the Mock Bolt. The Gun is Front Wired and has plenty of space for most sizes of Stick/Crane LiPo Batteries. To access the Battery Compartment, remove both low profile lugs from the Handguard, and slide the entire sleeve forwards, over the Suppressor. Inside you will find a Mini Tamiya Connector.

Internally, this Gun has had a full update inside the reinforced Version 2 Gearbox, with the likes of a CNC Steel Gear Set with a 13:1 Ratio to keep it turning over. The Spring Guide features Bearings to reduce Spring-Torsion, the Piston and Cylinder Head are 'Silent Types', made from Aluminium and Anodised blue. The Piston Head features bearings, the Cylinder Head is double O-Ring sealed and a High Speed Motor provides the Rate of Fire that makes this replica awesome.

Included in the box is the Gun itself, and a 130rnd Mid Cap Magazine which is loaded using a Speedloader. The Mag will then feed BBs into the Gun until empty. The CYMA CM.041SD6 is perfect for any fan of the SMG-5 range, especially if you're looking for an integrally Suppressed model. With awesome internal components and a high Rate of Fire, what's not to love?

Features

  • SMG-5 Platform Airsoft Gun
  • Electric Powered Airsoft Gun
  • Reinforced Version 2 Gearbox
  • Integrated Suppressor
  • Rotary Drum Ironsights
  • Slots for Upper Receiver Rail Adapter
  • Front & Rear Sling Loops
  • Ambidextrous Fire Selector
  • Ambidextrous Magazine Release
  • Multi-Position Sliding Stock
  • Slider Type HOP Adjustment
  • Functional Mock Charging Handle
  • 130rnd Mid Cap Magazine Included
  • Steel Gear Set Inside (13:1 Ratio)
  • Reinforced 7mm Bearings
  • Spring Guide w/ Bearings
  • Polymer Piston w/ Metal Rack
  • Silent Piston & Cylinder Head
  • Double O-Ring Sealed Cylinder Head
  • Piston head w/ Bearings
  • High Speed Motor

Package Includes

  • CYMA CM.041SD6 High-Speed
  • 130rnd Mid Cap Magazine

Specification

General

Weapon Construction External
 Weapon Type
Submachine Gun
Over 18 Only Icon
 Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
 Defence / UKARA Required
Yes, No,
FPS Icon
 FPS (Feet Per Second), using 0.20g BB
Approx. 328fps ± 10%, using 0.20g BB
Site Legal Icon
 Site Legal, using 0.20g BB
Yes
Package
 Included Items
Magazine
Skill Level Icon
 User Skill Level
Regular Player
Patrol Base - Warning Icon
 Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
 Weight (KG)
Approx. 3kg
Weapon Length Collapsed
 Length (Collapsed)
66cm
Weapon Length Extended
 Length (Extended)
80cm

Construction

Colour Wheel Greyscale
 Primary Colour
Black
Construction Icon
 Construction
Alloy upper receiver and outer barrel assembly. Polymer lower receiver, stock and handguard.
Weapon Construction External
 External Construction
Polymer
Alloy
Gearbox Icon
 Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
 Powered By
Electric
Blowback Icon
 Blowback
None
Weapon Platform
SMG-5
Magazine Style Icon
 Magazine Style
SMG-5
Fire Select Icon
 Fire Selector
PatrolBase | Fire Select Safe
 Safe
Patrol Base | Fire Select - Semi Automatic
 Semi Automatic
Patrol Base | Full Automatic
 Full Automatic
Weapon Safety Features Icon
 Safety Features
Trigger Lock
Shooter Configuration Icon
 Shooter Configuration
Ambidextrous
Weapon Configuration Icon
 Weapon Configuration
Standard
Weapon Scale Icon
 Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
 Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
 Hop-Up Adjuster
Slider
Hop-Up Unit Location Icon
 Hop-Up Location
Behind mock bolt when charging handle to the rear

Furniture

Weapon Furniture Icon
 Furniture
  • Suppressor
  • Ambidextrous Magazine Release
  • Sliding Stock
  • Ambidextrous Fire Selector
Icon Stock Positions
 Stock Setting
Sliding
Weapon Length Extended
 Stock Positions
2 Position
Sight Type Icon
 Sight Type
Rotary Drum Iron Sight
Sling Plate Icon
 Sling Options
Loop

Barrel

Inner Barrel Diameter
6.03mm
Inner Barrel Length
220mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 130 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
 Gearbox Version
V2 Gearbox
Wiring Icon
 Gearbox Wiring
Front Wired
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
 Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
 Test Description
328FPS
Notepad Icon
 Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
 Test Date
25/02/21

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 328fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
