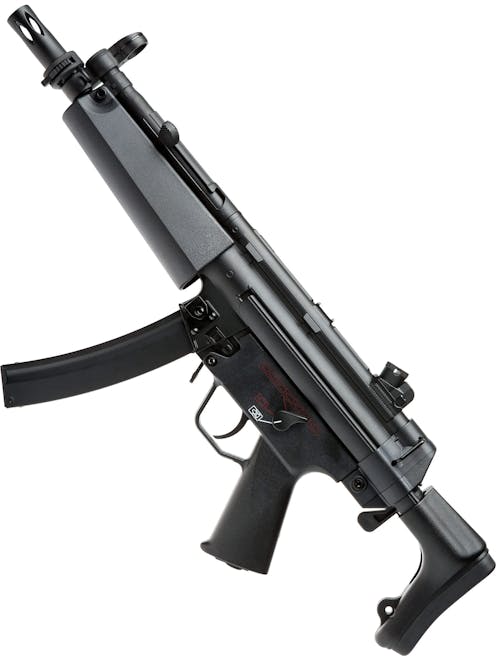

CYMA CM.041J High-Speed SMG-5 AEG

CYMA
Code: …
£209.99
  • CNC Steel Gears
  • High Rate of Fire
  • Full Metal Replica

An Electric Powered SMG-5 replica with a High Cycle Gearbox, which can output 6mm BBs at a muzzle velocity of 325FPS, at a Rate of Fire of over 1000RPM. Built to a very solid standard, this Full Metal replica weighs a surprising amount which makes it feel very realistic in the hands. If you love the SMG-5 shape, but have been put off by the poor performance of previous models, then the CYMA CM.041J High Speed will definitely appeal to you.

Full description

Help
Size guide

Description

The CYMA CM.041J is made with a Full Metal construction, which means that the Outer Barrel Assembly, Upper Receiver, Fire Controls and Stock Guides are made from Alloy, with only the Handguard, Lower Receiver and Stock pad being made using Polymer. This brings the total weight of the replica to 2.95kg, which is very surprising for such a compact SMG.

The CM.041J features a Version 2 Gearbox, and a Front Wired Design. This means that your Battery should be installed underneath the Handguard, which given the compact space would be best suited to a 7.4v Crane Stock LiPo Battery. The Charging Handle is just for show, but can be moved and locked to the rear for a bit of added fun. This also gives access to the HOP Unit behind the mock bolt, which can be used to add backspin to your BBs and improve their flight path. Please avoid temptation to 'slap' the Charging Handle into battery as seen in the movies, as we sadly can't warranty Hollywood-Hero reloads.

Another very useful aspect of the CM.041J are the Fully Ambidextrous Fire Selector and Magazine Release, which make it comfortable and usable for both Left and Right Handed Players.  A Sliding Stock at the rear of the Gun can be set to multiple positions, which makes it comfortable for any shape or size of user. The Stock also has a Rubber Butt Pad to provide grip when shouldering the replica. A Sling Loop can also be found on the Stock, to be used in conjunction with the front or middle Sling Loop to make it easier to carry throughout the day, and also to allow you to use a secondary with ease. The top of the Receiver features Rotary Drum Ironsights as is expected, but also has slots on the Receiver to accept a 20mm Rail Adapter.

This replica is a High Cycle / High Speed model, which means that it cycles twice as fast as a standard replica, thanks to a specific Gear setup that engages with the Piston twice as often. The Version 2 Gearbox has been modified to accommodate this increase in performance, including a Reinforced Gearbox Frame, Full Steel Teeth Polycarbonate Piston, CNC Machined Steel Gear Set (with a ratio of 13:1), CNC Machined Aluminium Silent Cylinder and Piston Head Set  (Piston Head w/ Bearings and Double O-Ring Sealed Cylinder Head), Spring Guide w/ Bearings and a High Speed Motor. This all comes together to provide an SMG-5 platform Replica that can absolutely shred through the enemy team thanks to a high performance Gearbox.

Included in the box is a 130rnd Mid-Cap Magazine which is filled using a Speedloader, and will feed into the Gun until empty, unlike High Cap Magazines. If you're looking for something compact for CQB, which is different from your typical M4 but can still outperform (or at least keep up with) them, then the CYMA CM.041J High Speed Series are perfect for you.

Features

  • SMG-5 Platform
  • High Speed Gearbox
  • >1000 Rounds Per Minute
  • 325FPS w/ 0.2g BBs
  • Full Metal Construction
  • Reinforced Gearbox Frame
  • Full Steel Rack Polycarbonate Piston
  • CNC Machined Steel Gear Set (13:1)
  • CNC Machined Aluminium Silent Cylinder
  • CNC Machined Aluminium Silent Piston Head
  • Piston Head w/ Bearings
  • Double O-Ring Cylinder Head
  • Spring Guide w/ Bearings
  • High Speed Motor
  • Front Wired / Mini Tamiya
  • Version 2 Gearbox
  • Sliding Four Position Stock
  • Ambidextrous Fire Controls
  • Suits Left or Right Handers
  • Functional Mock Charging Handle
  • Adjustable HOP (Slider Type)
  • Rotary Drum Ironsights
  • Slots on Receiver for Rail Adapter
  • Paddle Type Mag Release
  • Front, Rear and Mid Sling Loops
  • Removable Flash Hider
  • Alloy Upper Receiver
  • Alloy Outer Barrel Assembly
  • Alloy Stock Guides / Fire Controls
  • Polymer Lower Receiver
  • Polymer Handguard & Stock Pad
  • Thick Rubber Butt Pad

Package Includes

  • CYMA CM.041J High Speed Series
  • 130rnd Mid Cap Magazine

Specification

General

Weapon Construction External
 Weapon Type
Submachine Gun
Over 18 Only Icon
 Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
 Defence / UKARA Required
Yes, No,
FPS Icon
 FPS (Feet Per Second), using 0.20g BB
Approx. 325fps ± 10%, using 0.20g BB
Site Legal Icon
 Site Legal, using 0.20g BB
Yes
Screwdriver Icon
 Pre-Built
Yes
Package
 Included Items
Magazine
Skill Level Icon
 User Skill Level
Regular Player
Patrol Base - Warning Icon
 Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
 Weight (KG)
Approx. 2.95kg
Weapon Length Collapsed
 Length (Collapsed)
58cm
Weapon Length Extended
 Length (Extended)
72cm

Construction

Colour Wheel Greyscale
 Primary Colour
Black
Two Tone Icon
 Pre Two-Toned
No
Construction Icon
 Construction
Alloy outer barrel assembly, upper receiver, fire controls and stock guides. Polymer handguard, lower receiver and stock pad.
Weapon Construction External
 External Construction
Polymer
Alloy
Gearbox Icon
 Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
 Powered By
Electric
Blowback Icon
 Blowback
None
Weapon Platform
SMG-5
Magazine Style Icon
 Magazine Style
SMG-5
Fire Select Icon
 Fire Selector
PatrolBase | Fire Select Safe
 Safe
Patrol Base | Fire Select - Semi Automatic
 Semi Automatic
Patrol Base | Full Automatic
 Full Automatic
Weapon Safety Features Icon
 Safety Features
Trigger Lock
Shooter Configuration Icon
 Shooter Configuration
Ambidextrous
Weapon Configuration Icon
 Weapon Configuration
Standard
Weapon Scale Icon
 Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
 Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
 Hop-Up Adjuster
Slider
Hop-Up Unit Location Icon
 Hop-Up Location
Behind mock bolt when charging handle to the rear

Furniture

Weapon Furniture Icon
 Furniture
  • Ambidextrous Magazine Release
  • Sliding Stock
  • Ambidextrous Fire Selector
Icon Stock Positions
 Stock Setting
Sliding
Weapon Length Extended
 Stock Positions
4 Position
Sight Type Icon
 Sight Type
Rotary Drum Iron Sight
Sling Plate Icon
 Sling Options
Loop

Barrel

Inner Barrel Diameter
6.03mm
Inner Barrel Length
220mm

Magazine Specific

Magazine Type
Medium Capacity , AEG,
Magazine BB Capacity
Approx. 130 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
 Gearbox Version
V2 Gearbox
Wiring Icon
 Gearbox Wiring
Front Wired
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
 Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
 Test Description
325FPS
Notepad Icon
 Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
 Test Date
21/10/20

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 325fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
