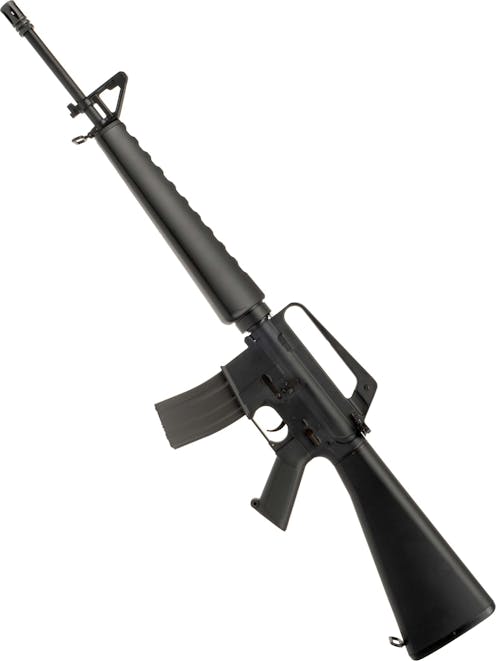

CYMA CM.009B M16A1 AEG; Platinum Edition

CYMA
Code: CYM-01-027283-00
£219.99
  • Full metal construction
  • Platinum Edition: MOSFET pre-installed
  • Real world accurate M16A1 replica

If you're preparing for jungle warfare or you're a fan of iconic 20th-century firearms designs, the M16A1 is what you need! The CYMA CM.009B is a near-perfect replica of the real steel M16A1, the refined version of the original M16 which replaced the M14 in US Army and Marine Corps service. Boasting full metal construction and some serious attention to detail, the CM.009B is perfect for reenactment or skirmishers who love a classic with performance to rival the best.

Inside, you will find exactly what you might expect for a CYMA Platinum AEG. The Version 2 gearbox is equipped with a ball bearing spring guide, a polycarbonate piston with a full steel tooth rack, a CNC aluminium silent piston head, a CNC aluminium silent cylinder head and steel gears running on 8mm ball bearing bushings. All these upgraded parts are backed up by a high torque Neodymium magnet motor and the CYMA Platinum MOSFET, providing exceptional performance in every aspect. If you're born to kill and walk the walk, the M16A1 is calling your name.

*Fortunate Son plays quietly in the distance*

Full description

Description

The M16A1 is what everyone pictures when they imagine an assault rifle, and it is no surprise! This platform is the granddaddy of the M4A1 and once served with all the big names, from the US Army and Marine Corps during the Vietnam conflict to our very own SAS and Royal Marine Commandos during the Falklands Conflict and numerous other outings.

While it may be getting long in the teeth, the lightweight, utilitarian design of the M16A1 makes it a fantastic platform for anyone looking for a long range primary which is still easy to move with and doesn't become burdensome to carry over long-duration ops. This, the CYMA Platinum M16A1 also shoots like an absolute beast, boasting a 509mm 6.03mm tightbore inner barrel, alloy rotary HOP-up unit, pre-installed MOSFET and a high torque motor for the snappy response any accuracy focussed long range setup needs. Whether you're working on your Vietnam setup, Falklands kit or you simply have a taste for the classics, the CYMA CM.009B is a superb choice!

Starting at the front, we have a steel M16A1 type birdcage flash hider mounted to 14mm CCW male barrel threads. This is the perfect device for the rifle as it comes, though if you want to add a tracer unit or suppressor you can thanks to the common 14mm CCW male barrel threading.

Following the super skinny 20-inch pencil profile outer barrel rearwards, we come to the front sight/gas block assembly which includes the front sight post, bayonet lug and front sling point. The front sling point can be paired with the rear sling point on the bottom of the stock to mount a two-point sling, making carrying the rifle easier, especially when used with a sidearm. The front sight post itself is adjustable for elevation for a perfect zero, with windage adjustments being applied on the rear sight. The bayonet lug is compatible with rubber dummy bayonets so if you want a proper Airsoft melee experience, this is the gun for the job!

Behind the front sight, we come to the handguard which is the iconic triangular M16A1 handguard, completing the old-school look. These handguards are remarkably comfortable, with a gentle taper from the front to the rear, giving you plenty of options when it comes to where and how you hold the rifle. Visible through the ports on the top of the handguard, we can see a realistic dummy gas tube which runs from the front sight all the way back to the receiver, just like the real thing.

Following the handguards, we arrive at the receiver which is 100% period accurate for the M16A1. The finish is a gun metal grey paint, matching the real rifle perfectly. The lower receiver is an A1 fully fenced type with the correct lack of strengthening around the front receiver pinhole and a full magazine release fence machined in, giving it that distinctive A1 profile.

The fire selector is on the left side and lies comfortably beneath the thumb when taking a firing grip. The markings "SAFE- SEMI-AUTO" appear on both sides of the receiver and are machined in, pairing well with the period accurate nature of the CM.009B. The magazine release can be found on the right side of the receiver, protected from accidental magazine drops by the "magazine catch fence", which is machined as part of the lower receiver, preventing your mag from falling out if your rifle rubs against your gear as you move.

The upper receiver is an A1 type, featuring a fixed A1 carry handle with A1 aperture sights on the top and a "teardrop" forward assist but no brass deflector on the right side, as should be expected for a realistic M16A1 replica. The charging handle can be found at the top rear of the receiver, and when pulled, locks the mock bolt to the rear giving you access to the rotary adjustable HOP-up inside the ejection port. The HOP-up unit allows you to tune the CM.009B for your choice of ammo weight, looking for the flattest possible trajectory. When you have completed your adjustment, the mock bolt can then be released using the "ping pong paddle" bolt release, found on the left side of the receiver. A nice touch adding to the realism of this already super-realistic AEG!

The pistol grip of the CM.009B is an A1 type, with checkering on both sides to provide a grippy surface without the finger groove found on A2 grips, which some find less comfortable. The grip has a heat sink motor base plate, allowing the AEG's motor to cool between extended strings of fire. On the left side of the lower receiver you will find your unique serial number, an excellent feature for theft prevention and to help you identify which rifle is yours in the safe zone.

Bringing up the rear, we have an M16A1 fixed stock with a sling point mounted on the bottom, ideally paired with the front sling point and a two-point rifle sling. The stock is constructed from high density polymer and features a quick-access battery compartment and a textured butt plate for enhanced grip. To access the battery compartment, simply pull the sliding catch at the top of the hatch downwards, after which the hatch can be opened, revealing a Deans/T-plug battery connector inside. For an easy fit and great performance, we recommend an 11.1V 1300mAh LiPo battery in stick configuration but the stock can potentially house larger batteries if you remove the butt plate entirely.

The internals of the CM.009B are considerably upgraded; exactly what you would expect from a CYMA Platinum AEG. The version 2 gearbox inside features 8mm steel ball bearing bushings, a ball bearing spring guide, an aluminium silent piston and cylinder head and a polycarbonate piston with steel teeth. This combination of parts is proven to be reliable, and a considerable upgrade over most AEGs in this price range. To get all this good stuff spinning quickly and reliably, a high torque motor with Neodymium magnets is installed, improving trigger response and allowing for stronger springs to be used.

The gearbox also features a quick change spring system, accessible through the stock using the included Allen key, allowing the velocity to be increased or reduced depending on your local site's limits. To keep these high end internals well-timed and running at their best, CYMA has pre-installed a MOSFET processor unit, The MOSFET provides active braking to prevent your gearbox from over spinning and protect the electrical components inside, as well as raising the rate of fire and trigger response. The inner barrel is a 6.03mm tightbore measuring 363mm in length, giving this AEG excellent accuracy and consistency, even more so with its generous 509mm overall length.

If you are keeping your eye out for a long range platform which is light as a feather and ideally suited to jungle/woodland warfare, the CYMA CM.009B is ideal for the role. Cast aside your needs for optics, flashlights and other heavy, unnecessary clobber for an agile long-ranged primary built like the real thing, with the iconic looks of the original big boy AR-15!

Features

  • Full metal construction
  • 6.03mm Tightbore inner barrel - Great accuracy potential
  • 14mm CCW Male threaded outer barrel - Tracer/suppressor ready
  • Steel M16A1 Birdcage flash hider - Authentic looks, matches the real M16A1 perfectly
  • 20-inch Pencil profile outer barrel - Alloy construction, super light and fast to point
  • M16A1 Triangular handguards - Comfortable and realistic, iconic M16A1 styling
  • Slip ring handguard attachment method - Compatible with aftermarket Delta ring/slip ring handguards
  • Sling point on the front sight - Pair it with the rear sling point on the stock to mount a two-point sling
  • "A1" Style receiver - Fixed "A1" carry handle, teardrop forward assist, no brass deflector, fenced mag catch
  • Ghost ring iron sights - Front sight adjustable for elevation, rear sight windage adjustable
  • Compatible with 20mm Picatinny rail mounts for fixed carry handles
  • Rotary adjustable HOP-up unit - Alloy construction, accessible with the charging handle pulled back
  • "A1" Style textured pistol grip - Accurate to the real M16A1, more comfortable than the "A2" for most users
  • Fixed "A1" rifle stock - Sling point on the bottom, loads of room for a big battery inside
  • Easy access battery compartment - Flip the door on the butt plate open to access
  • Version 2 Gearbox -
    • Quick change spring system
    • CYMA Platinum MOSFET
    • Polycarbonate piston with full steel tooth rack
    • Steel gearset running on 8mm ball bearing bushings
    • CNC Aluminium silent piston head
    • CNC Aluminium silent cylinder head
    • Ball bearing spring guide
    • Stainless steel type 1 cylinder
  • Rear wired: Deans/T-plug battery connector - Recommended battery: 11.1V 1300mAh LiPo
  • Compatible with M4/AR-15 AEG magazines

Package Includes

  • CYMA CM.009B M16A1 AEG; Platinum Edition
  • 300rnd High-capacity magazine
  • User manual
  • Allen key

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 350fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Regular Player
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 2.496kg
Weapon Length Collapsed
Length (Collapsed)
99cm
Weapon Length Extended
Length (Extended)
99cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Construction Icon
Construction
Steel flash hider & body pins. Alloy outer barrel, receiver and trim parts. High density polymer stock, pistol grip & handguard.
Weapon Construction External
External Construction
Polymer
Alloy
Steel
Gearbox Icon
Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR, Assault Rifle,
Magazine Style Icon
Magazine Style
Long Gun Magazine, Assault Rifle, M4 / AR Platform,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock bolt carrier, accessible when the charging handle is pulled and the mock bolt is locked to the rear.

Furniture

Weapon Furniture Icon
Furniture
  • Fixed Stock
  • Bird Cage Flash Hider
  • Textured Pistol Grip
  • Ghost Ring Ironsight
  • sling points front and rear
  • AR Triangle front sight with sling loop
  • Bayonet lug
  • Fixed "A1" Carry Handle
Rail System Icon
Rail System
None , Railed Mount Available ,
Icon Stock Positions
Stock Setting
Fixed
Weapon Length Extended
Stock Positions
1 Position
Sight Type Icon
Sight Type
Iron Sights , Aperture Iron Sight,
Sling Plate Icon
Sling Options
Stock , Loop , Gas Block,

Barrel

Outer Barrel Length (in)
20''
Icon Thread Type
Outer Barrel Thread Type
Male
Icon Thread Direction
Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
509mm

Magazine Specific

Magazine Type
High Capacity, Wheel Wound, AEG,
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V2 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
Yes
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
High Torque
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
11.1v

Product Testing Data

Notepad Icon
Test Description
350 FPS +/- 10%
Notepad Icon
Tested Using
0.2g ASG BLASTER
Notepad Icon
Test Date
18/12/2023

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
