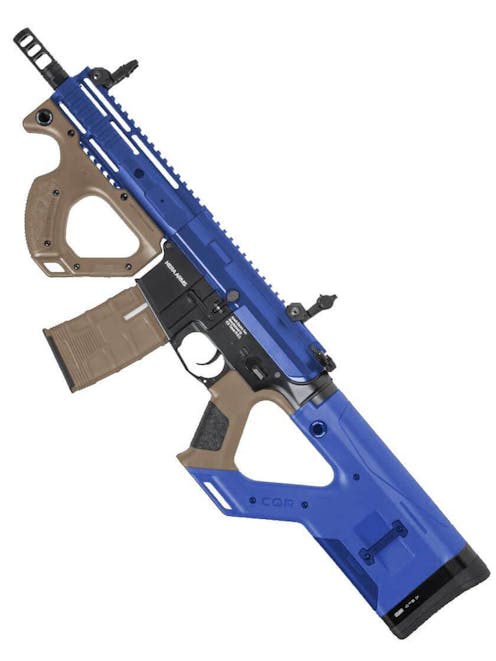

ASG HERA ARMS CQR AR-15 Milspec SSS Edition Rifle, Half-Tan

ASG HERA ARMS CQR AR-15 Milspec SSS Edition Rifle

Code: …

€490.99

Quantity

5 / 5 Read 1 customer review 1 review

Intelligent MOSFET
Officially Licensed
SSS Gearbox

If you're looking for an AR-15 with a unique look, you've found it! Built in partnership between ActionSportGames, ICS and HERA ARMS this rifle is an Airsoft gun like no other. Based on the AR-15 Mil-spec variant of the HERA ARMS CQR this rifle uses ICS's brand new SSS AEG Gearbox design and is officially licensed and fully trademarked.

The Airsoft replica itself is constructed from a mixture of high quality alloys and polymers, with an Alloy Receiver, Handguard Outer Barrel and Internals, with a Polymer Stock, Magazine, Foregrip and Flip-up Iron Sights. The rifle features a high quality finish, with heavy duty materials leading to a highly detailed and realistic looking rifle. The rifle isn't just a quality build, it also come fully trademarked with all the textual markings and logo shown on the real rifle for higher levels of realism.

Full description

Delivery & Returns

If you have items in your basket from our European Warehouse, the minimum order value is £25. This is to cover EU shipping costs. The minimum order value includes the value of any items from our UK Warehouse.

Delivery & Postage

Here at Patrol Base, we send all our packages from our Warehouse based in the UK with the exception of European Warehouse Items. All of our parcels are sent with specially picked couriers to ensure your parcels get to you on time and in one piece.

For more information please check out our Delivery Information Page.

Estimates

Below are some rough postage prices for orders. Please note these are subject to change and are only a rough guide. For a more accurate postage estimate please use the Postage Calculator at the basket.

UK Standard

£6.95

From

UK 24hr Dispatch

£8.95

From

Highlands / Islands

£24.99*

From

* Please note that Scottish Highlands, and Islands postage prices can vary wildly. Please refer to the Postage Calculator at the basket for the lowest possible price.

Returns

We want you to be absolutely happy with our products and services, so we provide the simple Patrol Base guarantee: if on receiving your item you are unhappy with your item for any reason then simply send it back to us. We will replace or refund the item.

You can return any item for any reason whatsoever, even if you have just changed your mind, within 14 days of receipt of the order. This is in addition to your rights under the Consumer Protection (Distance Selling) Regulations 2000.

For more information on returning products, and how to do it please visit our Returns Policy Page.

Description

Externally the AR-15 is based off a mil-spec variant of the AR-15, and then modified by attaching the modified CQR parts. The rifle is a 1:1 replica of its real steel counter part including all the modified which went into upgrading the rifle. The parts were modified for the AEG edition by ICS based on the original CAD design files created by HERA ARMS to make them highly realistic and ensure the scale was the same.

The fixed Hera Arms CQR stock is very unique, with its P90 esque shape, this thumbhole stock is something rarely seen on an M4 and give the rifle a completely new feel and look. The stock is great for use with slings as it features a left and right QD sling loop mount points, as well as two stock sling bars for more traditional sling systems. The stock's length can also be adjusted using stock spacers which allows you to customise the length of the AR-15 to the perfect required length. To work with an Airsoft AEG the original design has also been modified to accept both batteries and the AEG's motor with no effect on the overall look of the stock.

The Hera Arms CQR grip is something to behold. The grip features a unique shape which offers the user a variety of grip angles to allow for a range of comfortable and stable firing positions. The front of the grip is specially designed to be held with a thumb and finger grip, similar to a P90, which is extremely comfortable hold hold and gives you a strong grip on the AR-15. The grip features multiple textured surfaces for extra grip, and is attached to the weapon via the rails 20mm RIS / RAS rail allowing it to be removed and refitted with ease. Another interesting feature is that the grip itself is actually produced by HERA Arms giving it a high quality finish comparable to the real thing.

The handguard is also based off the original designs, and is a replica of CQR rail. The rail is a four point 20mm RIS / RAS rail which allows for 20mm attachments to be fixed to the handguard, the most common on the market, allowing for a wide range of aftermarket parts to be fitted and used. The top rail lines directly up with the top rail of the receiver creating a full length top rail allowing for the attachment of large sights and scopes as well as complicated setups like a holographic and magnifier. The left and right side of the handguard features a QD Sling loop mount point to allow for the easy attachment of slings, and when used with the stock's QD points you can attach a range of two point slings to make the rifle easier to carry.

Features

Officially licensed HERA ARMS CQR Replica
Built in collaboration with ASG, ICS, HERA ARMS
German designed HERA ARMS CQR Furniture specially engineer to accommodate an Airsoft AEG motor and battery
ICS's proven split gearbox quick-change spring system provides top performance and easy
A free-floating rail system designed using original HERA ARMS 3D CAD files, combined with an all-metal receiver set
The Self-Diagnosis Shooting System from ICS provides intelligent fault detection and full cycle monitoring on both 7.4v and 11.1v LiPo Battery
Licensed and commissioned by ASG
Built and developed by ICS
Original Design created by HERA ARMS
Based on the Mil-Spec AR-15 system
1:1 scale authentically traded replica
Designed using the original CAD files
HERA ARMS CQR front grip
HERA ARMS CQR railed handguard
HERA ARMS CQR stock system
HERA ARMS CQR flash hider
Three round burst mode
Pre-cocking mode
SSS Self Diagnosis System
Low Battery Protection
Thumb hole stock design
Handguard and stock QD mount points
Free floating four point 20mm RIS / RAS Rail mount system
300rnd ICS T-Tactical wheel wound hi-capacity magazine
ICS Triple S / SSS Gearbox System
Built upon the ICS HOG system
Electric Blowback System
Reliable ICS Hop-up system
Mock bolt release which functions as a de-cocking mechanism
Split Gearbox Design
Quick change spring
6.04mm Inner barrel diameter
212mm inner barrel
Stock redesigned to allow AEG motors
Angular surfaced receiver
Ambidextrous charging handle
Flip-up ironsights
Full length top 20mm RIS / RAS rail
Double stock sling bars
Adjustable stock length via spacers

Package Includes

HERA ARMS CQR AR-15 Milspec SSS Edition
HERA ARMS CQR Foregrip
HERA ARMS Flip-up Ironsight Set
Magazine
Instruction Manual

Special Instructions

ASG Recommends that with the UK M100 Standard Spring version that you use a maximum of a 7.4v Li-Po battery for the best performance possible.

Please note that this battery will not function using Ni-Mh batteries and requires Li-Po battery. This is due to the low voltage protection built in as part of the SSS MOSFET, please ensure you use 7.4v Li-Po.

The externals of the replica are metal where they would be on the real world gun. This includes things like the outer barrel, handguard, and receiver. If a real world gun has polymer parts then the gun will still be marked as full metal externals, examples of this would be an M4, where the Stock and Pistol grip are always made from Polymer.

Downloads

ICS SSS System How To / Help Guide

Specification

General

Weapon Type	Assault Rifle
Over 18	Yes
Defence / UKARA Required	Yes, No,
FPS (Feet Per Second), using 0.20g BB	Approx. 340fps ± 10%, using 0.20g BB
Pre-Built	Yes
Included Items	ICS T Tactical 300rnd Hi-Cap Magazine Hera Arms CQR Front Grip
User Skill Level	Regular Player
Warnings	Li-Po - Never Leave Charging Unattended Li-Po - Only Use Approved Chargers Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight (KG)	Approx. 3.129kg
Length (Collapsed)	72.7cm
Length (Extended)	72.7cm

Construction

Primary Colour	Black, Half-Tan,
Secondary Colour	Black
Pre Two-Toned	No
Construction	Alloy Receiver, Handguard Outer Barrel and Internals, with a Polymer Stock, Magazine, Foregrip and Flip-up Iron Sights
External Construction	Polymer Alloy
Internal Construction	Polymer Alloy

Weapon Specific

Powered By	Electric
Blowback	Electro Mechanical Blowback
Weapon Platform	AR, M4 / AR-15 / M16, Assault Rifle,
Magazine Style	STANAG
Fire Selector	Safe Semi Automatic Full Automatic
Safety Features	Trigger Lock
Shooter Configuration	Right Handed
Weapon Configuration	Standard
Weapon Scale	1:1
Suggested BB Weight	0.25g

Hop-Up

Hop-Up Unit	Yes
Hop-Up Adjuster	Rotary
Hop-Up Location	Adjustable behind dust cover when the charging handle is to the rear

Furniture

Furniture	Ambidextrous Charging Handle Monolithic Receiver QD Sling Point Hera Arms CQR Front Grip Hera Arms CQR Stock Hera Arms CQR Flash Hider Hera Arms CQR 20mm RIS / RAS Railed Handguard
Rail System	20mm RIS / RAS
Stock Setting	Fixed
Stock Positions	1 Position
Sight Type	Aperture Iron Sight
Sling Options	Stock , Handguard , QD , Loop ,

Barrel

Outer Barrel Thread Type	Male
Outer Barrel Thread Direction	CCW (Counter Clockwise)
Outer Barrel Thread Size	14mm
Inner Barrel Diameter	6.04mm
Inner Barrel Length	212mm

Magazine Specific

Magazine Type	High Capacity, Wheel Wound, AEG,
Magazine BB Capacity	Approx. 300 Rounds
Magazine BB Fill Method	Fill Window
Magazine BB Fill Location	Top

Electric Gun Specific Information

Gearbox

Gearbox Version	V2 Gearbox
Gearbox Wiring	Rear Wired
Gearbox Quick Change Spring	Yes
Gearbox Electronic Trigger	No
Split Gearbox Design	Yes

Motor

Motor Type	Standard

Battery Specific

Battery Connector	Deans

Compatible Battery

Compatible Battery Type	Li-Po
Compatible Battery Configuration	Stick
Compatible Battery Voltage	7.4v

Product Testing Data

Test Description	Using 0.20g BB
Tested Using	Blaster 0.20g BBs
Test Date	16/01/2019

Further Information

SSS Self Diagnostic Shooting System

Three Round Burst Mode

The mosfet can be set to fire three round burst instead of full auto for accuracy and to conserve ammo.

Pre-cocking Mode

By default Pre-Cocking is enabled, which pre engages the piston so you can make repeat shots faster.

SSS Self Diagnosis System

Allows you to diagnose problems with the rifle to give you a general idea if the AR-15 stops firing.

Low Battery Protection

When your battery has insufficient charge the grip will vibrate three times then stop firing.

Switching between Firing Modes

By default the AR-15 is set to Safe / Semi / Full Auto. To switch to Safe / Semi / Burst please follow the steps below:

Set the fire-selector to semi-automatic.
Hold the trigger for 10 seconds.

The pistol grip will vibrate once when switching to 3 round burst, or twice when switching back to full-auto

Setting Pre-cocking Mode

By default pre-cocking mode is enabled.

Press the trigger once in semi-auto.
Switch the fire selector quickly between semi and full auto 3 times in under 5 seconds.
The motor will vibrate once the process is completed.

Please note when switching to pre-cocking, or after the piston has been released the system will need to re-detect the piston position. The system may double feed or not fire for the first five shots until the positioning has been memorised.

SSS Self Diagnosis Mode

If the product is operating correctly then you will not need to run a self diagnosis, however this can be helpful for any Airsoft Tech or for personal reference.

The self diagnosis mode checks features such as the battery voltage, the functionality of the trigger system, the fire select, and gear functionality.

Information about the self diagnosis mode can be found in the manual.

SSS System Warnings

Any disassembly or use of non-original parts may result in abnormal product performance. Please ensure you're confident in any modifications you make, or get in touch with our Workshop via our Contact Us Page.
Only use 7.4v or 11.1v Li-Po Battery in this replica, any other battery may trigger the low-voltage protection system and cause the rifle not to fire.
When the battery power is too low the pistol grip will vibrate three times to notify you that the battery requires changing.
When the battery power is too low the system will switch to safe mode to prevent damage to the battery. The pistol grip will vibrate once when the trigger is pulled as a warning.
If the system detects a problem with the gearbox during use the gun will be switched to safe mode to prevent damage to the AR-15 . The pistol grip will vibrate once when the trigger is pulled as a warning.
Please note that the self-diagnosis function is only for reference, and may not directly reflect the cause of the problem. If you are unsure what is causing the problem please ensure you get in touch with our Workshop via our Contact Us Page.
The system will return to its default settings once the battery is removed. Pre-cocking will be re-enabled and the gun will switch back to Safe / Semi / Full Auto.
If you enable pre-cocking mode without the magazine installed the AR-15 will not fire a round on the first shot. This is so the system can re-learn the positions of the piston.
Please note that whilst in pre-cocking mode if the hop-up is set to be full off BBs will be free to roll down the barrel. Please ensure that a small amount of hop is always applied.
If you release the spring either via removing the battery, or activating the decocking mechanism via the mock bolt release, the system will need to re-detect the piston positions, meaning the AR-15 may not fire a round, or double feed for the first few shots.
To maintain functionality of the AR-15 and to protect the AR-15 do not remove the fuse.

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

This table should be used for reference, and cannot be used to check one weight against another, as the weight of the BB affects the power.

In order to check if the BB can be used with your replica chronograph using the weight you wish to use and then compare it against the table.

Every time you change weights you will need to re-chrono and check against the table. This is not a conversion chart between weights.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity	BB Weight (Grams)
FPS	0.20	0.25	0.28	0.30	0.32	0.36	0.40	0.43	0.45	0.50
250	0.58	0.73	0.81	0.87	0.93	1.05	1.16	1.25	1.31	1.45
260	0.63	0.79	0.88	0.94	1.00	1.13	1.26	1.35	1.41	1.57
270	0.68	0.85	0.95	1.02	1.08	1.22	1.35	1.46	1.52	1.69
280	0.73	0.91	1.02	1.09	1.17	1.31	1.46	1.57	1.64	1.82
290	0.78	0.98	1.09	1.17	1.25	1.41	1.56	1.68	1.76	1.95
300	0.84	1.05	1.17	1.25	1.34	1.51	1.67	1.80	1.88	2.09
310	0.89	1.12	1.25	1.34	1.43	1.61	1.79	1.92	2.01	2.23
320	0.95	1.19	1.33	1.43	1.52	1.71	1.90	2.05	2.14	2.38
325	0.98	1.23	1.37	1.47	1.57	1.77	1.96	2.11	2.21	2.45
328	1.00	1.25	1.40	1.50	1.60	1.80	2.00	2.15	2.25	2.50
330	1.01	1.26	1.42	1.52	1.62	1.82	2.02	2.18	2.28	2.53
335	1.04	1.30	1.46	1.56	1.67	1.88	2.09	2.24	2.35	2.61
340	1.07	1.34	1.50	1.61	1.72	1.93	2.15	2.31	2.42	2.68
345	1.11	1.38	1.55	1.66	1.77	1.99	2.21	2.38	2.49	2.76
350	1.14	1.42	1.59	1.71	1.82	2.05	2.28	2.45	2.56	2.85
355	1.17	1.46	1.64	1.76	1.87	2.11	2.34	2.52	2.63	2.93
360	1.20	1.51	1.69	1.81	1.93	2.17	2.41	2.59	2.71	3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity	BB Weight (Grams)
FPS	0.20	0.25	0.28	0.30	0.32	0.36	0.40	0.43	0.45	0.50
250	0.58	0.73	0.81	0.87	0.93	1.05	1.16	1.25	1.31	1.45
260	0.63	0.79	0.88	0.94	1.00	1.13	1.26	1.35	1.41	1.57
270	0.68	0.85	0.95	1.02	1.08	1.22	1.35	1.46	1.52	1.69
280	0.73	0.91	1.02	1.09	1.17	1.31	1.46	1.57	1.64	1.82
290	0.78	0.98	1.09	1.17	1.25	1.41	1.56	1.68	1.76	1.95
300	0.84	1.05	1.17	1.25	1.34	1.51	1.67	1.80	1.88	2.09
310	0.89	1.12	1.25	1.34	1.43	1.61	1.79	1.92	2.01	2.23
320	0.95	1.19	1.33	1.43	1.52	1.71	1.90	2.05	2.14	2.38
330	1.01	1.26	1.42	1.52	1.62	1.82	2.02	2.18	2.28	2.53
340	1.07	1.34	1.50	1.61	1.72	1.93	2.15	2.31	2.42	2.68
350	1.14	1.42	1.59	1.71	1.82	2.05	2.28	2.45	2.56	2.85
360	1.20	1.51	1.69	1.81	1.93	2.17	2.41	2.59	2.71	3.01
370	1.27	1.59	1.78	1.91	2.03	2.29	2.54	2.73	2.86	3.18
380	1.34	1.68	1.88	2.01	2.15	2.41	2.68	2.88	3.02	3.35
390	1.41	1.77	1.98	2.12	2.26	2.54	2.83	3.04	3.18	3.53
400	1.49	1.86	2.08	2.23	2.38	2.68	2.97	3.20	3.34	3.72
410	1.56	1.95	2.19	2.34	2.50	2.81	3.12	3.36	3.51	3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity	BB Weight (Grams)
FPS	0.20	0.25	0.28	0.30	0.32	0.36	0.40	0.43	0.45	0.50
250	0.58	0.73	0.81	0.87	0.93	1.05	1.16	1.25	1.31	1.45
260	0.63	0.79	0.88	0.94	1.00	1.13	1.26	1.35	1.41	1.57
270	0.68	0.85	0.95	1.02	1.08	1.22	1.35	1.46	1.52	1.69
280	0.73	0.91	1.02	1.09	1.17	1.31	1.46	1.57	1.64	1.82
290	0.78	0.98	1.09	1.17	1.25	1.41	1.56	1.68	1.76	1.95
300	0.84	1.05	1.17	1.25	1.34	1.51	1.67	1.80	1.88	2.09
310	0.89	1.12	1.25	1.34	1.43	1.61	1.79	1.92	2.01	2.23
320	0.95	1.19	1.33	1.43	1.52	1.71	1.90	2.05	2.14	2.38
330	1.01	1.26	1.42	1.52	1.62	1.82	2.02	2.18	2.28	2.53
340	1.07	1.34	1.50	1.61	1.72	1.93	2.15	2.31	2.42	2.68
350	1.14	1.42	1.59	1.71	1.82	2.05	2.28	2.45	2.56	2.85
360	1.20	1.51	1.69	1.81	1.93	2.17	2.41	2.59	2.71	3.01
370	1.27	1.59	1.78	1.91	2.03	2.29	2.54	2.73	2.86	3.18
380	1.34	1.68	1.88	2.01	2.15	2.41	2.68	2.88	3.02	3.35
390	1.41	1.77	1.98	2.12	2.26	2.54	2.83	3.04	3.18	3.53
400	1.49	1.86	2.08	2.23	2.38	2.68	2.97	3.20	3.34	3.72
410	1.56	1.95	2.19	2.34	2.50	2.81	3.12	3.36	3.51	3.90
420	1.64	2.05	2.29	2.46	2.62	2.95	3.28	3.52	3.69	4.10
430	1.72	2.15	2.40	2.58	2.75	3.09	3.44	3.69	3.86	4.29
440	1.80	2.25	2.52	2.70	2.88	3.24	3.60	3.87	4.05	4.50
450	1.88	2.35	2.63	2.82	3.01	3.39	3.76	4.04	4.23	4.70
460	1.97	2.46	2.75	2.95	3.15	3.54	3.93	4.23	4.42	4.91
470	2.05	2.57	2.87	3.08	3.28	3.69	4.10	4.41	4.62	5.13
480	2.14	2.68	3.00	3.21	3.42	3.85	4.28	4.60	4.82	5.35
490	2.23	2.79	3.12	3.35	3.57	4.02	4.46	4.80	5.02	5.58
500	2.32	2.90	3.25	3.48	3.72	4.18	4.65	4.99	5.23	5.81
510	2.42	3.02	3.38	3.62	3.87	4.35	4.83	5.20	5.44	6.04

Customer reviews

5 / 5

1 review for ASG HERA ARMS CQR AR-15 Milspec SSS Edition Rifle

Reviews.io customer reviews

Anonymous

Written on 06/06/2020

Loved the look of this gun when it first came out. I've been saving for it for ages and it's as good as I hoped, knocking down those backyard target like it's noones bissness.

Rated 5 out of 5

Showroom
