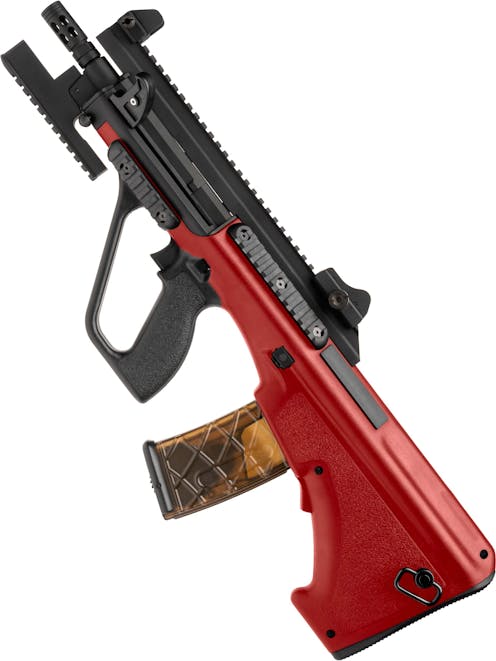

Army Armament R906 AUG Bullpup Carbine AEG

Army Armament
Code: R906
227.49
  • Bullpup configuration
  • Railed handguard and sides
  • Compact CQB carbine

If bullpup AUGs weren't unique enough, get a load of this! This AUG carbine is jam packed with features, customisation options as well as having a compact design perfect for those tight CQB encounters. With full metal construction to complete the look, what's not to love?

Full description

Description

Love them or hate them, bullpups are certainly a unique design in terms of functionality and ability to turn heads on the field. With customisation options for every occasion and a sleek but tough full metal build, this AUG takes skirmishing to that level, it's compact design only adds to the wide range of skirmishes this rifle could see deployed in, the most obvious of which is of course CQB encounters. The rifle is of full metal construction with the rails, flash hider and sights built from alloy. This gives the AUG a beautiful sleek look as well as giving it a balanced weight that is easy to manipulate.

At the front of the barrel is the flash hider, below which is a 20mm lower RIS rail for use with attaching handguards or torches. Behind this along the sides of the body are 4 more RIS rails at alternating 45 degree angles, allowing for a full range of tactical equipment to complement your loadout. These side rails are most suited for lasers and PEQ units but with this amount of rail space at varying degrees of elevation and angle the possibilities are truly endless! And it doesn't stop there, a RIS rail features along the entirety of the barrel and body of the AUG, giving it a monolithic and sleek look, but more importantly it is where the included ironsights are attached. These sights are again built from fully metal alloy and are of open ironsight design, with the rear sight having a flip up design with 2 settings, as well as the rear sight being left / right adjustable.

Above the trigger is the mock charging handle that, when pulled back opens the mock ejection port, within which the HOP unit is housed. The HOP up unit is a rotary drum design which can be adjusted for shot windage and elevation. The trigger itself is a two stage trigger type, meaning that a half pull of the trigger results in semi automatic shooting, whereas a full trigger pull results in fully automatic firing. This is of course regulated by the ambidextrous safety switch located just behind the trigger, easily accessed with the thumb or finger.

While it is something of a marmite feature, we come to the AUG's bullpup magazine configuration the receiver of which is behind the trigger. For you non believers this setup is worth trying at least, maybe you can be converted! Included with this rifle is a 300rnd high capacity magazine. The mag release is located behind the magazine receiver with an enlarged design common on most bullpups to allow for ease and high speed reloading to keep you in the action and shooting in skirmishes.

Internally the R609 boasts a V3 gearbox and MOSFET. The battery is located in the rear of the stock behind the rubberised butt plate. The battery connector is that of a mini Tamiya connector and is used with either a NiMh or LiPo battery in stick configuration.

To summarise, this R906 is for those of you that operate a little differently. With option for intricate automation and tinkering in the form of multiple rails to make this bullpup configuration even more efficient. Especially so with it's compact design that is perfectly weighted thanks to it's full metal components, meaning you'll be as efficient as can be in CQB skirmishes with an assault rifle that's practically the size of an SMG!

Features

  • Compact carbine AUG for CQB
  • Rear QD sling loop
  • Ambidextrous magazine release
  • Functional locking mock charging handle
  • Top rail for sights and scopes
  • Side rails for lights and lasers
  • 20mm RIS rail
  • Bottom rail for foregrips and bipods
  • Rubber butt stock
  • Bullpup Configuration
  • V3 Gearbox
  • Two stage trigger

Package Includes

  • Army Armament KU906 AUG
  • 300rnd high capacity magazine

Special Instructions

The AUG trigger is a two stage design, which means that a half pull of the trigger does single shot, and a complete trigger pull will fire full auto. There is no fire selector, only the trigger to use different fire modes. This can be an issue for CQB sites that require semi-auto only, and we can't guarantee that you'll be allowed to use this replica at a single shot only site.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 330fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Starter
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 3.1kg
Weapon Length Collapsed
Length (Collapsed)
61cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Weapon Construction External
External Construction
Polymer
Alloy
Nylon Fiber

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
AR, AUG, Assault Rifle,
Magazine Style Icon
Magazine Style
AUG
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Full Automatic
Full Automatic
Two Stage Trigger
Weapon Configuration Icon
Weapon Configuration
Bullpup
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.2g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
Hop-Up Location
Mock Ejection Port

Furniture

Weapon Furniture Icon
Furniture
  • Railed Handguard
  • Rear Lanyard Mount Point
  • 20mm Top Rail
  • 20mm Side rail
Rail System Icon
Rail System
20mm RIS / RAS
Sight Type Icon
Sight Type
Iron Sights , Open Iron Sight, Rotary Drum Iron Sight , 20mm Rail,

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 300 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Gearbox Icon
Gearbox Version
V3 Gearbox
Wiring Icon
Gearbox Wiring
Rear Wired
Spring Change Icon
Gearbox Quick Change Spring
Yes
Digital Trigger Icon
Gearbox Electronic Trigger
No
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Stick
Compatible Battery Voltage
7.4v

Product Testing Data

Notepad Icon
Test Description
330FPS
Notepad Icon
Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
Test Date
15/09/2022

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 330fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
