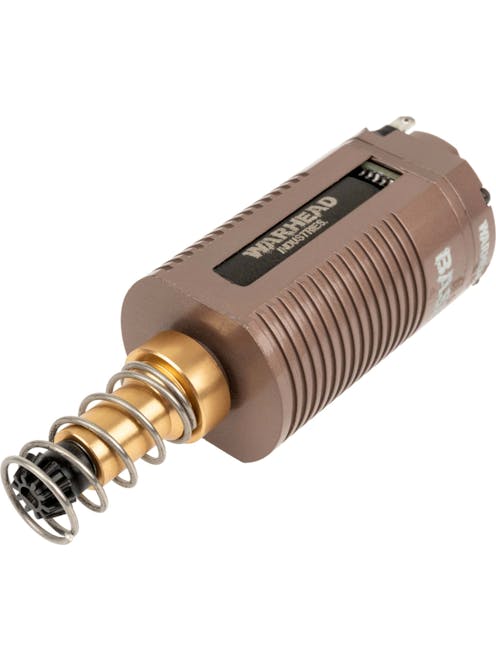

Warhead Industries Base Brushless Motor; Long Shaft

Warhead Industries
Code: …
2,879.00 Kč
  • Cast Aluminium housing
  • Brushless motor - No brushes to get worn
  • Long shaft version - For M4/AR-15, P90, SMG-5 & G3 AEGs

If you're looking for an upgraded AEG motor with the best price-to-performance ratio, you're looking for the Warhead Industries Base Brushless Motor! This brushless motor was conceived as a more affordable alternative to the legendary Warhead CNC Black Brushless Motor, boasting similar performance at an unbeatable price point. This, the long shaft variant, is designed for standard M4/AR-15, SMG-5, G3 and P90 AEGs.

Like the Warhead CNC Black motor used in Bolster Armouries builds, the Base boasts an ESC (electronic speed control) module which protects your battery, provides low-voltage cutoff and regulates speed to keep the immense power of the Base under control. The primary difference between the Base and the CNC Black is that the base uses a cast aluminium housing instead of a CNC machined one and the stator is wound via machines while the CNC Black is hand-wound.

The advantages of running a brushless motor are numerous, the most important of which is a far higher torque to weight ratio than conventional motors. The lack of brushes means there is less to go wrong and the motor is far quieter when running, guaranteeing a longer lifespan of smooth running performance. That said, these motors are intended for highly upgraded setups so we only recommend them for those who are confident working on AEG internals. If your custom-built beast needs an equally beastly motor to drive it, the Warhead Base Brushless Motor; Short Shaft is one of the best choices out there!

Full description

Help
Size guide

Description

If you're working on a budget beast of an AEG build, the Warhead Industries Base Brushless Motor belongs inside! This, the short shaft version is designed for standard M4/AR-15, SMG-5, G3 and P90 AEGs and comes packaged with a D-type pinion gear and pinion spring with pre-mounted spade connectors. Motor installation is a relatively easy job in most cases, but given the sheer power of even the lowest-speed variant of the Warhead Base motor, we recommend doing a lot of research before attempting installation.

Conceived as a lower-cost alternative to the Warhead CNC Black Brushless motor, the Base uses a cast aluminium housing and machine-wound stator to keep the price low while providing comparable performance. The magnets used for the Base are the same level of quality as those used in the CNC Black, making it a great alternative for those who want to save a few quid on their high-performance build.

Like the CNC Black, the Base is equipped with an ESC (electronic speed control) module which can be replaced easily thanks to its modular design. This circuit controls and regulates the speed of the motor while providing low voltage cut-off and over-current-draw protection, providing an additional level of safety and keeping your battery healthy.

Brushless motors offer reduced heat build-up, reduced mechanical noise when running, improved reliability due to the lack of conventional brushes and improved torque to weight ratio. If you're going for a top-end build, whether it is a DMR requiring high torque for strong springs or an LMG which requires maximum speed, the Warhead Base is the ideal motor!

Features

  • Cast Aluminium housing
  • Brushless motor advantages:
    • Reduced heat build-up
    • Higher torque-to-weight ratio
    • Increased reliability and less maintenance required
    • Reduced mechanical noise
    • Less electromagnetic interference (EMI)
    • Less electrostatic discharge (ESD)
  • 3 Speeds available - 27K, 35K or 45K Revolutions per minute
  • Short shaft motor - For M4/AR-15, SMG-5, G3 & P90 AEGs
  • High-quality magnets - Equivelant to those used in the CNC Black motor
  • Electronic Speed Control Module - Regulates speed, provides low voltage cut-off & over-current-draw protection
  • D Type motor shaft - Widely regarded as the strongest shaft type, compatible with D-type pinion gears
  • CNC Steel Pinion gear and spring steel pinion spring included
  • NOT recommended for amateurs - This motor is no joke, you will need a lot of reinforced parts to run it!

Package Includes

  • Warhead Base Brushless Motor; Long Shaft
    • Pinion Gear
    • Pinion Spring

Specification

General

Parts & Accessories Type
Electric Internal Parts
Internal Part Type
Motor & Parts, Motor,
Patrol Base - Warning Icon
 Warnings
Patrol Base - Warning Icon
 Parts Fitting
Patrol Base - Warning Icon
 Unique Part
Custom Parts
Name Variant
27k RPM, 35K RPM, 45K RPM,

Construction

Colour Wheel Greyscale
 Item Colour
Copper
 Copper
Construction Icon
 Construction
Cast Aluminium housing. Hardened Steel pinion gear. Spring steel pinion spring.
Internal Part Construction
Steel, Aluminium, Spring Steel,

Part Specific

Part for Power Source Type
Electric
Package Includes
  • Motor Pinion Spring
  • Motor Pinion Gear
  • Motor

Size guide

Parts Fitting

Upgrades and Downgrades should only be undertaken by experienced players, or Airsoft Technicians. Please note, changing any internal parts of a weapon voids its warranty unless done in-house by our staff.

Please ensure that when fitting parts the part purchased is the correct part, as once a part has been fitted we cannot accept return.

We do know that players love to tinker, so we're here to give you help should you require it, and if needed you can get in touch with our workshop for more help!

Unique Parts

Please note that some parts may be unique to a specific brand of weapon. For example: Parts for an ASG M4A1 may not fit an ICS M4A1.

Parts from the same brand typically have a high chance of fitting, though be warned, some replicas use unique parts, so please ensure the part will fit before you attempt to fit it.

If you require help with fitting any parts feel free to get in touch with us via our Contact Us Page.
