Umarex H&K MP7 A1 GBB SMG Gen.2

Umarex
Code:
9,369.00
  • GEN 2 Version
  • 1:1 Scale Replica MP7
  • Fully Licensed H&K Trades

The Heckler & Koch MP7A1 - Anyone and everyone who's taken a remote interest in firearms at some point will have stumbled across this exceptional piece of authentic weaponry, famous for its compact and effective design the MP7A1 is an inimitable platform and now YOU, yes you can get your hands on one of H&K's finest productions.

Full description

Recommended for your new MP7 A1

Description

The Heckler & Koch MP7A1 is a personal defence weapon or ( PDW ) For short that can be used as a primary and or secondary.

The MP7 platform was designed to meet NATO requirements as the military required something that was able to penetrate soviet KEVLAR body armour, which the current .45 ACP and 9x19 calibres in service were incapable of. With enemy combatants equipped in soft armour on the rise, the 4.6x30mm round was quickly becoming more popular and it became a favoured round, thus throwing the MP7 into popularity.

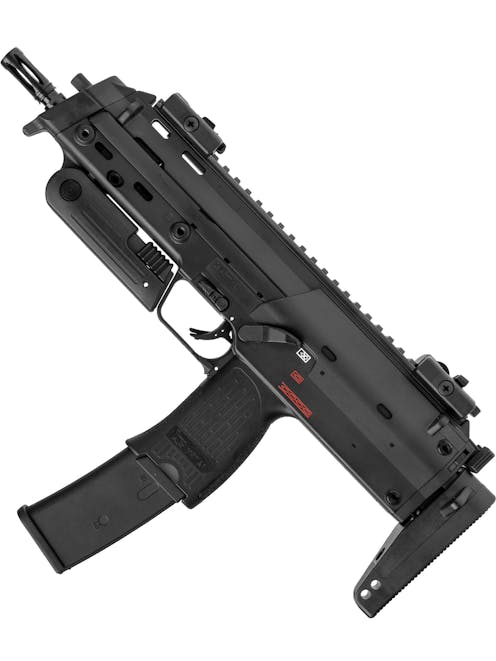

This UMAREX / H&K MP7A1 certainly doesn't shy away from being true to its real steel counterpart, from a first glance the gun carries all of the aesthetic characteristics we've come to love, as UMAREX hold all the rights to decorate the MP7 in it's truest form with all the authentic Heckler & Koch markings displayed across the gun.

The front end of the gun features a classic 4.6x30mm MP7 flash hider, which is fitted to a 12mm Clockwise thread on the outer barrel, as well as the unique MP7A1 classic folding foregrip which is fitted to the lower body of the gun and when unfolded provides a stable bracing platform when shooting which allows your hand to seat perfectly into the end cap while your thumb mounts over the chamfered upper, creating a secure and comfortable grip.

Along the side of the handguard you will find two threaded bolt holes, this is for fitting 20mm rail sections for the addition of laser light modules and illumination devices to meet the requirements of your combat scenario. Along the top you've got an 11" 20mm RIS rail for the addition of sights, scopes and special optics alike as well as top mounted PEQ-15's or Laser / light modules. Along this rail you will also see a front and rear sight, both of which have a double function capability. When folded down the rear iron sights remain low profile and do not protrude into your sight picture however they do offer a square valley and notch style compact rear iron, so if you don't get time or chance to deploy your flip up irons you can rest assured that they're pre-fitted with back up irons which means less time faffing and more time shooting. When flipped up the iron sights present in a classic H&K style, your rear iron is a vertical framed cylindrical centre hole which hugs the pitchfork style front sight, allowing for the centre aiming point to line up at eye level once the gun is shouldered.

Other features that decorate the gun are the H&K classic fire selector colours, with full auto displaying four red projectiles, semi automatic displaying one red projectile and safe showing a white boxed bullet with an X through it, to indicate that your fire control is locked. You'll also find the H&K bolt release system on both the left and right side of the gun, this is shaped like a wing or as we like to see it, a robots foot. Once the gun is dry on ammo the bolt will lock back to notify you, then once you've fitted a new full magazine you can press the bolt release down and return the gun to battery to continue firing.

The trigger features a very similar style to the GLOCK, in the fact that it will not fire unless the centre-trigger is engaged first, otherwise the main trigger will remain locked. Native to the trigger is the magazine release, which is very small however easily locatable again on both sides of the gun just on the lower back side of the trigger guard which looks a little like a pedal, pushing this down will release your magazine. The pistol grip is decorated with "HK MP7A1" along with H&K's patented 3D texture enhancement, as well as stippling to provide a strong and secure grip  no matter the contact surface. Lastly we have the stock which is retractable as to be expected to a total of two points, this can be released / retracted / extended via the release catch on the right hand side of the gun just by the charging handle, which is a butterfly style charging handle which allows the shooter to press both sides in and pull back, which will chamber a round and engage your trigger.

Of course, the best feature of the UMAREX H&K MP7A1 is the fact that it's gas blowback, now only is it ULTRA REALISTIC, it's got a shoulder punching and jaw rattling recoil system, which is always a pleasure to fire, even if you're not hitting anything - you look cool AF, who cares!

The gun comes with an UMAREX manual and a 40 rd Green Gas Magazine, which is to be loaded via a speed loader from the bottom end of the mag, whatever you do: DO NOT LET GO OF THE FOLLOWER! If you allow the follower to ping up against the feed lips it may cause them to snap, that's a whole lot of energy in the super strong spring and the last thing you want is a broken mag, so ensure that you get a good grip on your follower before pulling it to the bottom and guide it back up when finished loading.

Heckler & Koch markings:

  • Cal. 4.6x30
  • HK MP7A1
  • Licensed Trademark Of Heckler & Koch GmbH
  • Heckler & Koch GmbH

Features

  • Gas Blowback
  • 1:1 MP7A1
  • 12mm CW Thread
  • Retractable Stock
  • Safe, Semi, Auto
  • Dual Purpose Iron Sights
  • Folding Foregrip
  • Two Stage Trigger
  • 20mm Upper Rail
  • Heckler & Koch Licensed
  • Official H&K Trades
  • Authentic replica
  • Ambidextrous Fire Controls

Package Includes

  • H&K MP7A1 GBB Gen 2
  • 40 rd Gas Magazine

Specification

General

Weapon Construction External
Weapon Type
Submachine Gun
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 318fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Package
Included Items
Magazine
Skill Level Icon
User Skill Level
Regular Player
Patrol Base - Warning Icon
Warnings
Do not leave Airsoft Gas items in Hot Cars, or Direct Sunlight.

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 1.3kg
Weapon Length Collapsed
Length (Collapsed)
42cm
Weapon Length Extended
Length (Extended)
58cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Polymer externals with alloy internals and gearbox
Weapon Construction External
External Construction
Polymer

Weapon Specific

Power Source Icon
Powered By
Green Gas
Blowback Icon
Blowback
Gas Blowback
Weapon Platform
Submachine Gun, MP7A1, SMG-7,
Magazine Style Icon
Magazine Style
Submachine Gun, MP7, SMG-7,
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Ambidextrous
Weapon Configuration Icon
Weapon Configuration
Bullpup
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
Hop-Up Adjuster
Unique
Hop-Up Unit Location Icon
Hop-Up Location
FRONT

Furniture

Weapon Furniture Icon
Furniture
  • Foregrip
  • Folding Foregrip
Weapon Furniture Icon
Variant Furniture
Flash Hider
Rail System Icon
Rail System
None
Weapon Length Extended
Stock Positions
2 Position
Sight Type Icon
Sight Type
Iron Sights
Sling Plate Icon
Sling Options
Loop

Barrel

Icon Thread Direction
Outer Barrel Thread Direction
CW (Clockwise)
Outer Barrel Thread Size
12mm
Inner Barrel Diameter
6.03mm

Magazine Specific

Magazine Type
Gas
Magazine BB Capacity
Approx. 40 Rounds
Magazine BB Fill Method
Speed Loader
Magazine BB Fill Location
Front
Magazine Gas Fill Location
Bottom
Magazine Gas Type
Green Gas

Gas Gun Specific

Gas Can Icon
Gas Compatability
Green Gas
Gas Can Icon
Gas Recommendation
Green Gas

Product Testing Data

Notepad Icon
Test Description
318
Notepad Icon
Tested Using
0.20

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 318fps, using 0.20g BB

Related videos

Umarex H&K MP7 A1 Airsoft GBB SMG Livestream
UMAREX - H&K Brand Showcase Livestream
H&K Incoming Announcement

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
