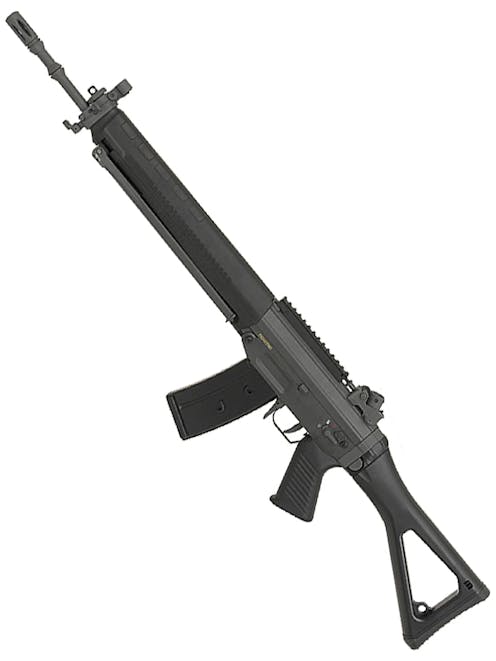

Jing Gong JG080 S-550 SIG 550 Assault Rifle

Jing Gong
Code:
5,149.00
  • Long Handguard
  • Ambidextrous Design
  • Integrated Swivel Bi-Pod

An Airsoft 6mm BB Electric Powered AEG Gun, designed and based off the SIG 550, and was used by the Swiss Armed Forces.

Full description

Description

The weapon features a Polymer Body, with Alloy internals, sporting a Polymer Receiver, Pistol Grip Stock, and Handguard, with an Alloy Bi-Pod, Outer Barrel, Sights, and Internals. The weapon features a Fold-Out Bipod, which is integrated into the Handguard and swivels for uneven terrain as well as a folding stock which folds and locks into place for Transport and Storage. The top of the weapon features a 13cm 20mm RIS / RAS Rail which can be removed, and allows the attachment of a variety of Scopes, Sights and Red Dots making the rifle great for Medium Range Engagements. The Weapon features an Adjustable Rotary Style Hop-Up Unit for Range and Accuracy, and can be accessed when the Mock Charging Handle is pulled to the rear. The hop-up unit adds range by using a small rubber patch to impart spin on the BB before it travels down the barrel, displacing Air around it allowing it to travel with a more stable flight path. The weapon also features an Ambidextrous Fire Select and Heavy Duty Magazine Release, making it great for both Left Handed and Right Handed Shooters. The magazines for the weapon feature an interlocking system, meaning that multiple magazines can be stacked up for easy access in CQB Situations. This is the perfect rifle for those looking a for a more Unique Airsoft weapon, or for those who want a piece of modern History which has been seen used in many Action Films or for those looking to do a Swiss Army Loadout.

Other Features:

  • Integrated Fold Out Swivel Bi-Pod
  • Folding and Locking Stock
  • Ambidextrous Heavy Duty Magazine Release
  • Removable top 13cm 20mm RIS / RAS Rail for Sights / Scopes
  • 12'' Handguard, with 17.5'' Barrel
  • Interlocking Magazine Design
  • Mock Charging Handle Pulls back to reveal the Hop-Up Unit
  • Adjustable Hop-Up for Range and Accuracy
  • Rotary Style Hop-Up Unit with Large Ridges for Glove Users
  • Removable 14mm CCW Flash Hider
  • Bayonet Lug

Package Includes:

  • JG080 S-550 SIG 550 Assault Rifle
  • 13cm Top 20mm RIS / RAS Rail
  • Magazine
  • 1100mAh 8.4v Ni-Mh Battery
  • 8.4v 300mAh Ni-Mh Charger

Special Instructions:

Please note to remove the Flash Hider the Grub Screw at the Bottom of the Flash Hider must be removed.

To fit the battery, first remove the Body Pin in front of the Magazine Well, the Lower part of the Handguard will the slide out, freeing the Top Handguard Section.

The Battery and Charger which is supplied with the gun will function perfectly, however, these are considered free gifts and are not as high a quality as other Battery and Charger we sell. We recommend that you upgrade these before you start skirmishing with your rifle and recommend: VP Racing Battery 9.6V 1600mAh Ni-MH Stick Battery and WE Europe - WEEU N3 NIMH3 Compact Battery Charger - NiMh. Which will last longer and charge faster.

You will be able to charge the Battery supplied with the Weapon using the WE Europe - WEEU N3 NIMH3 Compact Battery Charger - NiMh, and can keep it as a backup should your main battery run flat during a Skirmish.

Specification

General

Weapon Construction External
Weapon Type
Assault Rifle
Over 18 Only Icon
Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
Defence / UKARA Required
Yes, No,
FPS Icon
FPS (Feet Per Second), using 0.20g BB
Approx. 325fps ± 10%, using 0.20g BB
Site Legal Icon
Site Legal, using 0.20g BB
Yes
Screwdriver Icon
Pre-Built
Yes
Package
Included Items
  • Magazine
  • Battery
  • EU Pin Charger
Skill Level Icon
User Skill Level
Regular Player
Patrol Base - Warning Icon
Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
Weight (KG)
Approx. 3.25kg
Weapon Length Collapsed
Length (Collapsed)
78.5cm
Weapon Length Extended
Length (Extended)
100cm

Construction

Colour Wheel Greyscale
Primary Colour
Black
Two Tone Icon
Pre Two-Toned
No
Construction Icon
Construction
Polymer Reciever, Pistol Grip Stock, and Handguard, with an Alloy Bi-Pod, Outer Barrel, Sights
Weapon Construction External
External Construction
Polymer
Alloy
Gearbox Icon
Internal Construction
Polymer
Alloy

Weapon Specific

Power Source Icon
Powered By
Electric
Blowback Icon
Blowback
None
Weapon Platform
SIG AR Series
Magazine Style Icon
Magazine Style
Sig Sauer Series
Fire Select Icon
Fire Selector
PatrolBase | Fire Select Safe
Safe
Patrol Base | Fire Select - Semi Automatic
Semi Automatic
Patrol Base | Full Automatic
Full Automatic
Weapon Safety Features Icon
Safety Features
Trigger Lock
Shooter Configuration Icon
Shooter Configuration
Right Handed
Weapon Configuration Icon
Weapon Configuration
Standard
Weapon Scale Icon
Weapon Scale
1:1
Suggested BB Weight
0.2g

Hop-Up

Hop-Up Unit Icon
Hop-Up Unit
Yes
Hop-Up Unit Location Icon
Hop-Up Location
Behind mock Bolt cover, when charging handle to the rear

Furniture

Weapon Furniture Icon
Furniture
  • Bipod
  • Folding Stock
  • Railed Receiver
  • Bird Cage Flash Hider
Rail System Icon
Rail System
20mm RIS / RAS
Icon Stock Positions
Stock Setting
Folding
Weapon Length Extended
Stock Positions
2 Position
Sight Type Icon
Sight Type
Aperture Iron Sight

Magazine Specific

Magazine Type
High Capacity, AEG,
Magazine BB Capacity
Approx. 350 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Wiring Icon
Gearbox Wiring
Front Wired
Spring Change Icon
Gearbox Quick Change Spring
No
Digital Trigger Icon
Gearbox Electronic Trigger
No
Split Gearbox Icon
Split Gearbox Design
No
Motor
Airsoft Motor Icon
Motor Type
Standard
Battery Specific
Battery Connector
Patrol Base | Icon | Mini Tamiya
Mini Tamiya
Included Battery
Battery Type
Ni-Mh
Battery Voltage
8.4V
Battery Amperage
1100mAh
Compatible Battery
Compatible Battery Type
Ni-Mh
Compatible Battery Configuration
Stick
Compatible Battery Voltage
8.4v

Product Testing Data

Notepad Icon
Test Description
Tested using 0.2g BBs
Notepad Icon
Test Date
7/9/16

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
