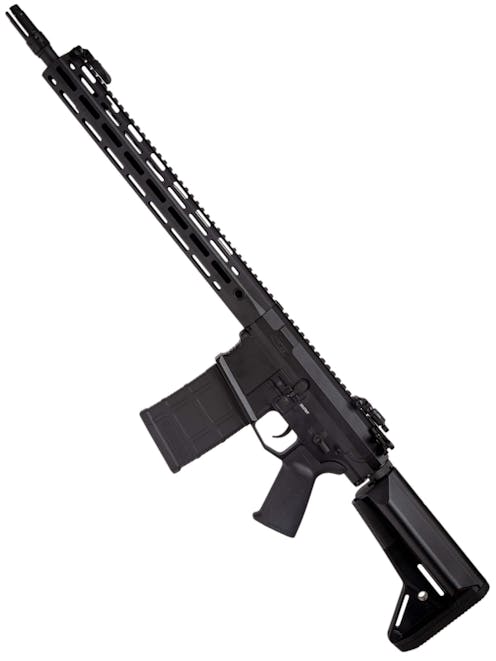

CYMA CM.098A SR25 AEG Platinum Edition

CYMA
Code: …
8,459.00 Kč
  • MOSFET Inside
  • Microswitch Trigger
  • Quick Change Spring

A well built and well thought out Airsoft Electric replica of the AR-10 platform, which offers tough construction and a wealth of top-tier features such as a Quick Change Spring, Microswitch Trigger, MOSFET and other high-quality internals to make this perfect for beginners and experts alike.

Full description

Help
Size guide

Description

The CM.098A Platinum Edition is another fantastic offering from CYMA which represents amazing value for money, coupled with quality internal and external construction which is suitable for both beginners and seasoned players looking for something extra special. It is a convincing replica of the AR-10 platform, which is a 7.62mm Receiver M4 platform rifle.

The rifle is almost completely made from Aluminium externally, with the exception of a high density Polymer Pistol Grip and Stock, which look and feel amazing. The free-floating outer barrel assembly features an AAC style Flash Hider at the end which can accept Quick Release Suppressors, but can also be unscrewed to reveal a 14mm CCW Thread for standard Airsoft Suppressors. The 14.5" Handguard is an M-LOK design which can accept Rail Adaptors or M-LOK compatible accessories.

The top of the Handguard has a 20mm rail which runs all the way to the rear of the Receiver and comes with a set of Flip Up Ironsights installed out of the box. The Receiver is a 7.62mm design, featuring an Ambidextrous Fire Selector, which is suitable for both left and right-handed players. Pull back the charging handle at the rear to reveal a Rotary Hop Adjustment Wheel inside the dust cover.

The Mock Bolt will lock to the rear and can be released by pressing the Bolt Release Button on the nearside of the Receiver. The rear of the Receiver features an Ambidextrous Sling Plate which can accept Slings from either side of the gun, improving its usefulness for left-handed players. The Sliding Stock at the rear of the gun is where your Battery should be installed, and houses a Deans connector. The Battery Compartment is easily accessed by pulling down the latch and opening the Butt Pad.

Internally, this Airsoft Electric Gun has a wealth of up-rated goodies which make the replica excellent value for money. The inner barrel is a 400mm 6.03mm precision barrel, the reinforced V2 gearbox features a full Steel teeth Polycarbonate Piston, CNC Machined Steel Gear Set (13:1) 8mm bearings, CNC Machined Aluminium Silent Cylinder and Piston Head, Bearing Spring Guide and a High Torque Motor.

The Gearbox is a Quick Change Spring design for easy power changes, and the combined MOSFET and Microswitch Trigger make for an excellent Trigger Pull and user experience, with features such as low-voltage cut-off to prevent locking of the gears, a common fault with other brand SR-25 rifles.

Included in the box is a 130rnd 7.62x51mm style magazine, which is a Mid design that requires BBs to be speed loaded in from the top. If you're looking for a .308 AR platform rifle, and don't want to have to mess around with upgrades out of the box then the CM.098A Platinum Edition is a solid choice, regardless of whether you're new to the sport or a seasoned pro looking for the next best thing.

Features

  • .308 AR Platform Replica
  • Airsoft Electric Gun
  • Safe / Semi / Full Auto
  • Free Float Outer Barrel
  • MOSFET Inside
  • Microswitch Trigger
  • Quick Change Spring
  • 14.5" M-LOK Handguard
  • Full Length Top 20mm Rail
  • AAC Style Flash Hider
  • 14mm CCW Thread
  • .308 Receiver
  • Ambidextrous Fire Selector
  • Functional Mock Bolt Release
  • Flip Up Ironsights
  • Ambidextrous Sling Plate
  • Six Position Sliding Crane Stock
  • Rear Wired / Deans Connector
  • Easy Access Battery Compartment
  • Rubber Butt Pad
  • 500rnd Polymer High Cap Mag
  • 400mm 6.03mm Precision Inner Barrel
  • Steel Teeth Polycarbonate Piston
  • CNC Machined Steel Gears
  • 8mm Bearings
  • CNC Aluminium Silent Cylinder Head
  • CNC Aluminium Silent Piston Head
  • Spring Guide w/ Bearings
  • High Torque Motor

Package Includes

  • CYMA CM.098A Platinum Edition
  • 130rnd Mid Cap Magazine

Special Instructions

Please note, the QD sling sockets on this rifle are non functional, and are included for aesthetics only. Some QD sling swivels may work, but we advise that you don't use these QD sockets as there is a risk the swivel could slide free from the socket inadvertently.

The externals of the replica are metal where they would be on the real world gun. This includes things like the outer barrel, handguard, and receiver. If a real world gun has polymer parts then the gun will still be marked as full metal externals, examples of this would be an M4, where the Stock and Pistol grip are always made from Polymer.

Specification

General

Weapon Construction External
 Weapon Type
Assault Rifle
Over 18 Only Icon
 Over 18
Yes
Icon UKARA - United Kingdom Airsoft Retailer Association
 Defence / UKARA Required
Yes, No,
FPS Icon
 FPS (Feet Per Second), using 0.20g BB
Approx. 315fps ± 10%, using 0.20g BB
Site Legal Icon
 Site Legal, using 0.20g BB
Yes
Package
 Included Items
Magazine
Skill Level Icon
 User Skill Level
Starter
Patrol Base - Warning Icon
 Warnings
Li-Po - Never Leave Charging Unattended
Li-Po - Only Use Approved Chargers
Li-Po - Charge in a Fire Safe Area

Weight and Dimension

Weight KG Icon
 Weight (KG)
Approx. 3.3kg
Weapon Length Collapsed
 Length (Collapsed)
98cm
Weapon Length Extended
 Length (Extended)
107cm

Construction

Colour Wheel Greyscale
 Primary Colour
Black
Construction Icon
 Construction
Aluminium outer barrel assembly, handguard, receiver, buffer tube and trim. Polymer pistol grip and stock.
Weapon Construction External
 External Construction
Polymer
Alloy
Aluminium
Gearbox Icon
 Internal Construction
Polymer
Alloy
Aluminium
Steel

Weapon Specific

Power Source Icon
 Powered By
Electric
Blowback Icon
 Blowback
None
Weapon Platform
AR-10
Magazine Style Icon
 Magazine Style
7.62 STANAG, AR .308,
Fire Select Icon
 Fire Selector
PatrolBase | Fire Select Safe
 Safe
Patrol Base | Fire Select - Semi Automatic
 Semi Automatic
Patrol Base | Full Automatic
 Full Automatic
Weapon Safety Features Icon
 Safety Features
Trigger Lock
Shooter Configuration Icon
 Shooter Configuration
Right Handed
Weapon Configuration Icon
 Weapon Configuration
Standard
Weapon Scale Icon
 Weapon Scale
1:1
Suggested BB Weight
0.25g

Hop-Up

Hop-Up Unit Icon
 Hop-Up Unit
Yes
Hop-Up Unit Adjuster Icon
 Hop-Up Adjuster
Rotary
Hop-Up Unit Location Icon
 Hop-Up Location
Behind mock bolt when charging handle to the rear

Furniture

Weapon Furniture Icon
 Furniture
  • Railed Handguard
  • Railed Receiver
  • Ambidextrous Fire Selector
  • Sliding Stock
  • Flip-Up Ironsights
  • Threaded Outer Barrel
  • Ambidextrous Sling Plate
Rail System Icon
 Rail System
20mm RIS / RAS , MLOK Rail System,
Icon Stock Positions
 Stock Setting
Sliding
Weapon Length Extended
 Stock Positions
6 Position
Sight Type Icon
 Sight Type
Iron Sights
Sling Plate Icon
 Sling Options
Buffer Plate

Barrel

Icon Thread Type
 Outer Barrel Thread Type
Male
Icon Thread Direction
 Outer Barrel Thread Direction
CCW (Counter Clockwise)
Outer Barrel Thread Size
14mm
Inner Barrel Diameter
6.03mm
Inner Barrel Length
500mm

Magazine Specific

Magazine Type
AEG, High Capacity,
Magazine BB Capacity
Approx. 500 Rounds
Magazine BB Fill Method
Fill Window
Magazine BB Fill Location
Top

Electric Gun Specific Information

Gearbox
Wiring Icon
 Gearbox Wiring
Rear Wired
Spring Change Icon
 Gearbox Quick Change Spring
Yes
Digital Trigger Icon
 Gearbox Electronic Trigger
Yes
Battery Specific
Battery Connector
Patrol Base | Icon | Deans
 Deans
Compatible Battery
Compatible Battery Type
Li-Po
Compatible Battery Configuration
Crane
Compatible Battery Voltage
11.1v

Product Testing Data

Notepad Icon
 Test Description
315 FPS +/- 10%
Notepad Icon
 Tested Using
ASG Blaster 0.20g BBs
Notepad Icon
 Test Date
24/02/21

Detailed Power Tests

FPS
FPS, using 0.20g BB
Approx. 315fps, using 0.20g BB

Size guide

Joule Charts

Special Instructions

These table can be used as a reference to see if the BB weight you are using will be over acceptable Joulage limits at some Airsoft Sites in the UK. To check if the weight can be used chrono your weapon using the BB you intend to use, and then compare it to the chart.

FPS, Power and Joule Limits can vary from site to site, so please get in touch with where you're going to play with in advance to avoid disappointment.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, with a 350fps limit for Automatic Replicas, 400fps for Semi-Automatic Replicas, and 500fps for Bolt Action Replicas.

Tap the tabs below to open the relevant chart for your replica.

Suggested limits are based on Joulage Limit rules used Halo Mill: Proving Grounds, and is the equivalent of 350fps, using 0.20g BB resulting in an upper limit of 1.14j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
325 0.98 1.23 1.37 1.47 1.57 1.77 1.96 2.11 2.21 2.45
328 1.00 1.25 1.40 1.50 1.60 1.80 2.00 2.15 2.25 2.50
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
335 1.04 1.30 1.46 1.56 1.67 1.88 2.09 2.24 2.35 2.61
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
345 1.11 1.38 1.55 1.66 1.77 1.99 2.21 2.38 2.49 2.76
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
355 1.17 1.46 1.64 1.76 1.87 2.11 2.34 2.52 2.63 2.93
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 400fps, using 0.20g BB resulting in an upper limit of 1.49j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90

Suggested limits are based on Joulage Limit rules used at Halo Mill: Proving Grounds, and is the equivalent of 500fps, using 0.20g BB resulting in an upper limit of 2.32j.

Velocity BB Weight (Grams)
FPS 0.20 0.25 0.28 0.30 0.32 0.36 0.40 0.43 0.45 0.50
250 0.58 0.73 0.81 0.87 0.93 1.05 1.16 1.25 1.31 1.45
260 0.63 0.79 0.88 0.94 1.00 1.13 1.26 1.35 1.41 1.57
270 0.68 0.85 0.95 1.02 1.08 1.22 1.35 1.46 1.52 1.69
280 0.73 0.91 1.02 1.09 1.17 1.31 1.46 1.57 1.64 1.82
290 0.78 0.98 1.09 1.17 1.25 1.41 1.56 1.68 1.76 1.95
300 0.84 1.05 1.17 1.25 1.34 1.51 1.67 1.80 1.88 2.09
310 0.89 1.12 1.25 1.34 1.43 1.61 1.79 1.92 2.01 2.23
320 0.95 1.19 1.33 1.43 1.52 1.71 1.90 2.05 2.14 2.38
330 1.01 1.26 1.42 1.52 1.62 1.82 2.02 2.18 2.28 2.53
340 1.07 1.34 1.50 1.61 1.72 1.93 2.15 2.31 2.42 2.68
350 1.14 1.42 1.59 1.71 1.82 2.05 2.28 2.45 2.56 2.85
360 1.20 1.51 1.69 1.81 1.93 2.17 2.41 2.59 2.71 3.01
370 1.27 1.59 1.78 1.91 2.03 2.29 2.54 2.73 2.86 3.18
380 1.34 1.68 1.88 2.01 2.15 2.41 2.68 2.88 3.02 3.35
390 1.41 1.77 1.98 2.12 2.26 2.54 2.83 3.04 3.18 3.53
400 1.49 1.86 2.08 2.23 2.38 2.68 2.97 3.20 3.34 3.72
410 1.56 1.95 2.19 2.34 2.50 2.81 3.12 3.36 3.51 3.90
420 1.64 2.05 2.29 2.46 2.62 2.95 3.28 3.52 3.69 4.10
430 1.72 2.15 2.40 2.58 2.75 3.09 3.44 3.69 3.86 4.29
440 1.80 2.25 2.52 2.70 2.88 3.24 3.60 3.87 4.05 4.50
450 1.88 2.35 2.63 2.82 3.01 3.39 3.76 4.04 4.23 4.70
460 1.97 2.46 2.75 2.95 3.15 3.54 3.93 4.23 4.42 4.91
470 2.05 2.57 2.87 3.08 3.28 3.69 4.10 4.41 4.62 5.13
480 2.14 2.68 3.00 3.21 3.42 3.85 4.28 4.60 4.82 5.35
490 2.23 2.79 3.12 3.35 3.57 4.02 4.46 4.80 5.02 5.58
500 2.32 2.90 3.25 3.48 3.72 4.18 4.65 4.99 5.23 5.81
510 2.42 3.02 3.38 3.62 3.87 4.35 4.83 5.20 5.44 6.04
